SkyWave IDP-782 - Figure 41: Connect the Satellite Antenna; Figure 42: Connect the Cellular Antenna

IDP-782 - Hardware Guide

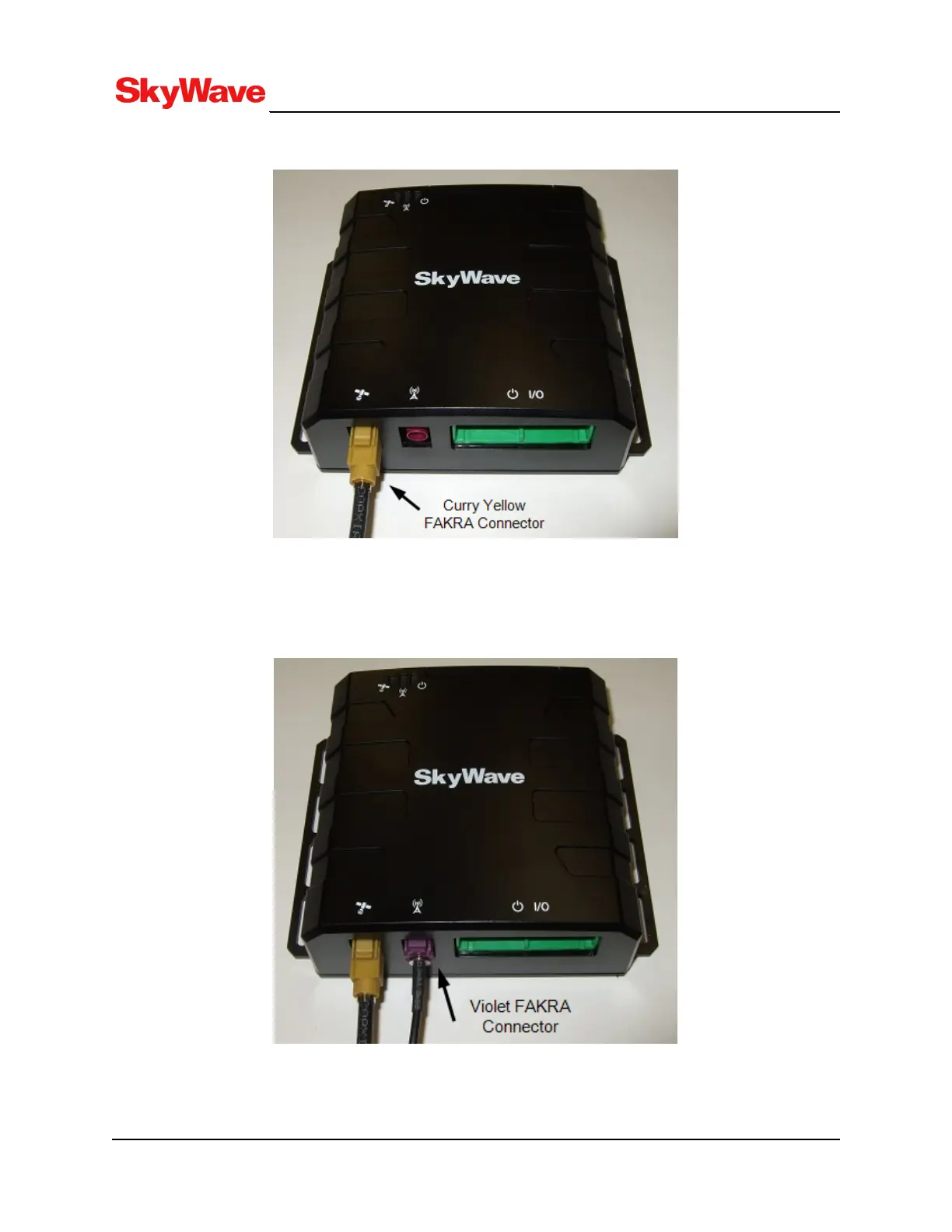

Figure 41: Connect the Satellite Antenna
2. Connect the cellular antenna (Figure 42) to the violet colored FAKRA connector on the terminal by
pushing until you hear a click.
Figure 42: Connect the Cellular Antenna
3. Connect the power and I/O cable to the terminal by pushing until you hear a click.
