IDP-782 - Hardware Guide

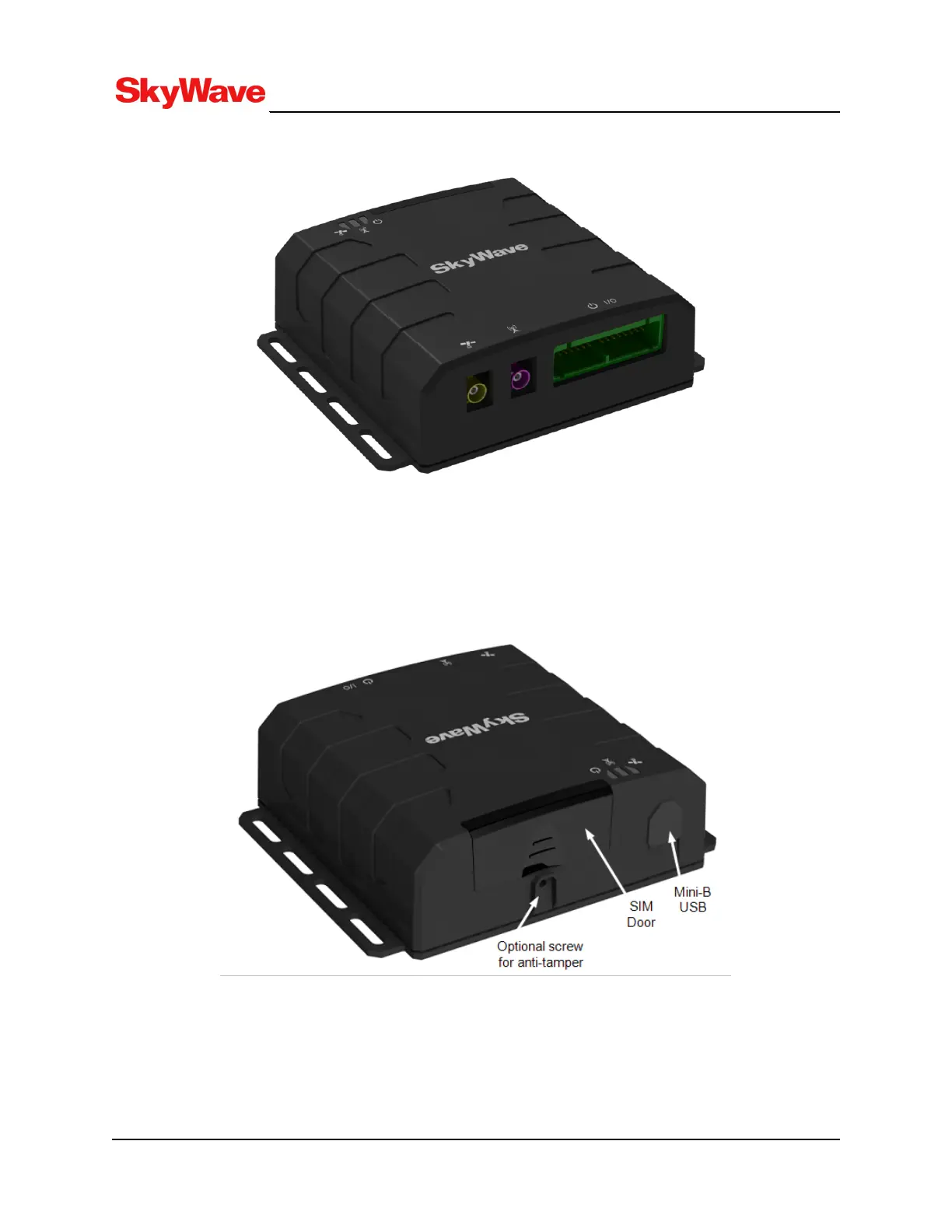

Figure 3: Connector Positioning
An anti-tamper SIM door on the back side of the unit (Figure 4) provides easy access to the two SIM card
holders. A mini-B USB connector located next to the SIM door provides a serial port for programming and
debugging.
Figure 4: Dual SIM Access Door
T213, Version 02
19
