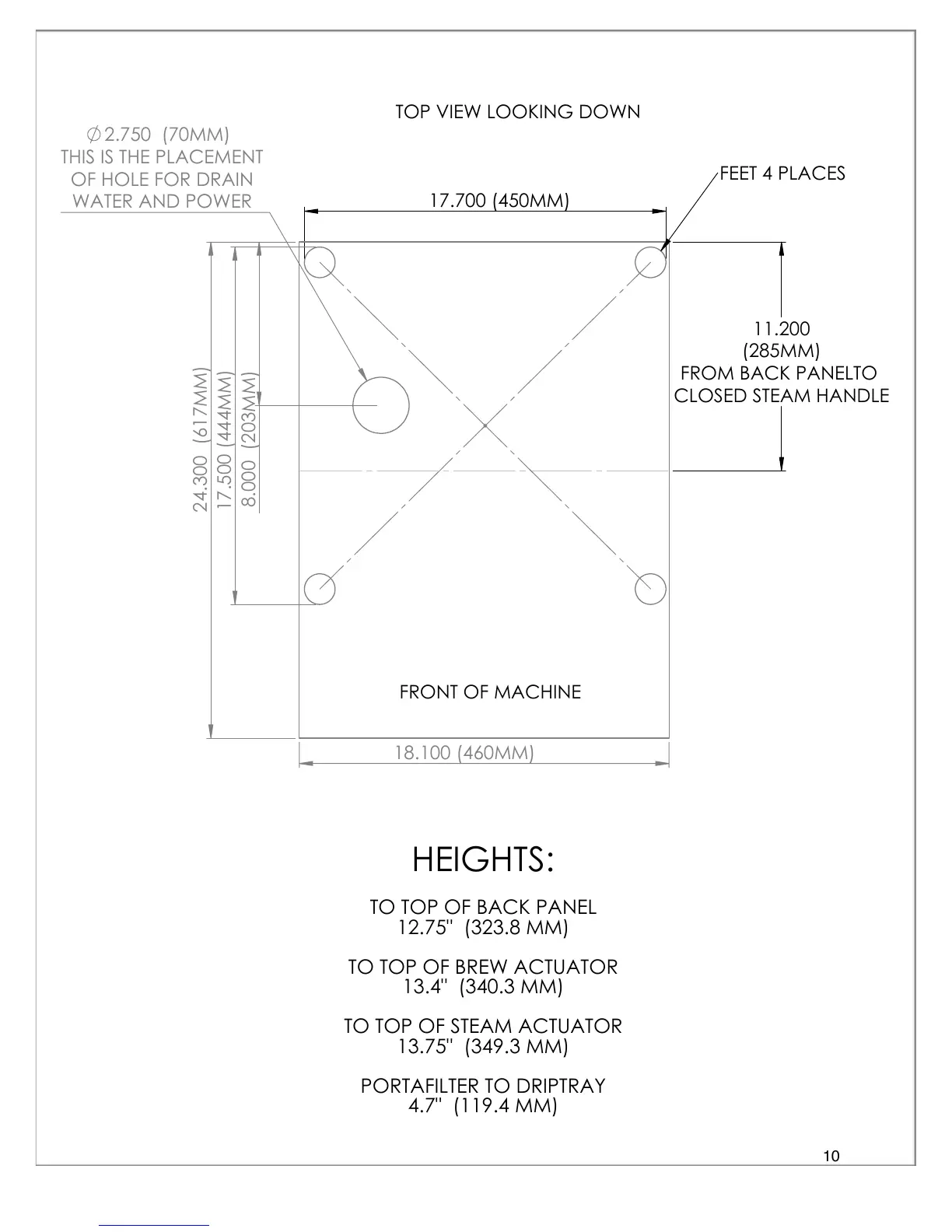

Slayer Single Group - Top View Looking down; Heights

10
2.750 (70MM)
THIS IS THE PLACEMENT
OF HOLE FOR DRAIN
WATER AND POWER
8.000 (203MM)
17.500 (444MM)
24.300 (617MM)
18.100 (460MM)
17.700 (450MM)
11.200
(285MM)
FROM BACK PANELTO
CLOSED STEAM HANDLE
FEET 4 PLACES
FRONT OF MACHINE
TOP VIEW LOOKING DOWN
HEIGHTS:
TO TOP OF BACK PANEL
12.75" (323.8 MM)
TO TOP OF BREW ACTUATOR
13.4" (340.3 MM)
TO TOP OF STEAM ACTUATOR
13.75" (349.3 MM)
PORTAFILTER TO DRIPTRAY
4.7" (119.4 MM)
