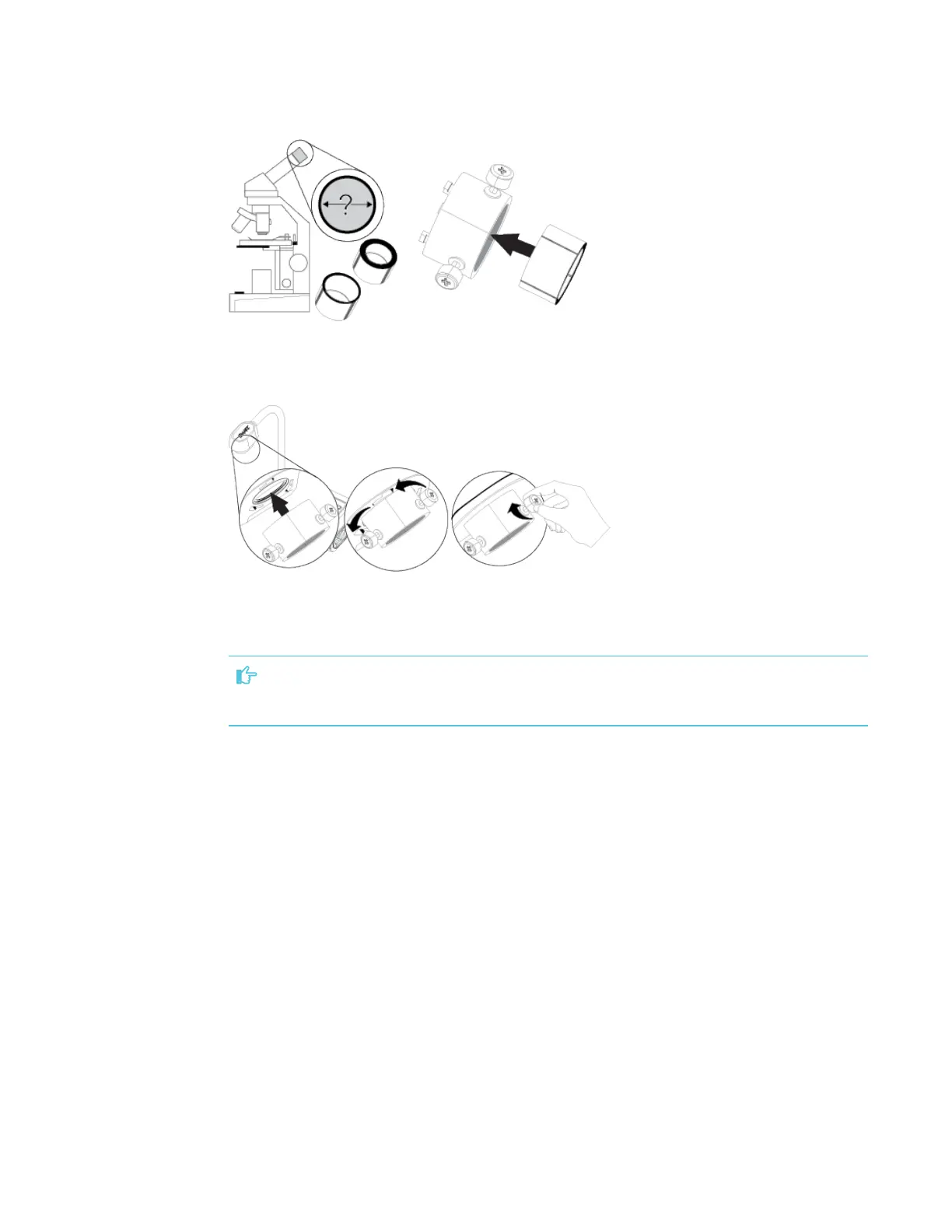

2. Attach the microscope adapter to the microscope eyepiece.
3. Tighten the three bolts until the adapter secures the eyepiece.
4. Attach the microscope adapter to the camera head.
5. Connect the document camera to the microscope.
IMPORTANT
Make sure the arrow on the camera head and microscope adapter are on the same side.
6. Turn the microscope adapter counterclockwise to line up the arrows and lock the microscope
adapter in place.
