Extended Settings and Functions
smart CX01 125

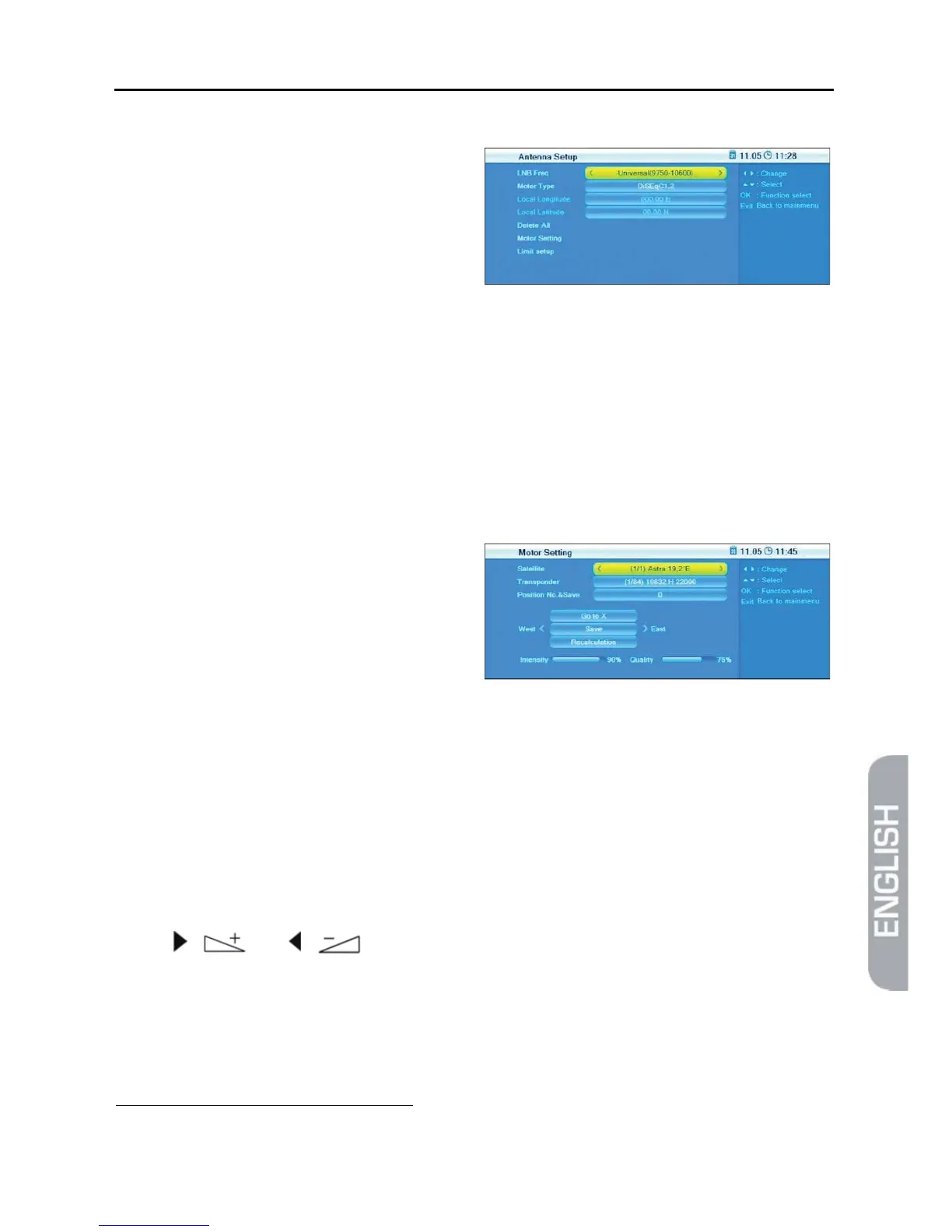

7.2.3.2 Motor Antenna
¾ At LNB Freq, select the value corre-
sponding to the used LNB. Default
value is a universal LNB with 9750 -
10600 MHz.
¾ At Motor Type, select the used control signal technology. Select between DiS-
EqC 1.2 and USALS
11
(depending on the used motor). The submenu item Motor
Setting states different settings depending on your previous selection.
7.2.3.2.1 DiSEqC 1.2
¾ Select Delete All to delete all previously set satellite positions.
¾ Select Motor Setting and press OK to open the submenu Motor Setting:
To set various antenna positions:
1. Select Satellite to select the sat-
ellite to which the following set-
tings should apply.
2. Select Transponder to select the transponder that should be decisive for
the antenna position (usually the transponder that is used to send your pre-
ferred channel).
3. Select Pos No. & Save to determine a position number at which the respec-
tive satellite (i.e. the respective antenna position) should be saved.
4. Select Go to X to call a position from which you want to make the selection
(the value Reference is the zero position).
5. Select Save and turn the antenna to the west or east by using the keys
/ and / . Search for maximum values of signal strength and
signal quality (are displayed at the lower screen edge).
6. Then press OK to save the found position. A query will be displayed.
7. Confirm change of position by pressing Yes or discard such change by press-
ing No.
11
As compared to 1.0 and 1.1, DiSEqC1.2 offers the additional possibility of rotor control, USALS = Uni-
versal Satellites Automatic Location System (particularly simple motor antenna control)
