SMC Networks JXC91 User Manual

-11-
No.SFOD-OMT0006-F
(8) Setup of the operation parameters
Set up the operation pattern (step data, basic parameters and return to origin parameters) to specify
the target position, speed, etc. by using a PC (with the controller setting software) or the teaching
box.

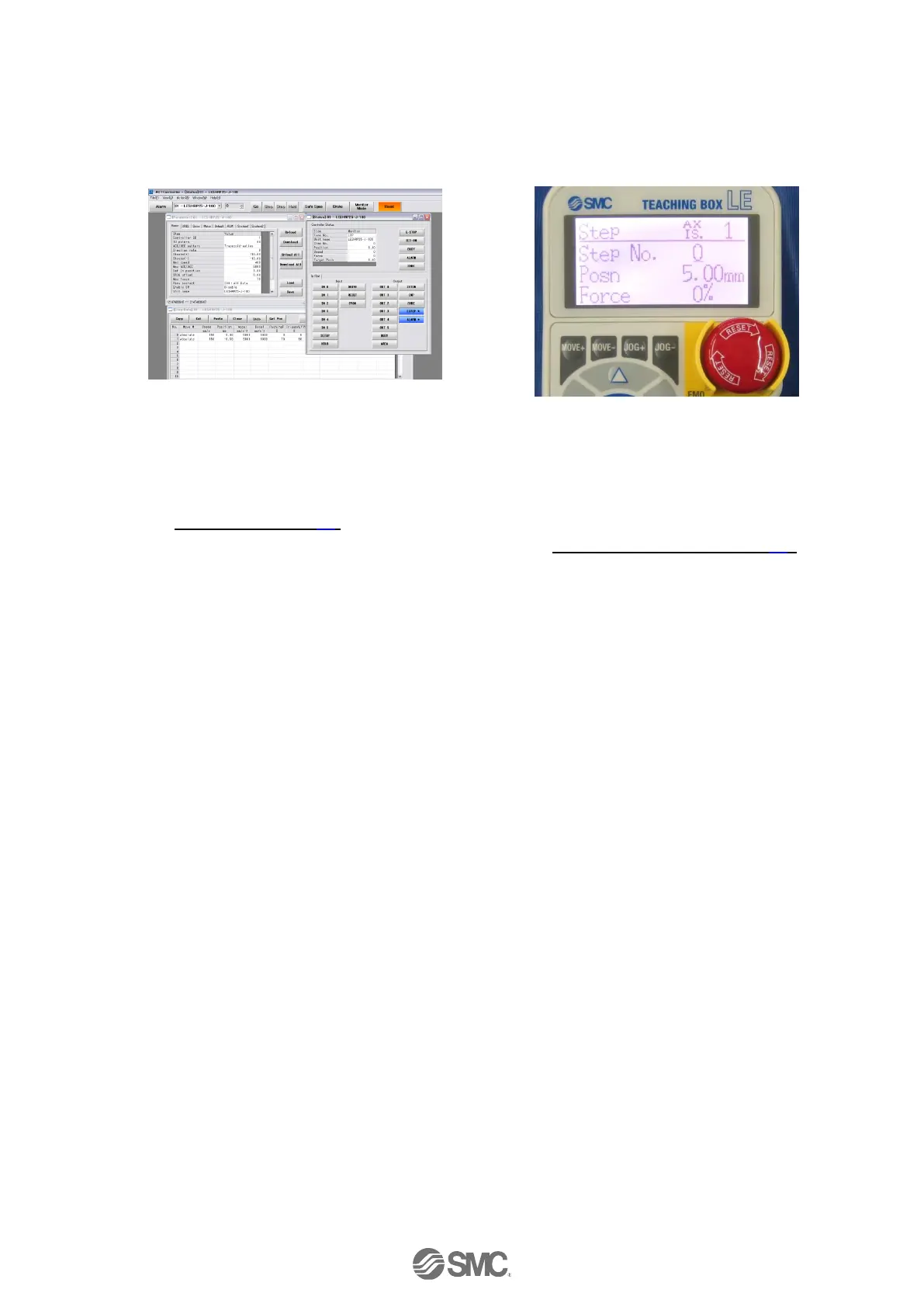

■PC (Normal mode)
■Teaching box
Please refer to the manuals of the controller setting software or the teaching box for how to set up the
operation pattern.
(9) Test run
Refer to
9. Memory map (P.32)
for the assignment of the memory.
Input signals from PLC for checking the operation. Refer to
13. Operation Instruction (P.52)
for
the operation.
