•Power supply plug (Included)
<Applicable wire size>
AWG20 (0.5mm
2
)
Controller power
supply
24VDC
●Controller
communication cable
Part No:JXC-W2A-C
PC
•USB cable
(A- miniB type)
Part No:LEC-W2-U
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/ s
動作中
アラー ム
モニタ
設定
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/ s
動作中
アラー ム
モニタ
設定
•Conversion cable
Part No.: P5062-5

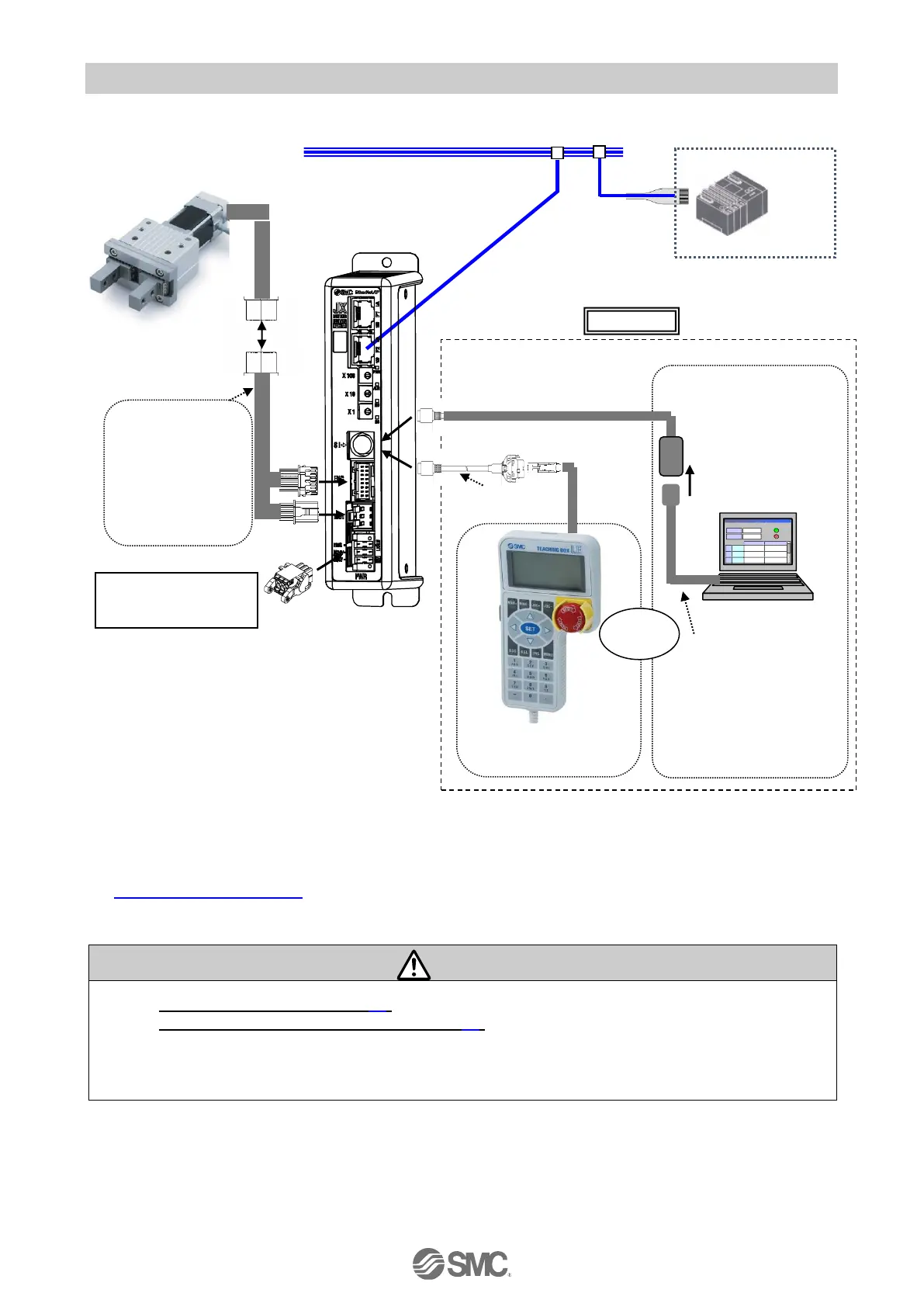

2.3 Product configuration
An example of the controller structure is shown below.
1. These items are included when ordered using the part number for an actuator set.

2. Latest version of the controller setting software must be used.
Please download the controller configuration software from the SMC website
http://www.smcworld.com/

3. Optional products.
Warning
Refer to 5. External Connections (P.23) for wiring.
Refer to 16. Precautions for wiring and cable (P.68) when handling the wiring and cables.
The Communication cable must be connected to a PC using a USB cable through a conversion unit.
Do not connect the teaching box to a PC, as this may cause damage to the personal computer.
1
To P1, P2
Electric actuator
To PWR
To MOT
To ENC
•Controller
•Actuator cable
(Robotic type cable)
Model number:
•LE-CP-□-□
(Robotic type cable)
•LE-CP-□-□-S
(Standard cable)
1
EtherNet/IP
TM
•Teaching box
(3m cable is provided.)
Part No.: LEC-T1-3□G□
(Option)
or
2 3
To SI
PLC
