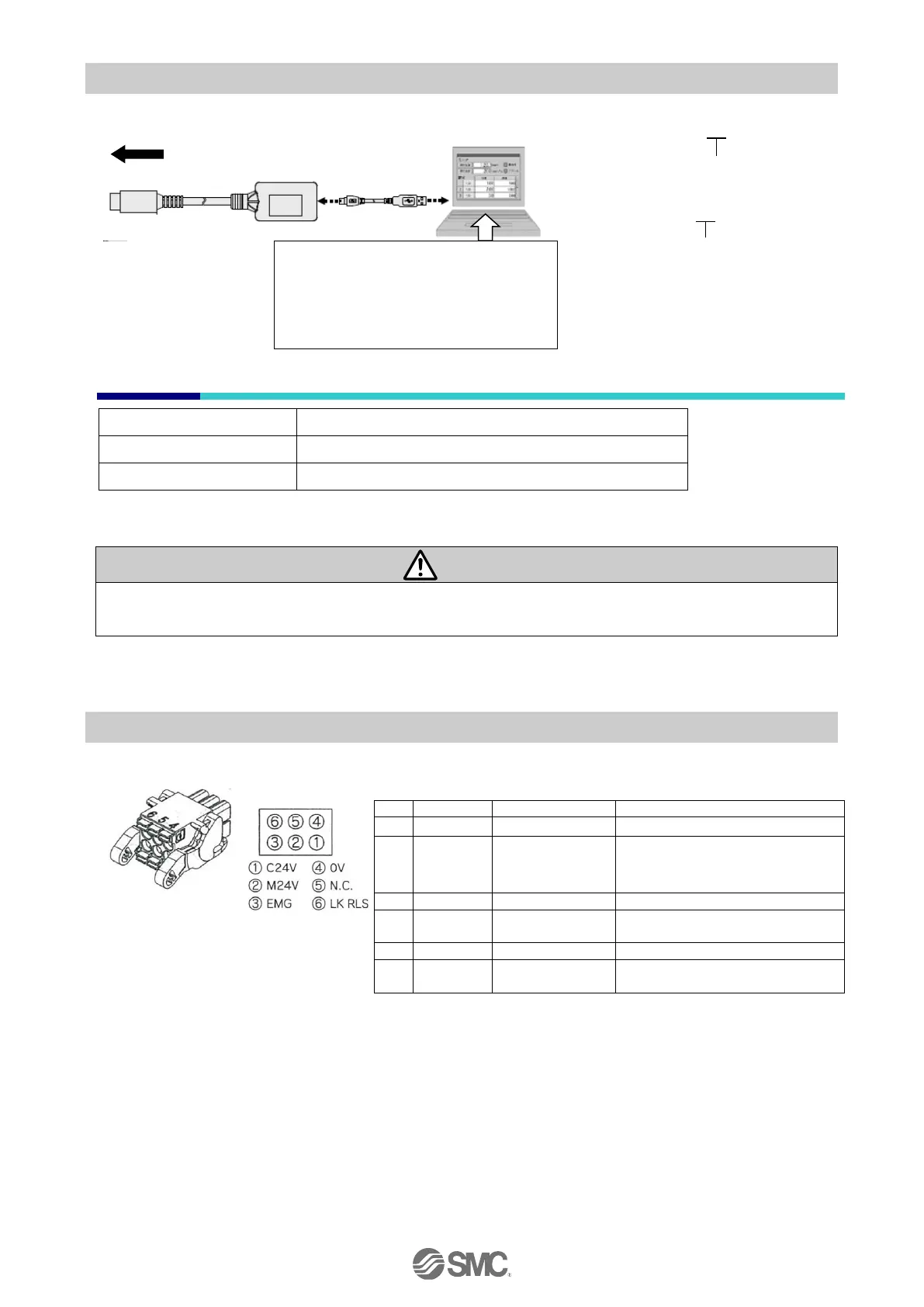

14.5 Controller Communication cable
To controller PC JXCW2AC
Communication cable
LECW2U
USB cable
Operating environment
OS
Windows®7,Windows®8.1,Windows®10,Windows®11
Communication interface
USB1.1 or USB2.0 port
Display
1024×768 or more
Windows7, Windows8.1, Windows10, and Windows11 are registered trademarks of United States Microsoft
Corporation.
Caution
The latest version of the controller setting software must be used.
Upgrade software can be downloaded from SMC website. http://www.smcworld.com/
14.6 Power supply plug
JXC-CPW
Detail of Power supply plug
No.
Terminal
Function
Functional explanation
1
C24V
Power supply (+)
The positive control power.
2
M24V
Motor power (+)
The positive power for the
actuator motor to be supplied
via the controller.
3
EMG
Stop (+)
The positive power for Stop signal
4
0V
Common power (-)
The negative common power for
M24V, C24V, EMG and LK RLS.
5
-
NC
6
LK RLS
Unlocking (+)
The positive power for lock
release.
Communication cable
USB cable
• Controller Configuration Software
• USB driver
Please download from SMC website.
https://www.smcworld.com
