SMC Networks JXC91 User Manual

-56-
No.SFOD-OMT0006-F
[7] Area output

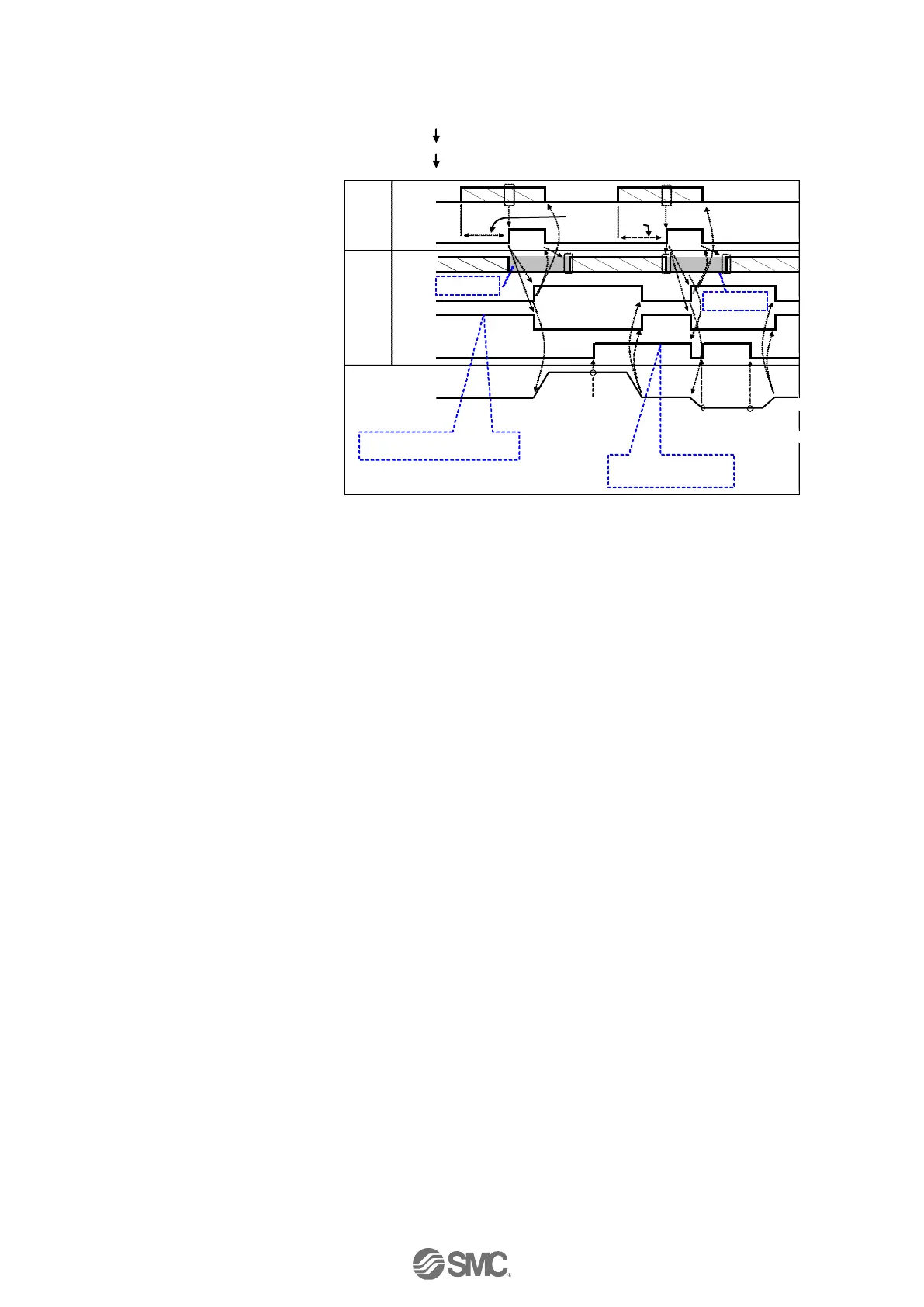

- Procedure - Timing chart
●Step data No.1 operation
(1) Input step data No.
(“IN0” to “IN5”)
(2) Turn "DRIVE" ON.
→ Receive the step data no.1
(from “IN0” to “IN5”).
(3) "BUSY" turns ON.
(The actuator starts the
operation.)
"INP" turns OFF.
 After "BUSY" turns OFF, if
the "DRIVE" is turned OFF,
the step data No.1 ("OUT0"
to "OUT5") will be output.
(4) "AREA" of step data No.1 turns
ON. (at 150mm from the origin
point)
(5) "BUSY" turns OFF.
(The actuator stops.)
"INP" turns ON.
●Step data No.2 operation
(6) Input step data No. ("IN0" to "IN5")
(7) Turn ON "DRIVE".
→ Read step data No. 2 ("IN0" to "IN5")
(8) "AREA" turns OFF.
"BUSY" turns ON. (The actuator starts the operation.)
"INP" turns OFF.
 After "BUSY" turns OFF, if "DRIVE" turns OFF, the step data No.2 ("OUT0" to "OUT5") will be
output.
(9) "AREA" of step data No.2 turns ON. (at 170mm from the origin point)
(10) "AREA" of step data No.2 turns OFF. (at 130mm from the origin point)
(11) "BUSY" turns OFF. (The actuator stops.)
"INP" turns ON.
The initial position: 50mm
Operation of Step Data No.1: Position: 200mm AREA1 to AREA 2: 150 to 250mm
Operation of Step Data No.2: Position: 100mm AREA 1 to AREA 2: 130 to 170mm
IN0 to 5
DRIVE
OUT0 to 5
BUSY
INP
AREA
50mm
200mm
100mm
170mm
130mm
Operation of
Step Data No.1
Operation of
Step Data No.2
Input
signal
Output
signal
If the current position is within the In
position range, the INP signal is ON.
Otherwise, the signal is OFF
150mm
Speed
0mm/s
ON
OFF
ON
OFF
If the current position is inside of 1, and 2
area scope for step data., the AREA signal
is ON. Otherwise, the signal is OFF
-
-
-
-
-
-
-
-
-
Don’t care
Don’t care
More than twice
the communication
cycle time
