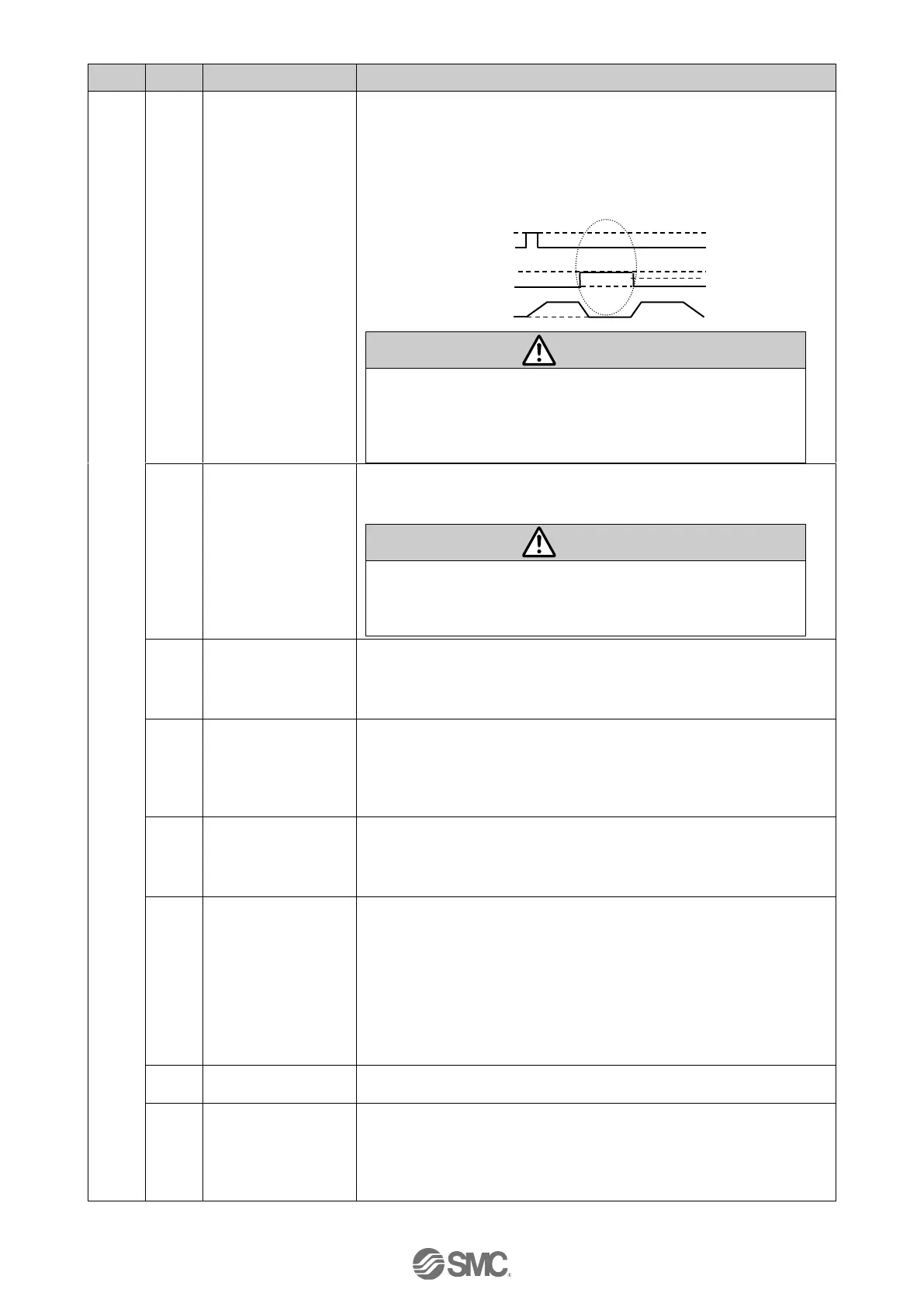

-38-
No.SFOD-OMT0006-F
Word
Bit
Signal name
Description
0
8
HOLD
If “HOLD” is turned ON during operation, the speed decreases at
maximum deceleration set in the basic parameters until the
actuator stops. The remaining stroke will be on hold as long as
“HOLD” is ON and when “HOLD” is turned OFF, the actuator
restarts and travels for the remaining stroke.
- When “DRIVE” or “SETUP” is ON
Caution
(1) Do not turn on SETUP, DRIVE, JOG+/JOG- or
Start flag when HOLD is ON. The actuator may
make unexpected movement.
(2) The signals are rendered invalid whilst “HOLD” is in
operation.
9
SVON
“SVON” signal turns the servo motor ON.
When “SVON” is ON, the servo motor will be turned ON. When it
is OFF, the servo motor will be turned OFF.
Caution
(1) When “SVON” is ON for the first time after supplying
power to the controller, the actuator moves several mm
to improve the control accuracy.
(2) When “SVON” is OFF, turn OFF DRIVE” and “SETUP”.
10
DRIVE
When “DRIVE” is turned ON, the system scans “IN0” to “IN5”
and starts the operation of the actuator. (6)
Then, when “DRIVEis turned OFF, the number of the active step
data will be output via the “OUT0 to “OUT5 signals.
11
RESET
“RESET” is a signal to reset the alarm and the operation.
After “RESET”, the speed decreases at maximum deceleration
of the basic parameter until the actuator stops.
INPand OUT0” to “OUT5 will be turned OFF (however, if the
actuator is stopped within the in-position range, “INP will turn ON).
12
SETUP
When SVRE” is ON, theSETUPoperation (return to origin
operation) will be performed. During the SETUP operation, BUSY”
will turn ON. After completion of the SETUP operation,SETON”
andINPwill turn ON.
13
JOG(-)
Jogging in the (-) direction.
The actuator moves when the signal is ON and stops when the
signal is OFF.
When the “FLGTH” (signal for switching Jogging and Inching) is
ON, movement towards the (-) side is made according to the
"JOG(-)" signal.
“INP” and OUT0” to “OUT5” are OFF during Jogging/Inching.
When Jogging/Inching is completed, “INP” will turn ON, but
“OUT0” to “OUT5” will remain OFF.
14
JOG(+)
Jogging in the (+) direction.
Operation is the same as “JOG(-)”. with "-" changed to "+"
15
FLGTH
FLGTH switches the function (Jogging and Inching) of Jogging
signal "JOG(-)" and "JOG(+)".
Inching starts when this signal is ON and when the Jogging
signal turns ON.
The Inching amount is set in the operation parameters.
6 Turn ON “DRIVE” when stopped. If ”DRIVE” is turned ON while operating, it may lead to unexpected operation.
On hold
Restart
DRIVE
or
SETUP
HOLD
Speed
ON
OFF
ON
OFF
