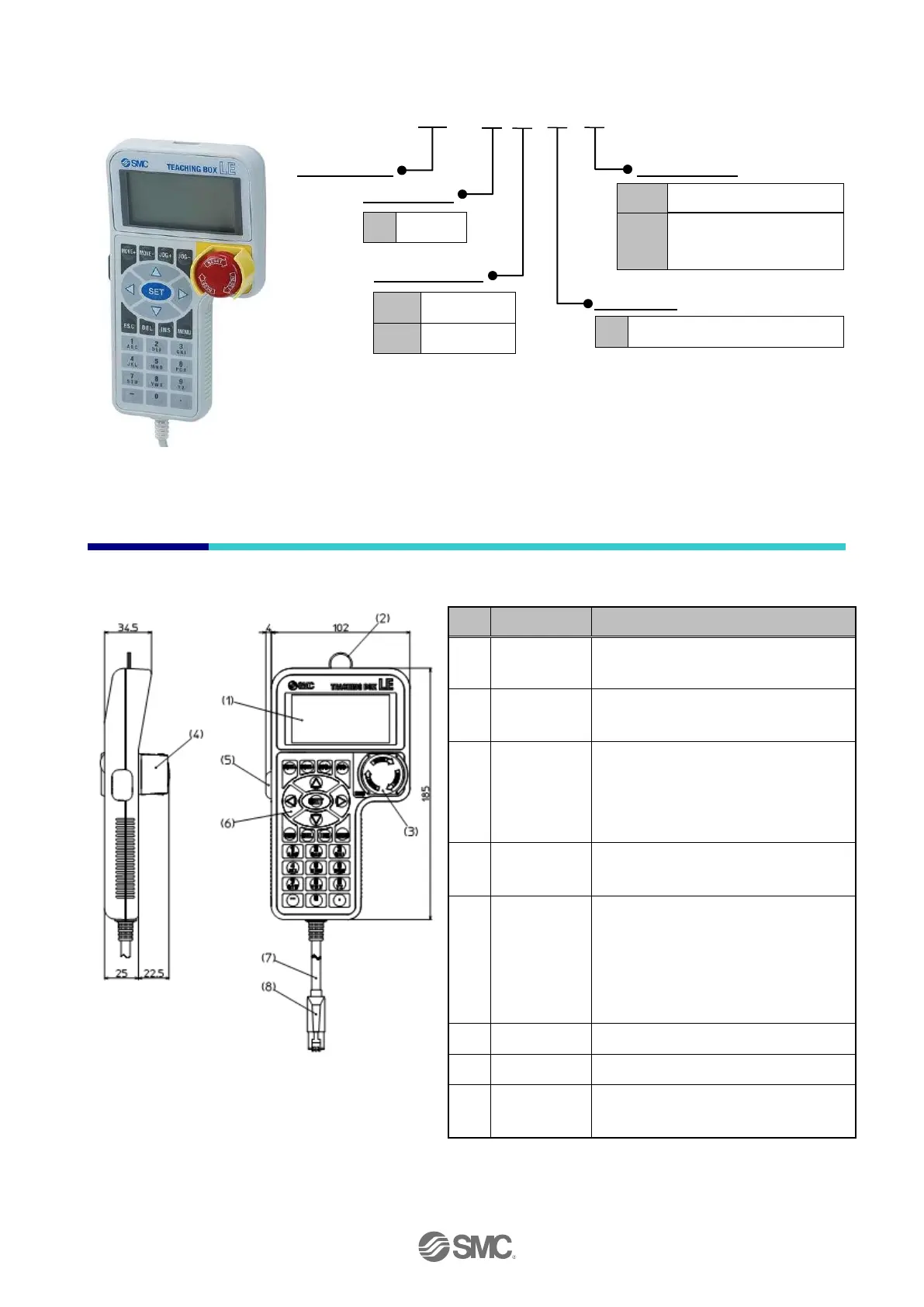

(7) Teaching box
LEC – T1 – 3 E G □
Teaching box Enable switch
Cable length
Initial language
Stop switch
Dimensions
No.
Name
Function
(1)
LCD
A screen ofliquid crystal display
(with backlight)
(2)
Ring
A ring for hanging the teaching
box.
(3)
Stop switch
When swich is pushed in, the
swich locks and stops.
The lock is released when it is
turned to the right.
(4)
Stop switch
guard
A guard for the stop guard
(5)
Enable
switch
(Option)
Prevent unintentional operation
(unexpected operation) of the Jog
test function.
Other functions such as data
change are not covered.
(6)
Key switch
Switch for each input
(7)
Cable
Length: 3 meaters
(8)
Connector
A connector connected to CN4 of
the controller
3m
3
Japanese
J
English
E
Equipped with stop switch
G
Equipped with
enableswitchchluded.
S
No enable switch
Nil
