- 13 -
Controller
Power supply plug
I/O cable

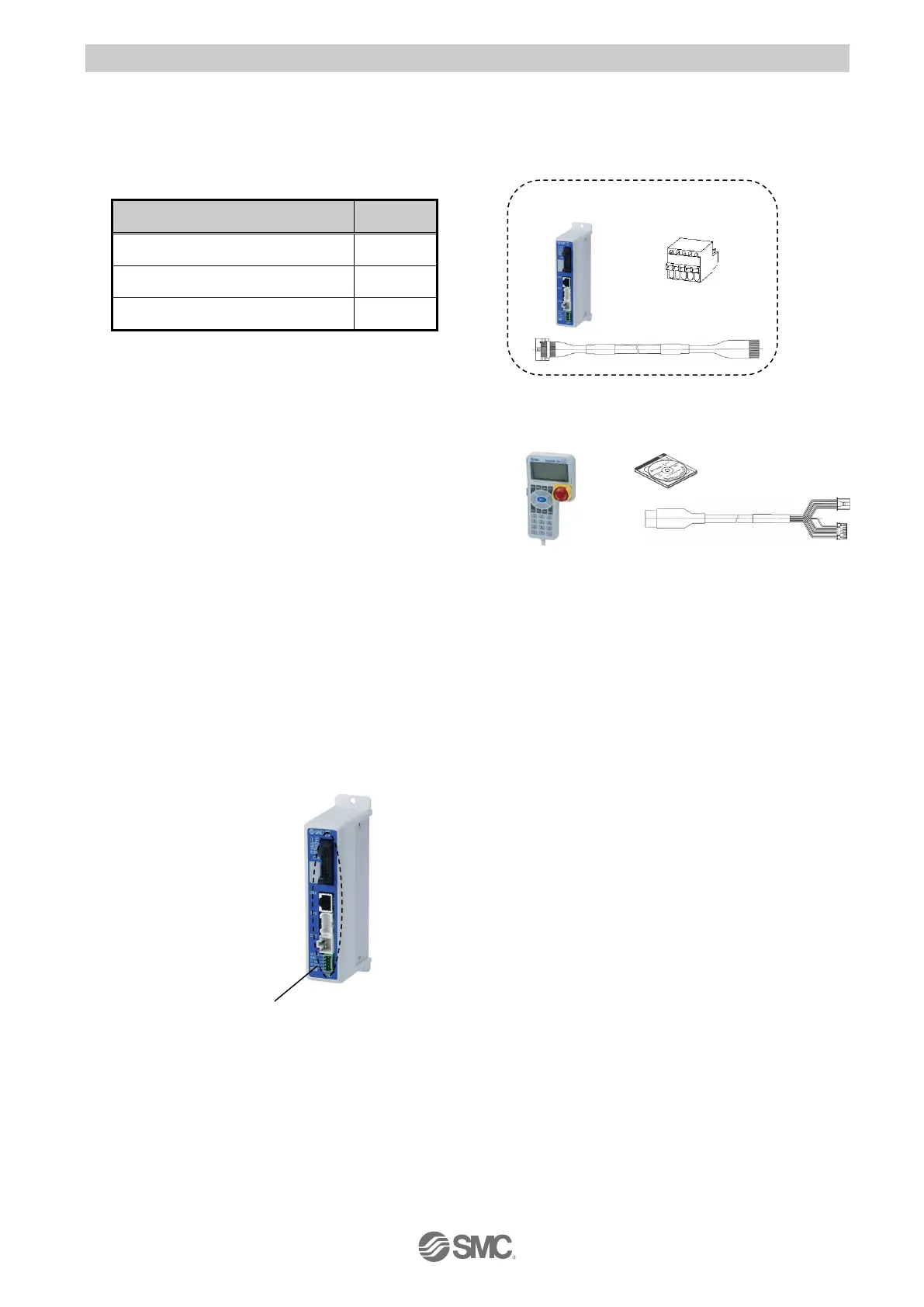

2.5 Startup Procedures
Be sure to check the procedure below before use.
(1) Confirmation of the package content
After unpacking everything, check the description on the label to identify the controller and the number
of accessories. If any parts are missing or damaged, please contact your distributor.
*1) Included in the package only when the I/O
cable length is specified.
󳙧
Option
󳙨
●Teaching box
●Controller setting kit
● Actuator cable
●I/O cable
(2) Installation
Please refer to the “3.4 How to install”
(3) Wiring and connection
Prepare the electric actuator and the cable.
Connect cables, etc. to the connector (CN1 to CN5) of the controller.
Please refer to the “4 External Wiring Diagram” for the wiring of the connectors.
Connector
Item
Quantity
Controller
(LECP6□□□-□)
1 unit
Power supply plug
(LEC-D1-1)
1 piece
I/O cable
(LEC-CN5-□)
*1)
1 piece
Actuator cable
Teaching box
Controller setting kit
