- 20 -
(The 24 VDC power supply and the power cable should be obtained separately.)

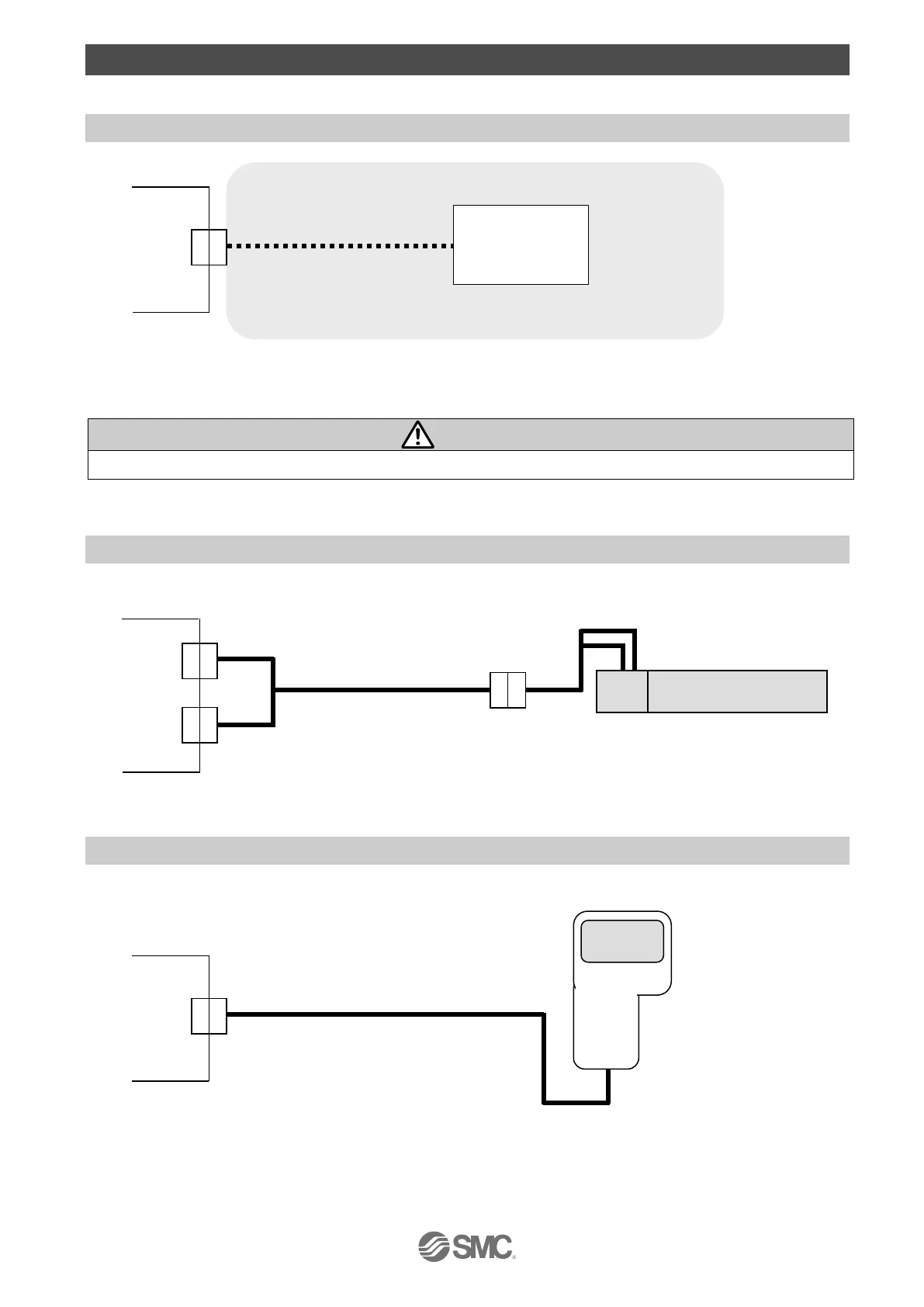

4. External Wiring Diagram
Examples of standard wiring are shown for each connector (CN1 to CN5) of the controller.
4.1 CN1: Power connector
Please refer to “5. CN1: Power supply plug for how to wire the CN1 connector.
Caution
The controller power supply (24 VDC) do not use the power supply of inrush current restraining type”.
4.2 CN2: Motor power connector and CN3: Encoder connector
Connect the controller and the electric actuator with the actuator cable (LE-CP--).
Controller
4.3 CN4: Serial I/O connector
(1) Connection with the teaching box
Controller
CN4
Actuator cable
CN2
CN3
Electric Actuator
Motor
Teaching box
(The 3m cable is provided.)
Controller
CN1
Controller power
supply 24 VDC
Power cable
