2. MACHINE INSTALLATION
2.1 WEIGHT AND DIMENSIONS OF THE PACKED MACHINE
2.2 WEIGHT AND DIMENSIONS OF THE MACHINE
2.3 TRANSPORT AND UNPACKING
SMIPACK S.p.A. in function of the means of transport and of the type of products to be shipped
utilizes packagings adequate to guarantee the integrity and preservation during transportation.
It is recommended to handle with great care the machine during transport and positioning.
The forwarder is responsible for every damage that may occur during transport. On the outside
of the packaging carton there are indications as to address, model and serial number. Check
the packing before throwing it away, making sure it does not contain any documents or machine
parts.
Unpack the unit making sure not to damage any exposed parts:
•(S440, S560, S560N and S560NA): remove the box 1 containing the trolley base.

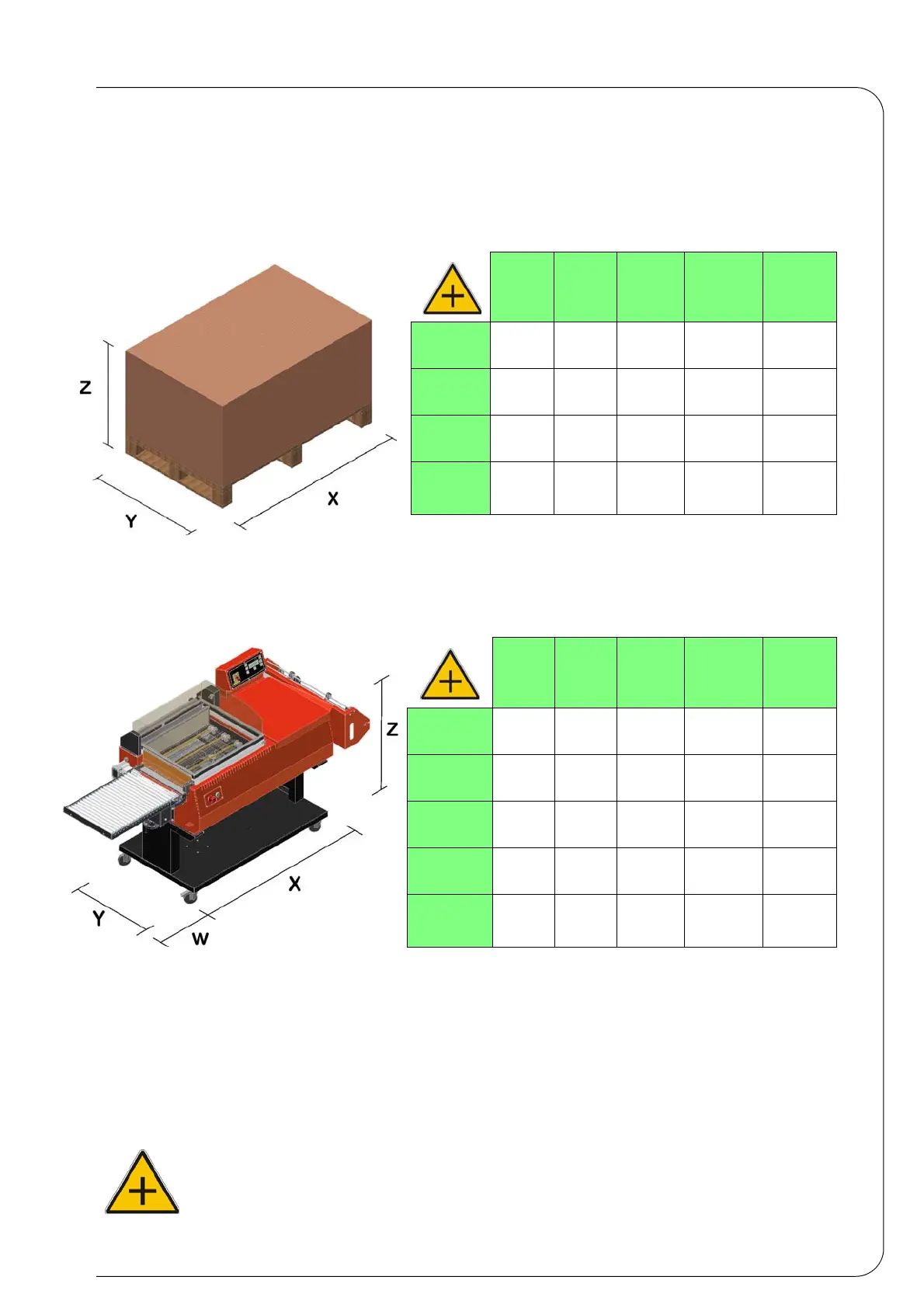

Fig. 2.1.1
S440 S560 S560N S560NA S870
X
1170
mm
1470
mm
1470
mm
1470
mm
2125
mm
Y
810
mm
950
mm
950
mm
950
mm
1080
mm
Z
725
mm
875
mm
875
mm
875
mm
1300
mm
WEIGHT
120 Kg 160 Kg 173 Kg 190 Kg 220 Kg
S440 S560 S560N S560NA S870
X
1230
mm
1425
mm
1520
mm
1520
mm
1900
mm
Y
68
mm
790
mm
790
mm
790
mm
1005
mm
Z
1030
mm
1090
mm
1090
mm
1090
mm
1190
mm
W
--
500
mm
500
mm
-
WEIGHT
101 Kg 131 Kg 142 Kg 159 Kg 167 Kg
Fig. 2.2.1
