18
3.3 MACHINE IDENTIFICATION
3.4 SEALING
3.5 SHRINKING
3.6 MAXI. PRODUCT DIMENSIONS
3.7 HEAT-SHRINKING FILM CHARACTERISTICS
The machine has been designed to obtain the packaging of the most diversified products, both
in the foodstuffs field as well as in the technical field, using all heat-shrinking films (Pvc,

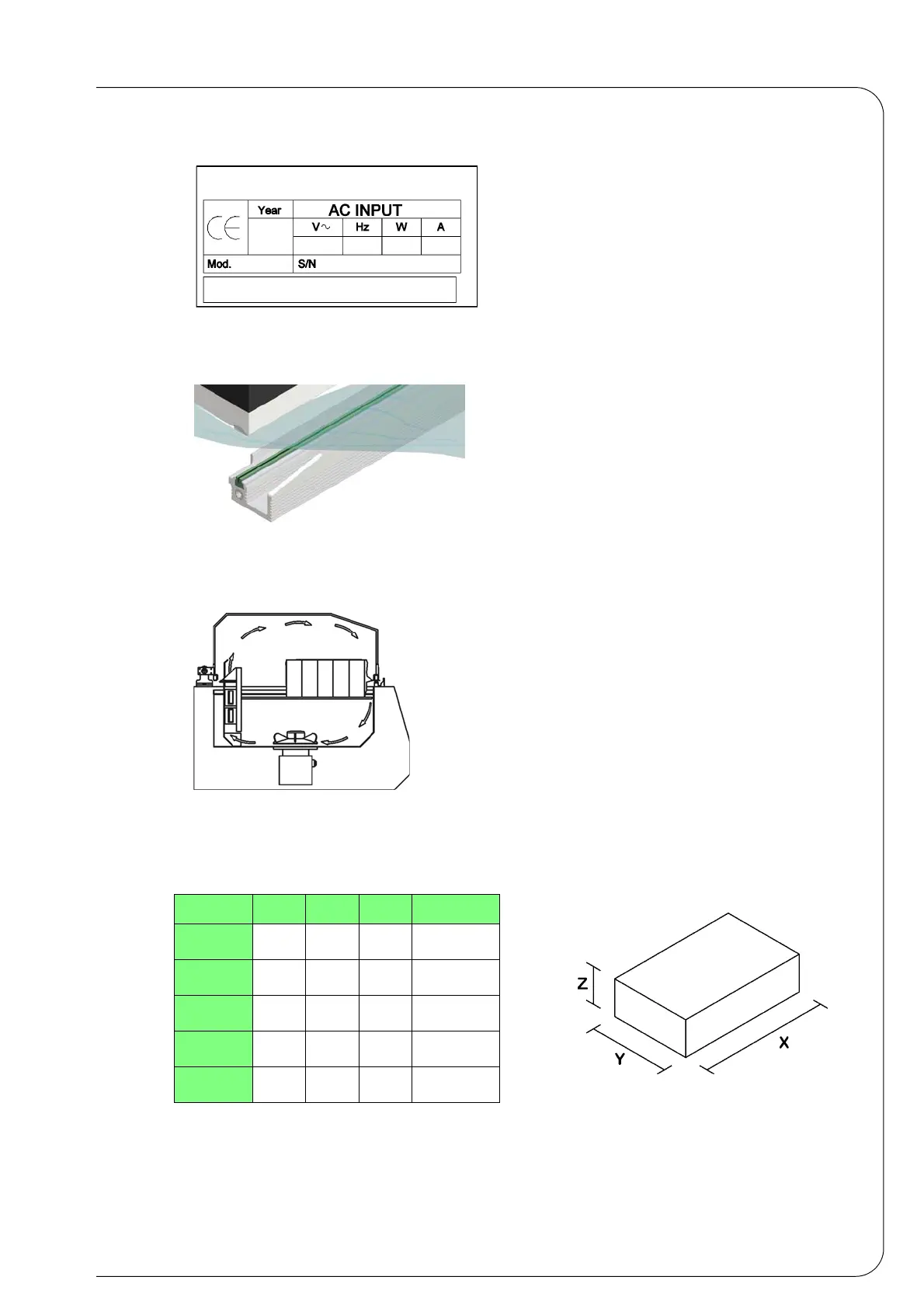

On the rear of every machine is applied a
nameplate showing the EC marking, the
main technical data such as model, serial
n., power, etc., to be notified to the builder
in case of problems.
Sealing and cutting are both of the
impulse type, automatically adjusted by
the electronic board.
The sealing blade is brought to a
temperature such to melt the film and the
pressure between the sealing blade and
the PTFE coated upper contrast, causes
the separation of the two film edges.
Film shrinking is obtained at the same
time as the sealing and is produced by the
forced circulation of hot air around the
packaging.
Air heating is obtained by making the
same go through a group of thermo-
controlled resistors.
Should any sealing breakage occur during
shrinking it is possible to postpone the
start of heat-shrinking by acting on the
control panel.
Fig. 3.6.1
MOD. X Y Z WEIGHT
S440
410
mm
250
mm
210
mm
>0,05 Kg
<10 Kg
S560
520
mm
390
mm
260
mm
>0,05 Kg
<15 Kg
S560N
520
mm
390
mm
260
mm
>0,05 Kg
<15 Kg
S560NA
520
mm
390
mm
260
mm
>0,05 Kg
<15 Kg
S870
830
mm
600
mm
310
mm
>0,1 Kg
<18 Kg
Fig. 3.4.1
Fig. 3.5.1
