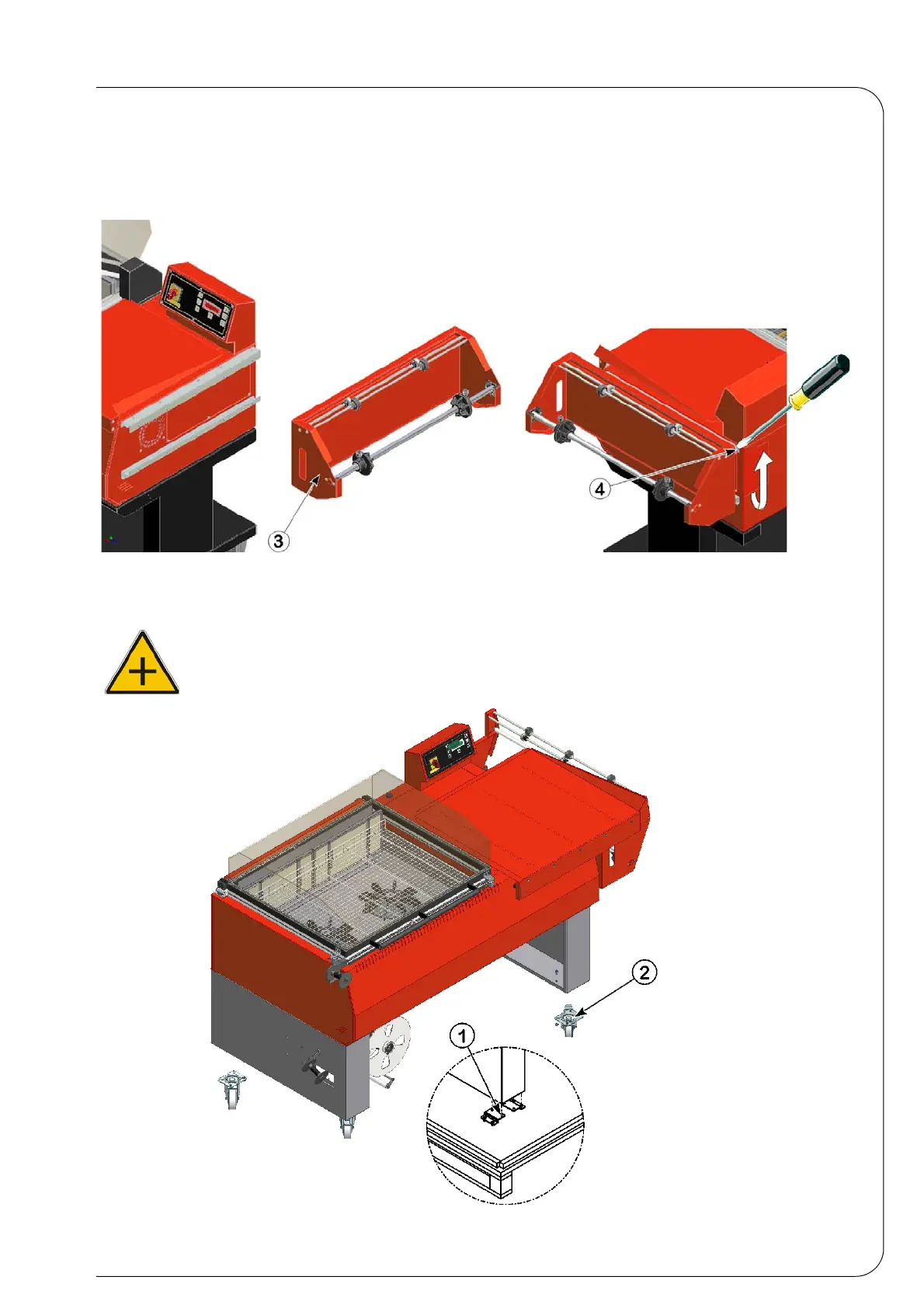

For the positioning of the reel holder operate in the following way:
• Position the reel holder 3 in its guides.
• Climb over the stopper 4 by a screw-driver.
2.5 ASSEMBLY OF MACHINE S870
Unscrew the bolts from the pallet, lift the machine by means of a lift, remove the plates 1, then
assemble the four wheels 2, as indicated in the picture.
Fig. 2.4.2
Fig. 2.5.1
