30
4.13 BELL ADJUSTMENT
5. MACHINE USE
5.1 S560N-S560NA MACHINE PREPARATION
Once the machine has been mechanically installed, connect it to the mains, then place the main
switch in position ON. After turning off the STOP push-button (the machine is supplied with the
STOP push-button turned on) and pressing the push-button, the machine will go on to
the working position.

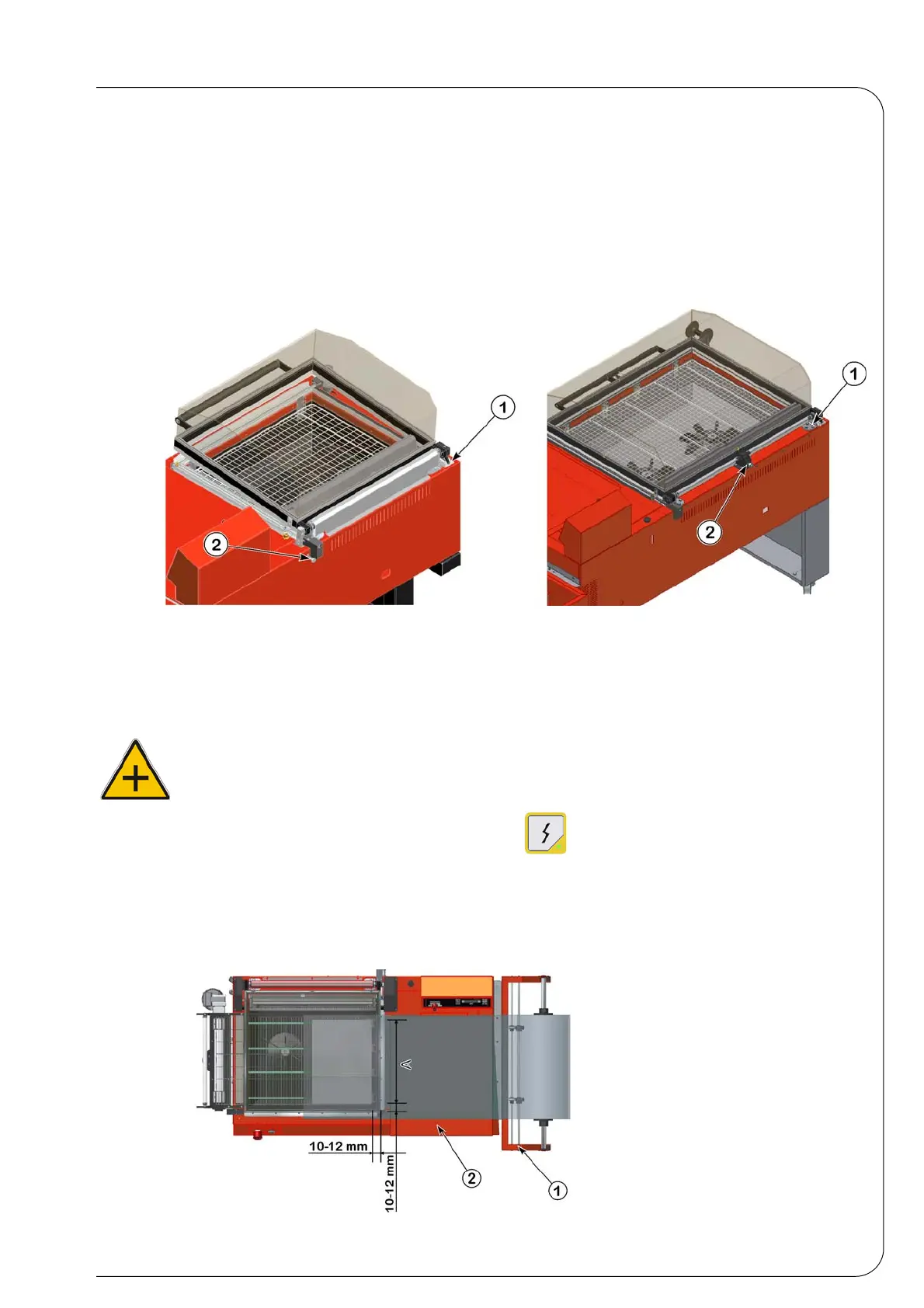

To adjust the bell opening width act on the retainer 1 making it slide in its guide (except for the
S560NA).
To adjust the bell opening force operate on the special variator 2:
• rotate anticlockwise to reduce it.
• rotate clockwise to increase it.
Fig. 4.13.1
5.2 REEL HOLDER AND PACKAGING PLATEN POSITIONING
Fig. 5.2.1
The reel holder 1 and the product
carrier 2 must be adjusted
according to the width A of the
product and, in particular it is
necessary to leave a space of
about 1-2 cm between the product
and the sealing edge.
