Use and maintenance manual S440-S560-S560N-S560NA-S870

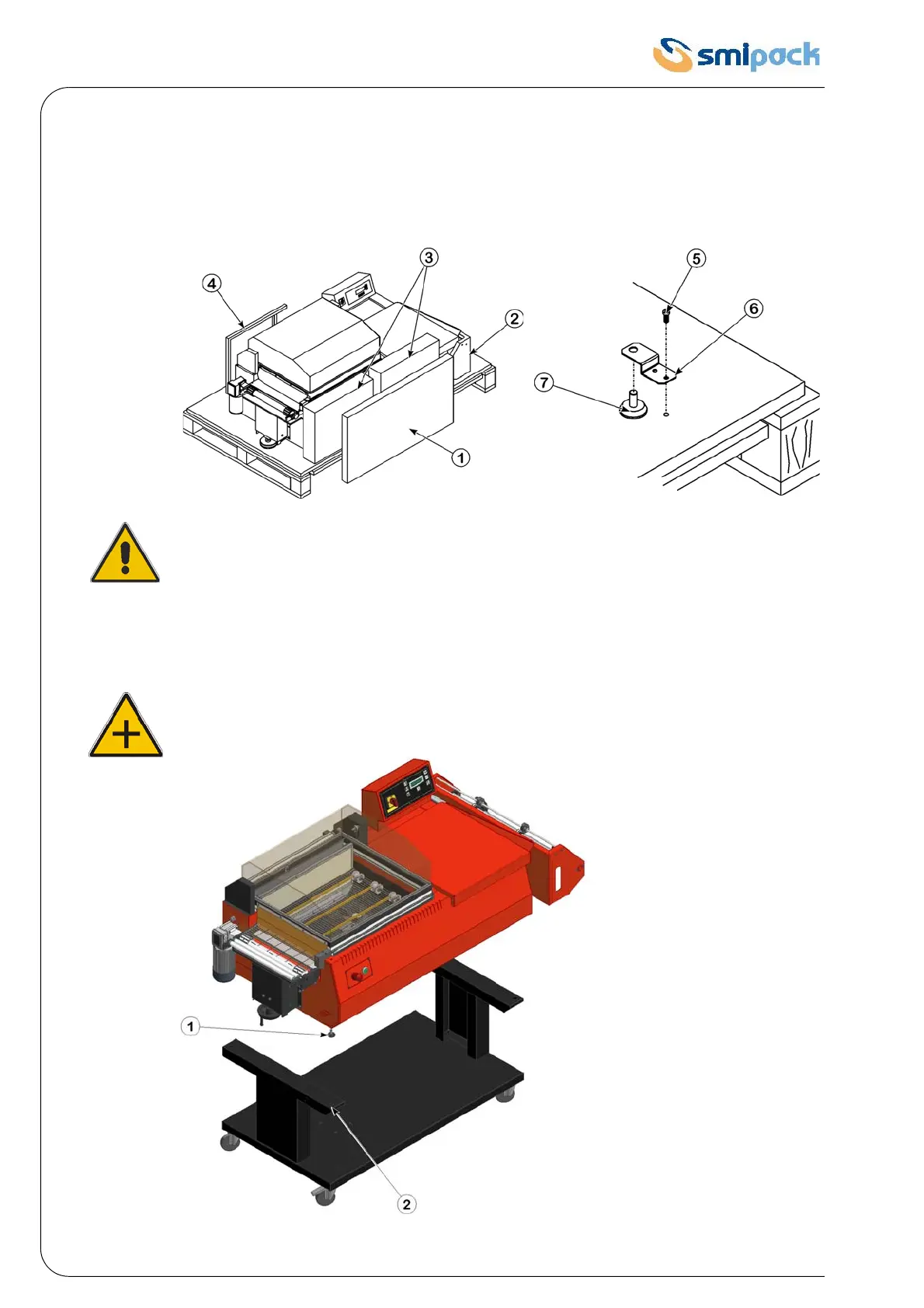

•(S440, S560, S560N and S560NA) : remove the reel holder 2.
• Remove the pack 3 containing four legs and four wheels.
•(S560N and S560NA) Remove the roller unit 4 .
• Unscrew the four clamping screws 5 to the pallet and the 4 feet 7.
• Take out the four plates 6 and tighten the 4 machine feet.
ATTENTION!
Before handling make sure that the hoisting equipment are suitable to lift the load that
has to be handled.
In the case of long storing, place the machine in a sheltered environment with a temperature
between -15°C and +55°C degree of humidity, variable between 30% and 90% without
condensation.
2.4 ASSEMBLY OF MACHINE S440, S560, S560N AND S560NA
Once the trolley has been assembled, position the machine on the same, making sure that the
feet 1 fit correctly in their housing 2.
Fig. 2.3.1
Fig. 2.4.1
