2.6 POSITIONING OF ROLLER UNIT (S560N E S560NA)

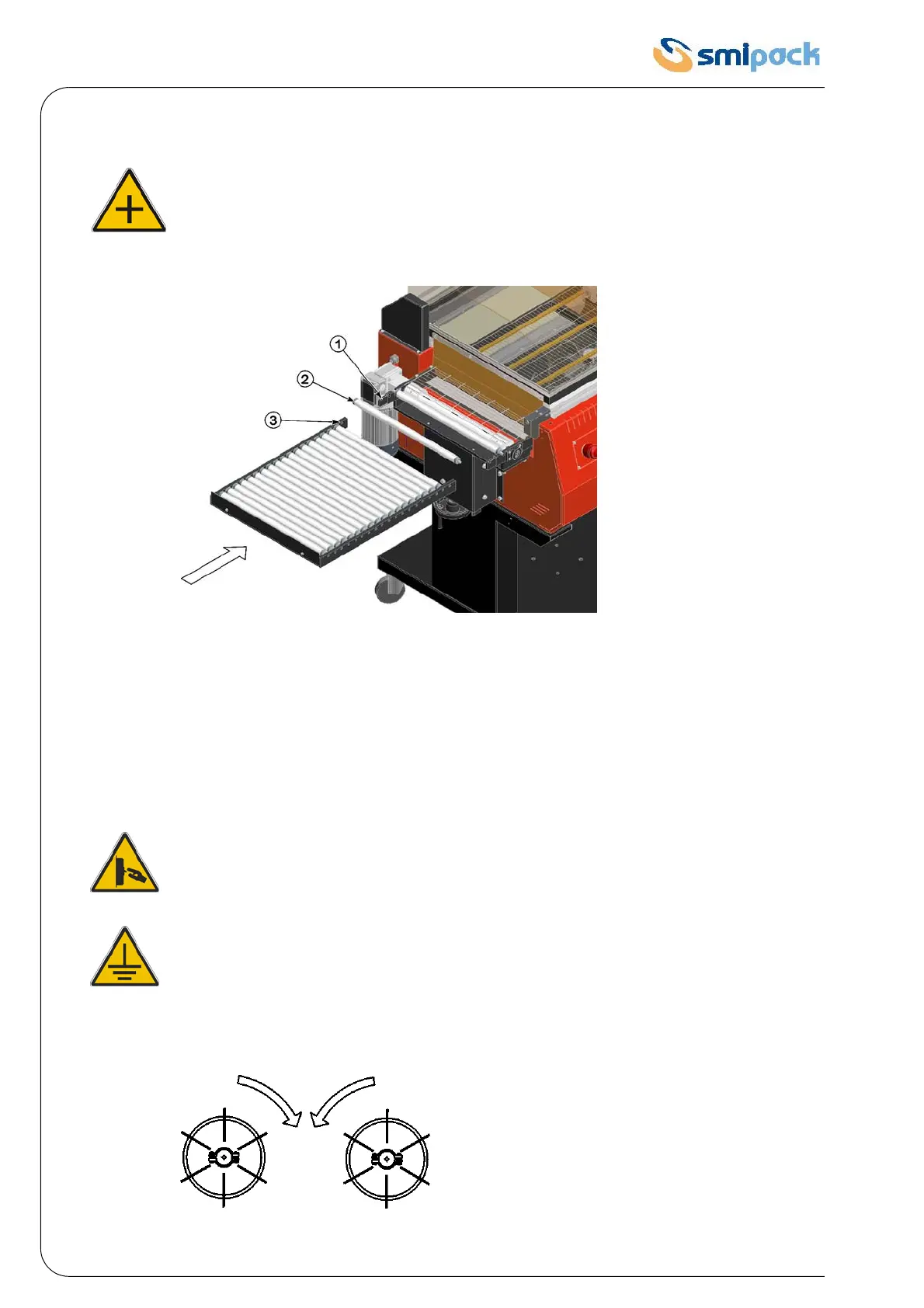

• Insert the roller unit in the couplings 1 of the conveyer belt locking it with the roller 2 in its
holes 3.
• During the assembly and disassembly operations avoid to laterally push the roller unit since
the couplings 1 could be damaged, all you have to do is to make it slide as shown by the
arrow in the figure
2.7 DEMOLITION AND DISMANTLING
The machine does not contain dangerous components or substances that require particular
removal procedures. Having dismantled the machine, according to the previous dismantling
procedure, it is necessary to separate the various materials in accordance to what is required
by the regulations of the Country in which the machine has to be disposed of.
2.8 ELECTRICAL CONNECTIONS
All operations for the connection to the mains must be carried out with no voltage
applied to the machine.
Earthening is compulsory!
The connection of the machine to the mains must be performed in compliance with the
regulations in force in the country of the user.
Check that the machine frequency and supply voltage values (see plate applied on the rear side
of the machine) correspond to the mains values.
Fig. 2.8.1
Fig. 2.6.1
