Smipack S440 - Tav. 20 Electrical Diagram Group S870 3 PH 400 V

57
Use and maintenance manual S440-S560-S560N-S560NA-S870

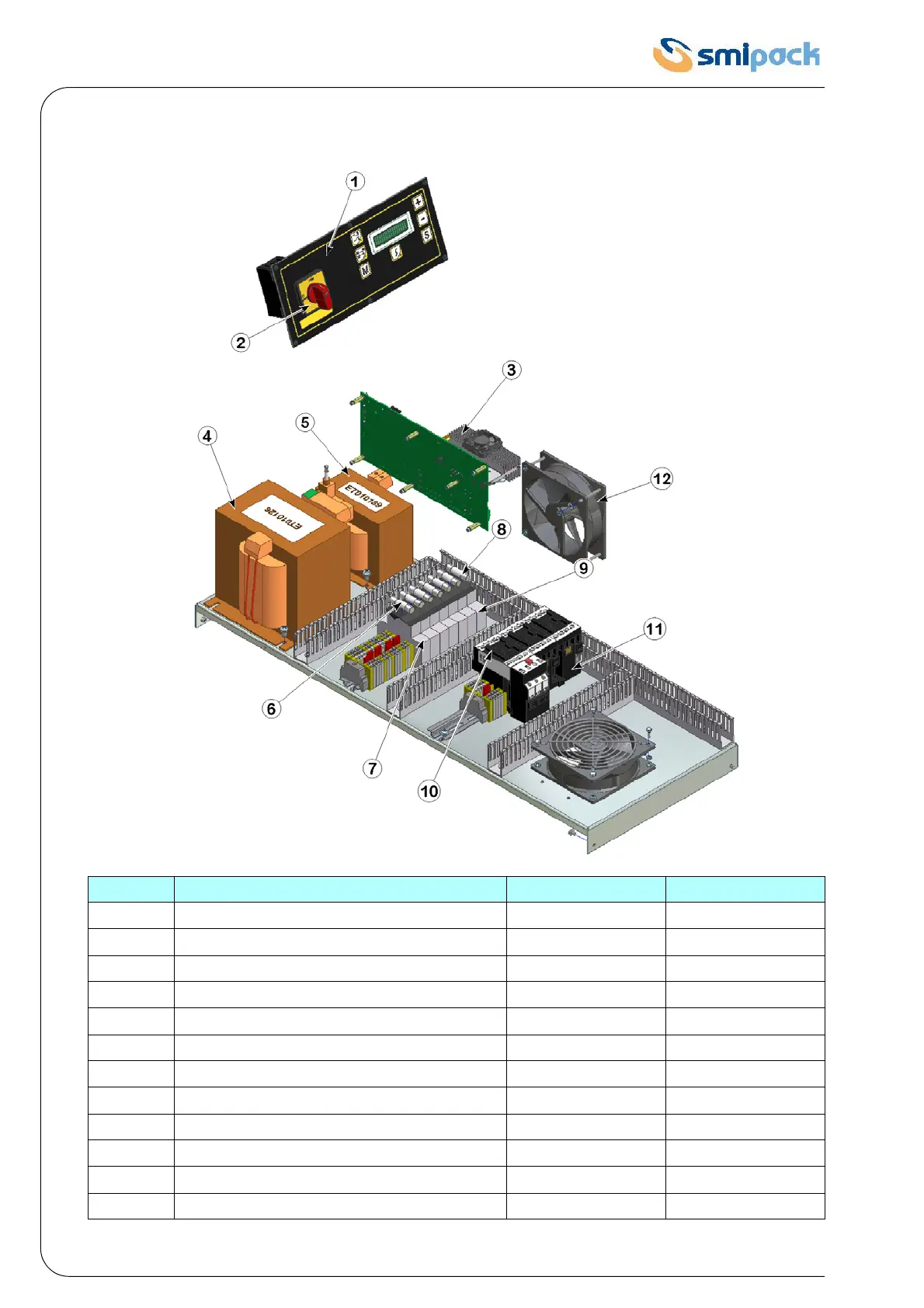

20 • Electrical diagram group S870 3PH 400V
POS. Description spare parts S870 3PH 400V N.
1 FLEXTRON-MASTER KZ010131 1
2 SWITCH EP010230 1
3 FLEXTRON-POWER BASE KZ010138 1
4 TRANSFORMER ET010126 1
5 TRANSFORMER ET010189 1
6 FUSE EE500011 4
7 FUSE SOCKET EE500023 1
8 FUSE EE500012 3
9 FUSE SOCKET EE500065 2
10 RELAY SWITCH EE100110 3
11 RELAY EE300110 1
12 FAN EK020022 2
