Use and maintenance manual S440-S560-S560N-S560NA-S870

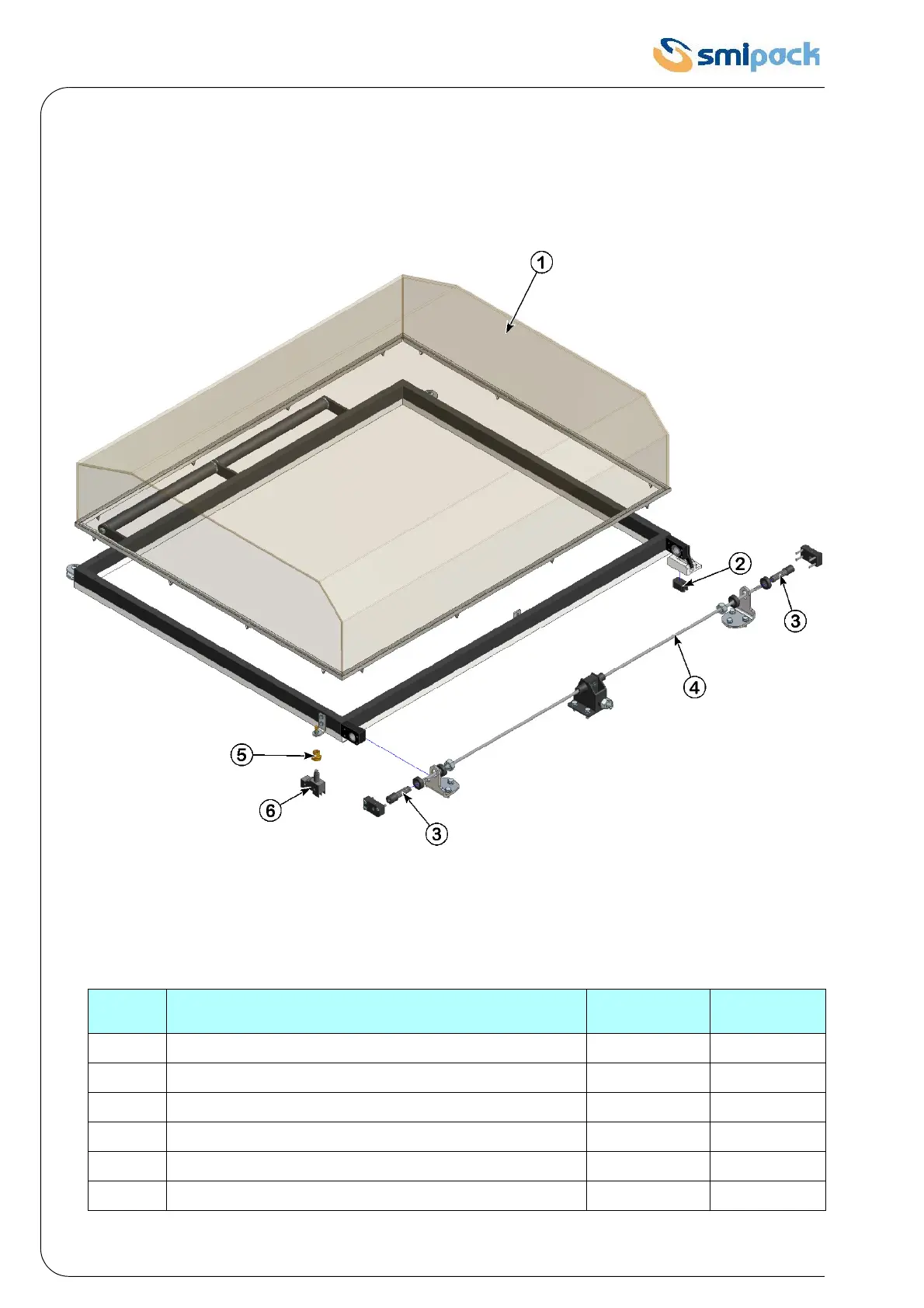

6 • Hood group (S870) Tav.1

POS. Description spare parts

S870

MY700026

1 HOOD GROUP MH100003 1

2 PLATE MA212645 1

3 PIVOT MA107045 2

4 SPRING MA105986 2

5 SUPPORT MA600291 1

6 LIMIT SWITCH EF010050 1
