43
Scanner Operations Operations

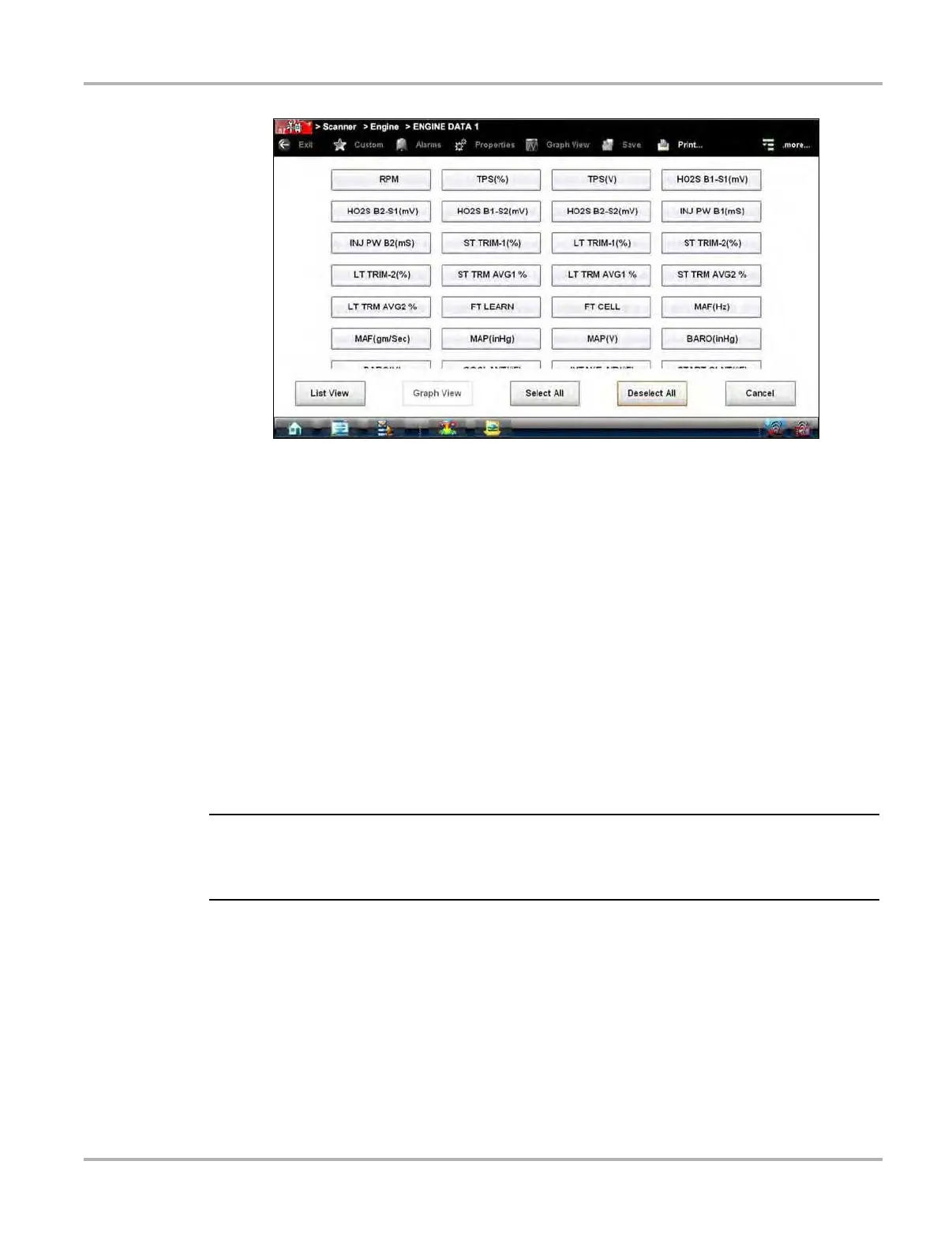

Figure 5-24 Sample custom configuration screen
3. Create a custom data list by tapping the parameters to be included. Highlighting indicates a
parameter that displays, parameters that are not highlighted do not display.
Keep the following in mind when configuring a custom data list:
– If the list of parameters is longer than what is shown on the screen, touch and drag the
screen to bring the additional parameters into view.
– Use the Select All button to display the complete list.
– Use the Deselect All button to remove all the currently selected parameters from the list.
– Tap individual parameters to highlight and include them in the list.
– Tap individual highlighted parameters to remove them from the list.
– Use the Cancel button to return to the data display.
4. Once all desired parameters have been selected, return to the data list:
– Use the List View button to return to a data screen in PID List format.
– Use the Graph View button to return to a data screen in Graph View format (see
Graph
View
on page 45 for details.
i Graph View is only available when 16 or fewer parameters (the number that can display on a
single screen) were selected for the custom list. Make sure that no more than 16 parameters are
highlighted if the screen displays a single graph when the Graph View button is selected.
Alarms
Alarms are visual indicators alongside a parameter in the data display list that change color to
show the status of the signal. A green alarm indicates on, a gray alarm indicates off. Only digital
parameters, those with a range limited to two states, can have alarms. Parameters with
continuous ranges, such as variable voltage and pressure values, cannot have alarms.
The Alarms selection is used to configure visual indicators on certain data parameters. If a vehicle
does not provide signals for these functions, the alarm indicators are unused.
