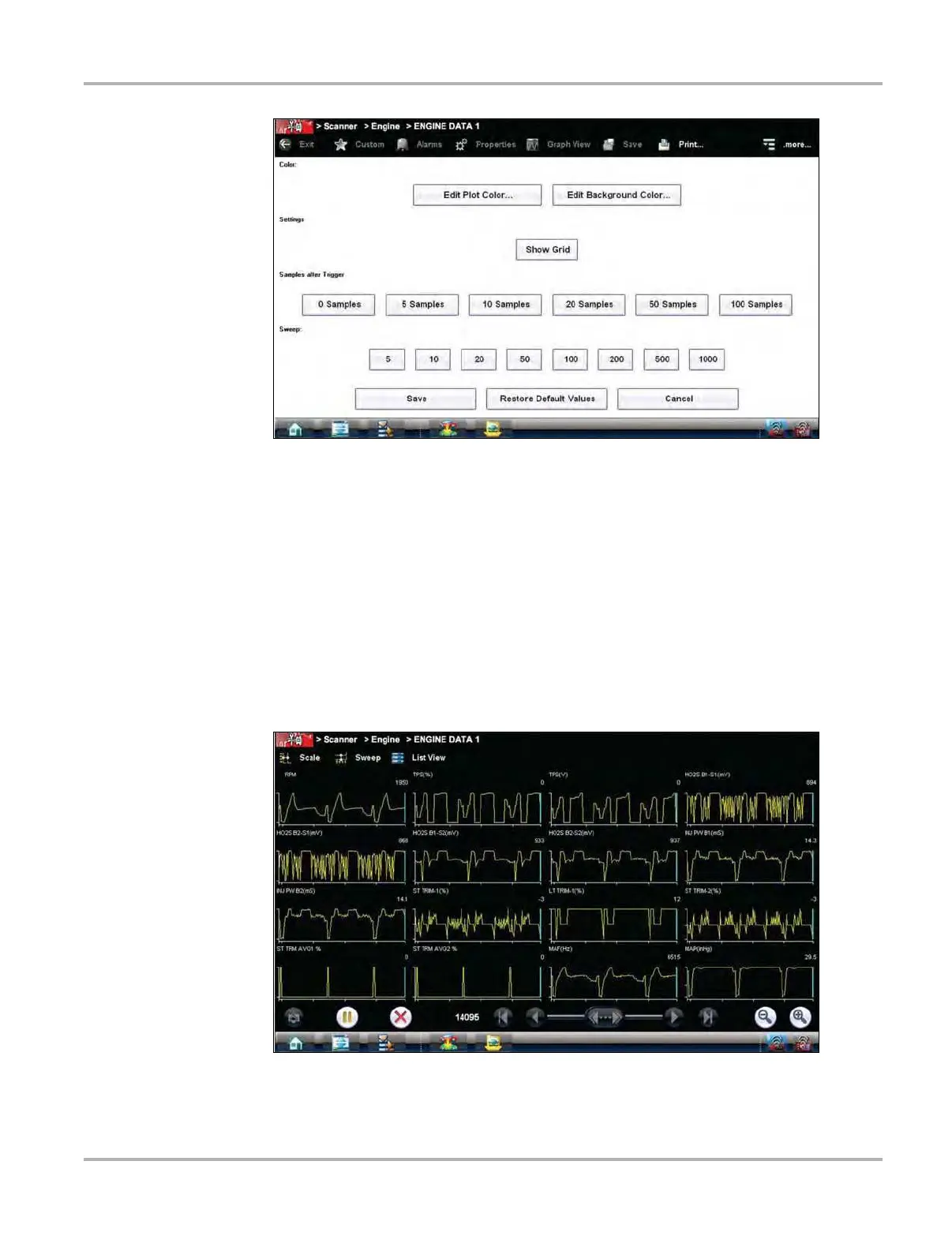

Figure 5-26 Sample properties dialog box
The sweep options let you choose the amount of data that displays across the graph. Values are
in sample points, or frames of data. A frame of data equals one complete transmission of the serial
data by the control module.
Graph View
Graph View allows you to simultaneously display up to 16 parameter graphs (
Figure 5-27). The
graphs must first be opened in the data list in order to be included when Graph View is selected
from the toolbar. The display defaults to a single graph if more than 16 graphs are open when the
toolbar button is selected. Should this happen, return to the data list and close some of the graphs.
Figure 5-27 Sample Graph View screen
