74
Scope Multimeter Operations Getting Started

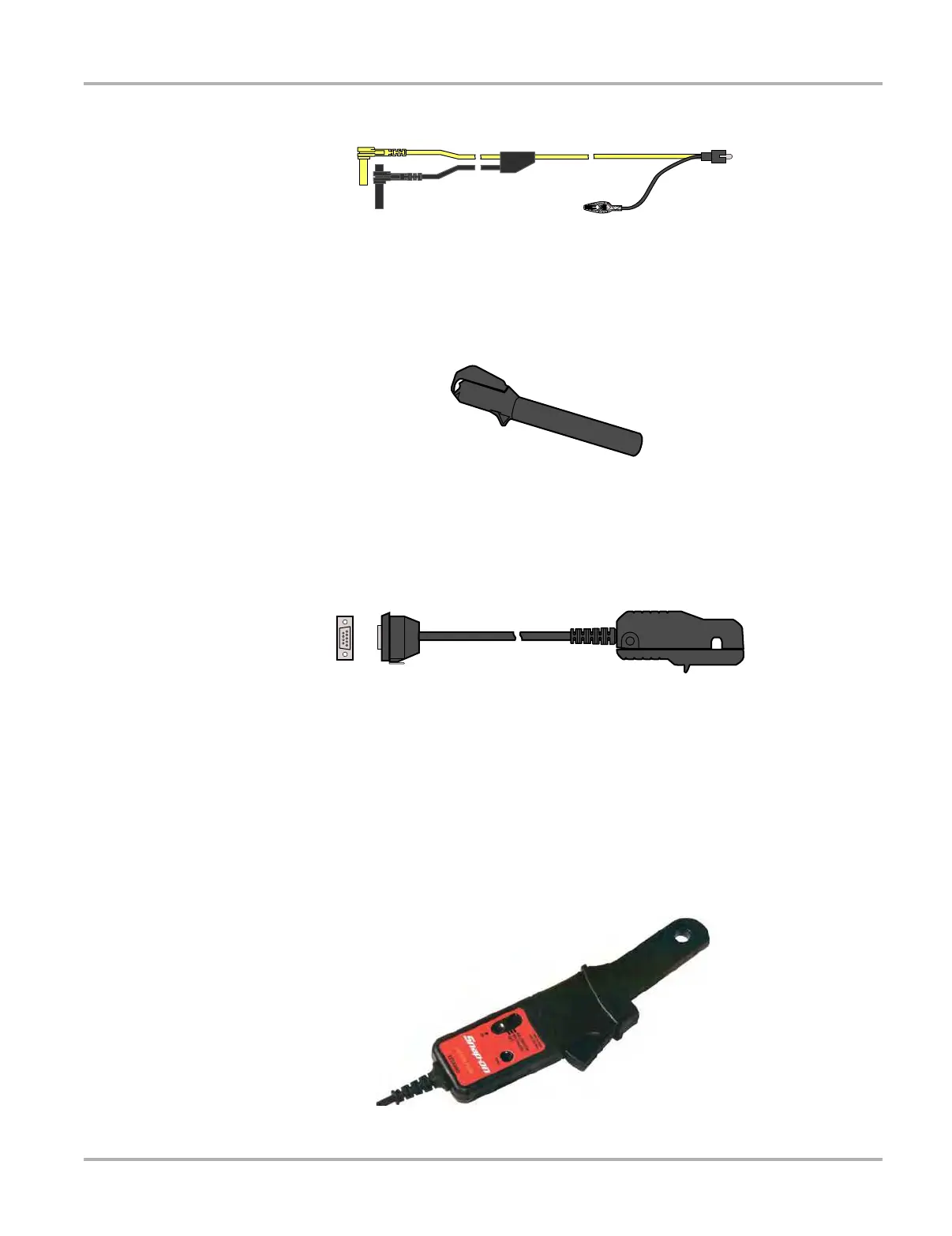

Secondary Coil Adapter Lead (optional)
Figure 8-10 Secondary Coil Adapter lead
The optional Secondary Coil Adapter lead (
Figure 8-10) connects to the clip-on secondary wire
adapter, coil-in-cap adapter or coil-on-plug adapter to display secondary waveforms.
Secondary Ignition Clip-on Wire Adapter (optional)
Figure 8-11 Secondary Ignition Clip-on Wire Adapter
The optional Secondary Ignition Clip-on Wire Adapter (
Figure 8-11) connects the Secondary Coil
Adapter lead to a secondary ignition lead on the vehicle to display ignition patterns.
Inductive RPM Pickup Adapter (optional)
Figure 8-12 Inductive RPM Pickup adapter
The optional Inductive RPM Pickup adapter (
Figure 8-12) connects to the scope auxiliary port of
the Display Device with a DB9F plug. It can be used to trigger a waveform or display RPM. With
the Ignition Scope, the RPM Pickup connects to cylinder number one to establish the firing order.
Low Amp Current Probe (optional)
The optional Low Amp Current Probe provides accurate and reliable non-intrusive testing of
ignition coils, fuel injectors, fuel pumps, relays, electric motors, and parasitic draw. Use to
measure current from 10 mA to 60 Amps with a resolution of 1 mA.
Figure 8-13 Low Amp Current Probe
