5
Introduction Functional Description
5— Brightness/Contrast (S Button)
Adjusts screen brightness and contrast or performs other user-assigned function.
6— Power Button
Turns the MODIS™ display unit on and off.
7— Battery Pack
8— Fuse
Protects the internal circuitry.
9— Video Graphics Array (VGA) Output
Extends display to an optional external monitor.

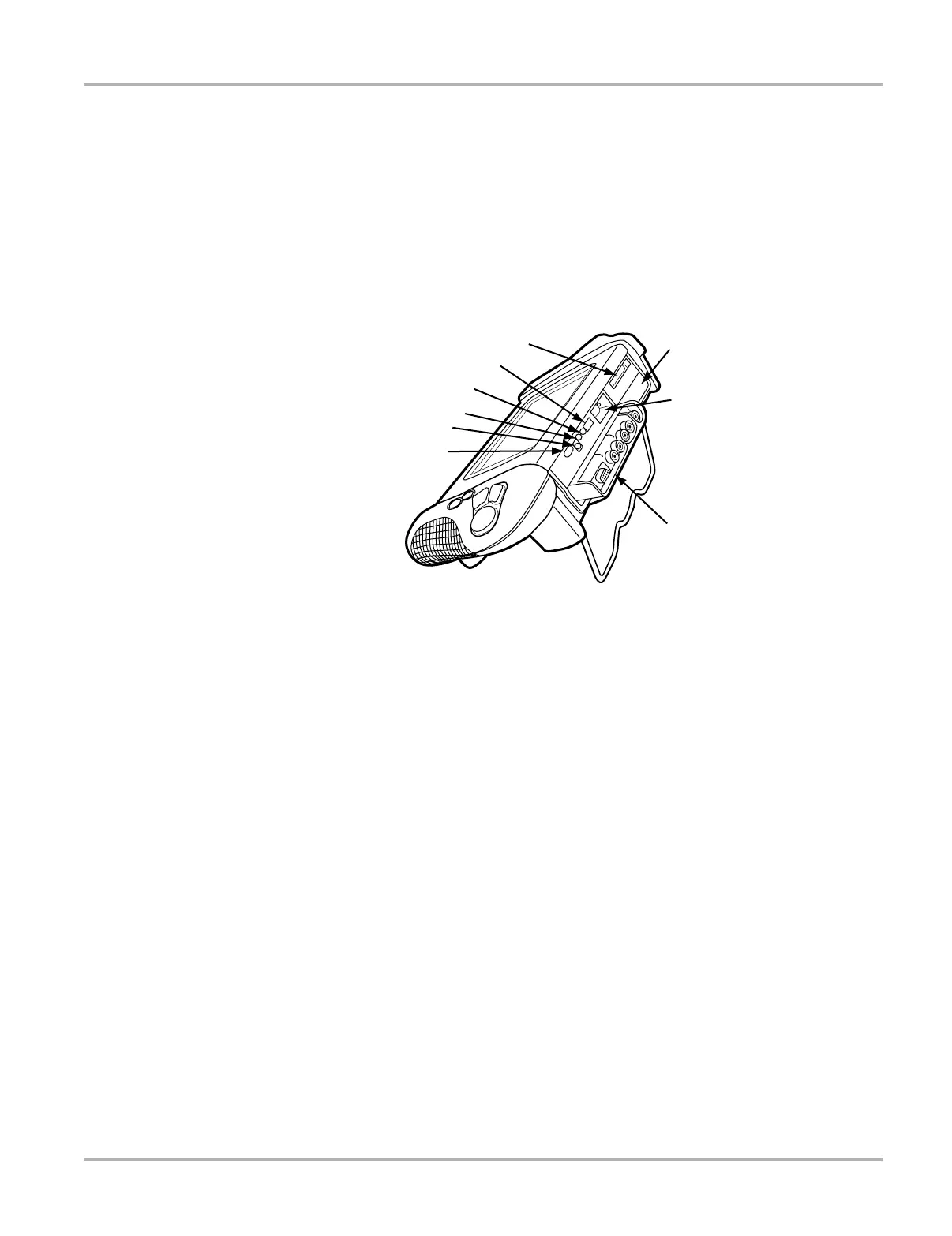

Figure 2-3
MODIS™ unit top view
1— Infrared Output
Sends infrared transmissions to a printer.
2— DC Power Supply Input
3— DC Supply/Charger Power LED
4— Battery Charging LED
Indicates the AC/DC power supply is in use when lit.
5— USB Port
Use with compliant peripherals such as an optional keyboard, mouse, printer, or mass
storage device.
6— CF (CompactFlash
®
) Card Slot
Use for data storage.
7— Scanner™ Plug-in Slot
8— Serial Port
Use with optional compliant peripherals, such as the Flexible Gas Analyzer (FGA), or
connection to a personal computer.
9— Lab Scope Plug-in
1
2
3
4
5
6
7
8
9
