9
Introduction Vehicle Auxiliary Power Cables

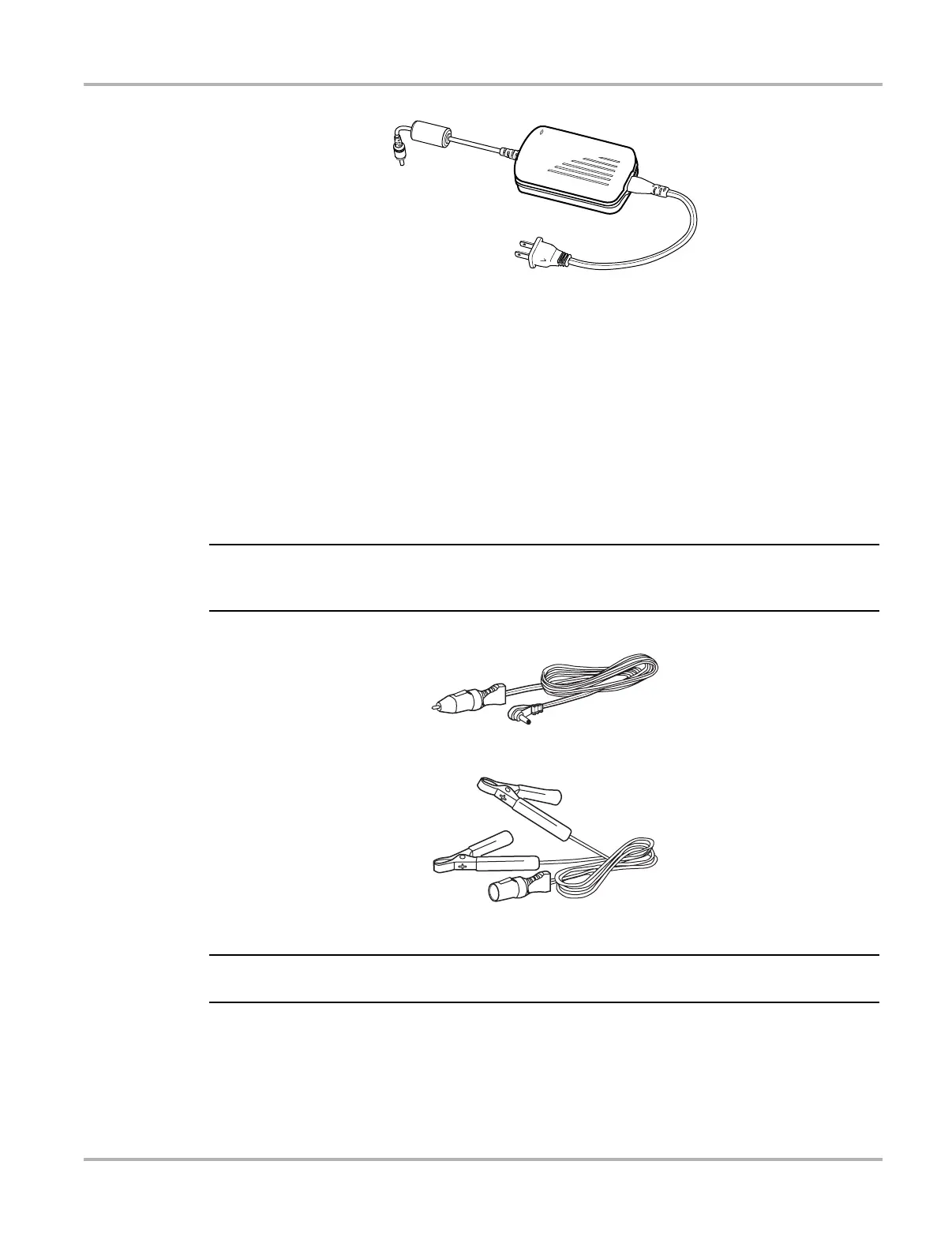

Figure 2-5 Sample AC/DC power supply
When both the AC/DC power supply and the battery pack are installed, the AC/DC power supply
is the primary power source. The AC/DC power supply also powers battery pack charging.
Refer to “Charge Battery” on page 46 for details.
2.6 Vehicle Auxiliary Power Cables
The MODIS™ unit can be powered from a vehicle using the Lighter Power Cable (Figure 2-6) or
the Battery Power Cable (Figure 2-7).
NOTE:
i When receiving power from the vehicle battery, the Battery Power Cable is used with the Lighter
Power Cable.
Figure 2-6
Sample Lighter Power Cable
Figure 2-7 Sample Battery Power Cable
NOTE:
i The vehicle auxiliary power cables will not charge the battery pack.
