Example 2, Extension monitoring and call pick-up on D7 expansion module
• All functions available on the freely programmable LED function keys of the phone are available
on the connected D7.
• The prerequisites are the same as those for the LED function keys on the phone. See "Example 1,
Extension monitoring and call pick-up" on page 75.
• For information on how to connect the D7 to the phone, as well as on D7 function key and
display layout and settings, please see the D7 User Manual at http://wiki.snom.com/Snom_D7/
Documentation.

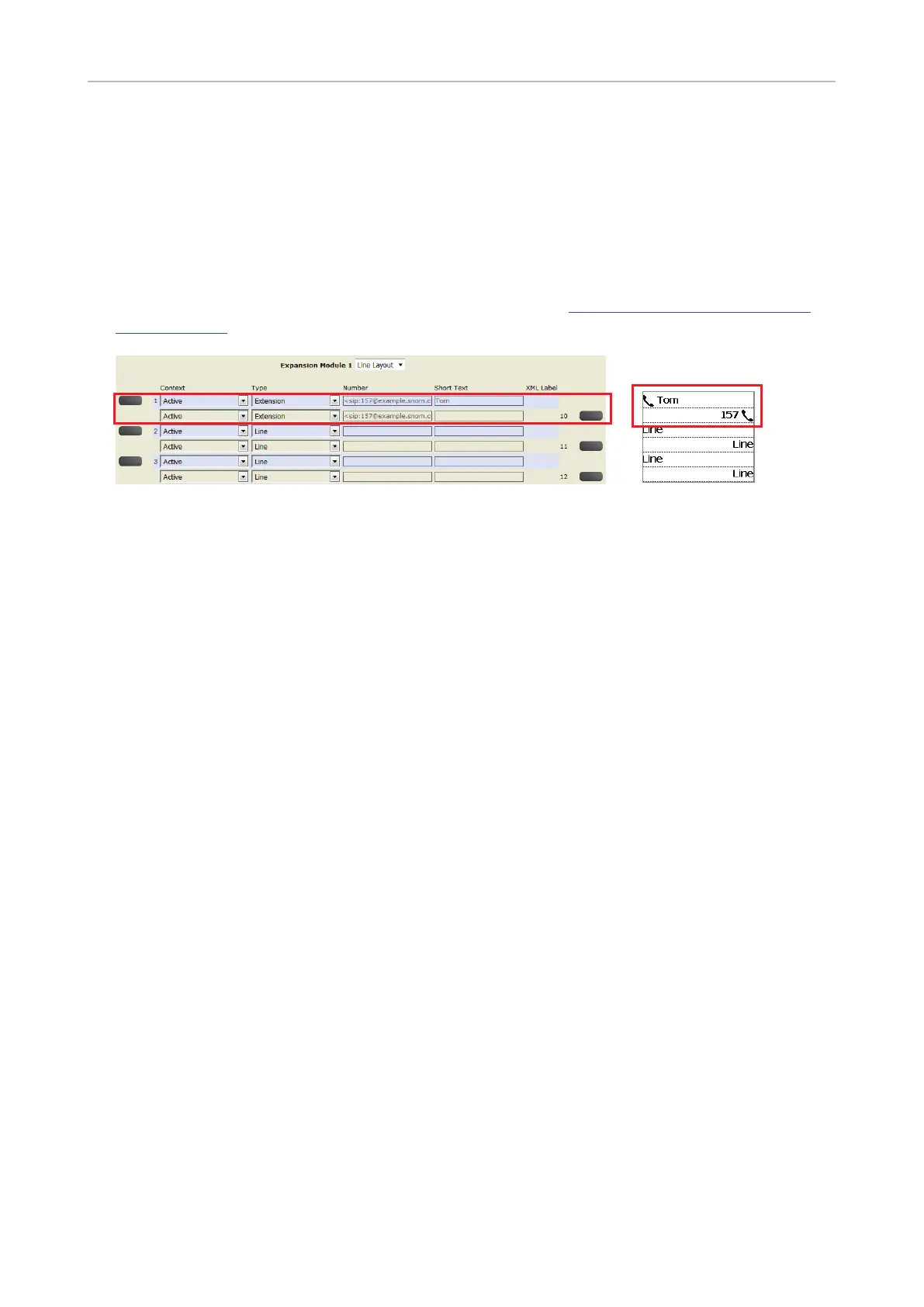

1. On the phone's web interface, click on Function Keys in the menu on the left.
2. Click the Key Assignment tab, if necessary.
3. Scroll down to Expansion Keys and the expansion module you want to configure.
4. Under Context of the key on the expandion module, select "Active" or one of the configured
identities from the drop-down list.
5. Under Type, select "Extension" from the drop-down list.
6. In the Number text field, enter the phone number whose calls you want to pick up. In our example
it is extension 157 on key 1 and extension 167 on key 10 (the left and right top keys on the D7).
7. Optional: In the Label text field, enter a name or descriptive text. If you leave the field blank, the
number will be displayed in the key's label area on the D7's display.
8. Click on Apply and Save.
The LED of the key on the D7 will now flash red quickly when a call is ringing on the extension. If the
call is not answered, you can pick it up by pressing the key. When the extension is engaged in a call,
the key will glow red steadily.
