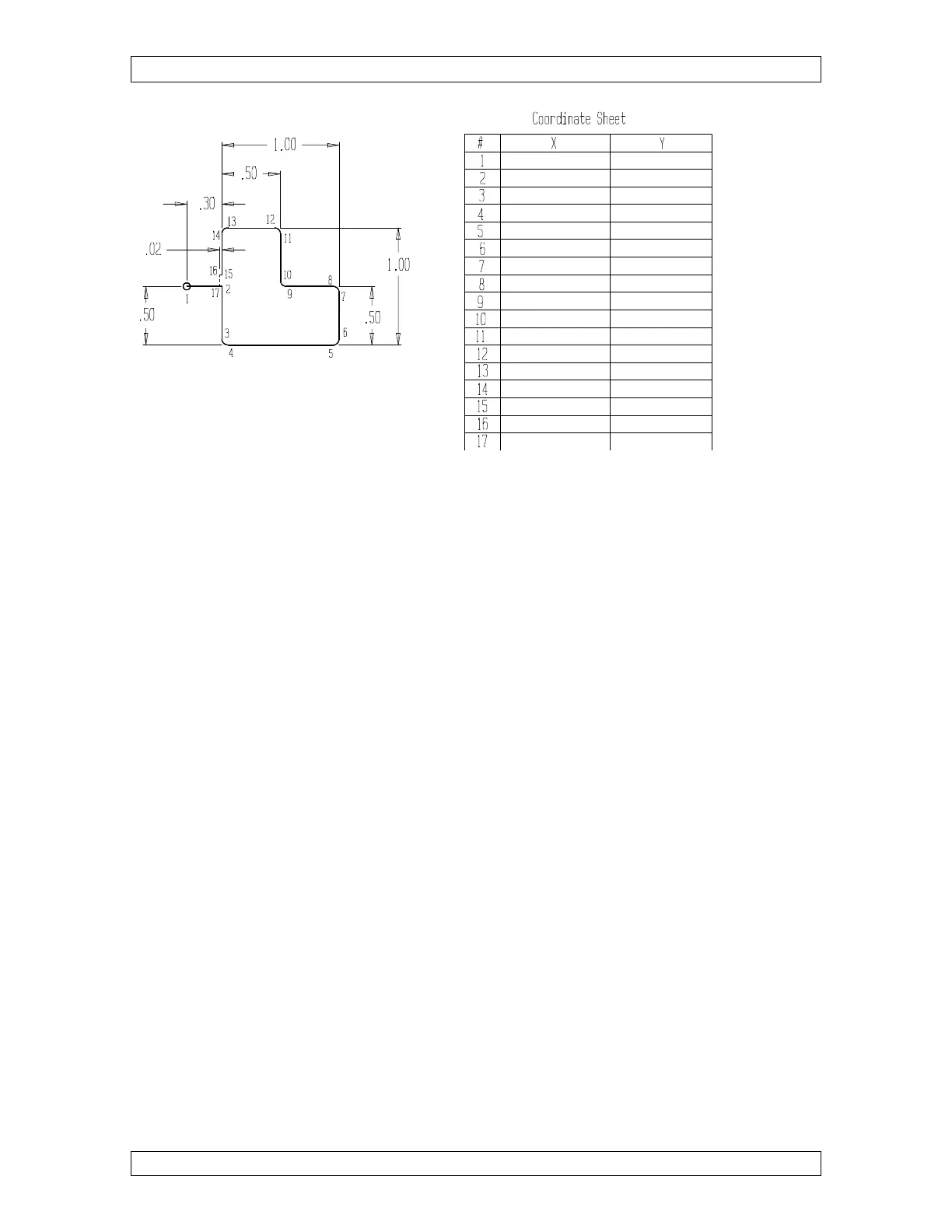

Program:
N005 G54
N010 G92 X________ Y________ Z________ (1)
N015 G90
N020 C411
N025 G42 H061
N030 T84
N035 G01 X________ (2)
N040 Y________ (3)
N045 G03 X________ Y________ I.05 (4)
N050 G01 X________ (5)
N055 G03 X________ Y________ J.05 (6)
N060 G01 Y________ (7)
N065 G03 X________ Y________ I-.05 (8)
N070 G01 X________ (9)
N075 G02 X________ Y_________ J.05 (10)
N080 G01 Y________ (11)
N085 G03 X________ Y________ I-.05 (12)
N090 G01 X________ (13)
N095 G03 X________ Y________ J-.05 (14)
N100 G01 Y________ (15)
N105 G40 X________ (16)
N110 M00 (GLUE STOP)
N115 G01 Y.5 (CUT OFF)
N120 X-.3 (MOVE BACK TO START POINT)
N125 M02 (END OF PROGRAM)
