Softing PROFIBUS Tester 5 - Connection Via D-Sub Connector with Service Socket

Chapter 3 - Connection to PROFIBUS-DP
Copyright 2016 Softing Industrial Automation GmbH
21
Use D-sub adapter cable BC-600-PB-CB-DSUB-1 for testing on live systems
For testing on live systems we highly recommend using the optional D-sub adapter cable
BC-600-PB-CB-DSUB-1 with reduced influence on bus operation. Refer to D-sub adapter
cable for testing live systems .
3.3.1 Connection via D-sub connector with service socket
If all bus stations provide D-sub connectors with an additional service socket, you can simply plug in the
BC-700-PB at that socket.

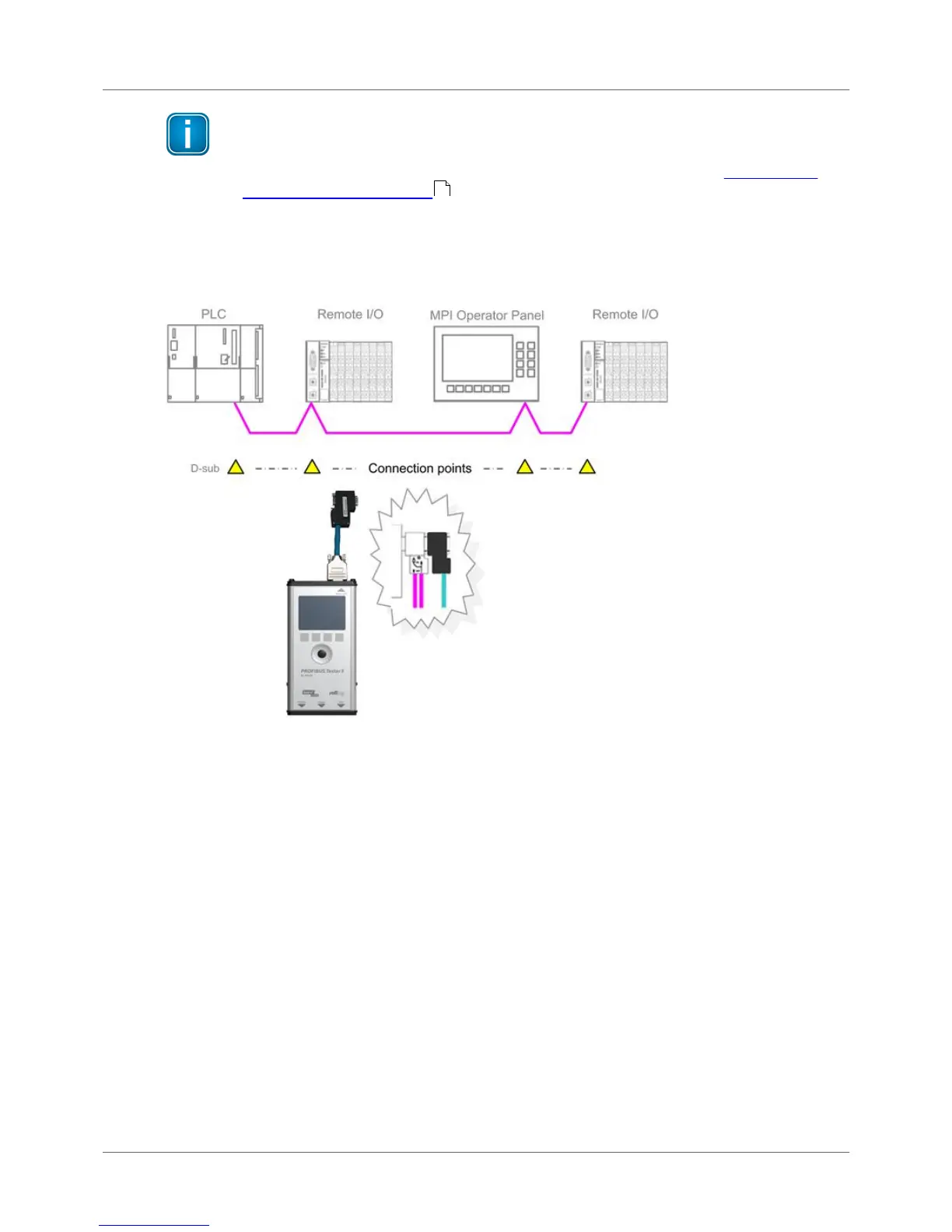

Figure 17: Connection points for the D-sub adapter cable
10
