Stop running tests prior to mounting or disassembling the PA-adapter
To prevent loss of test data and in terms of a structured mode of operation you should
solely mount or disassemble the PROFIBUS PA-adapter BC-700-H1 when there is no running
test function.
Two light emitting diodes directly give a check-back indication with respect to the operational state of
the PA-adapter and to the DC voltage (supply voltage), see figure.

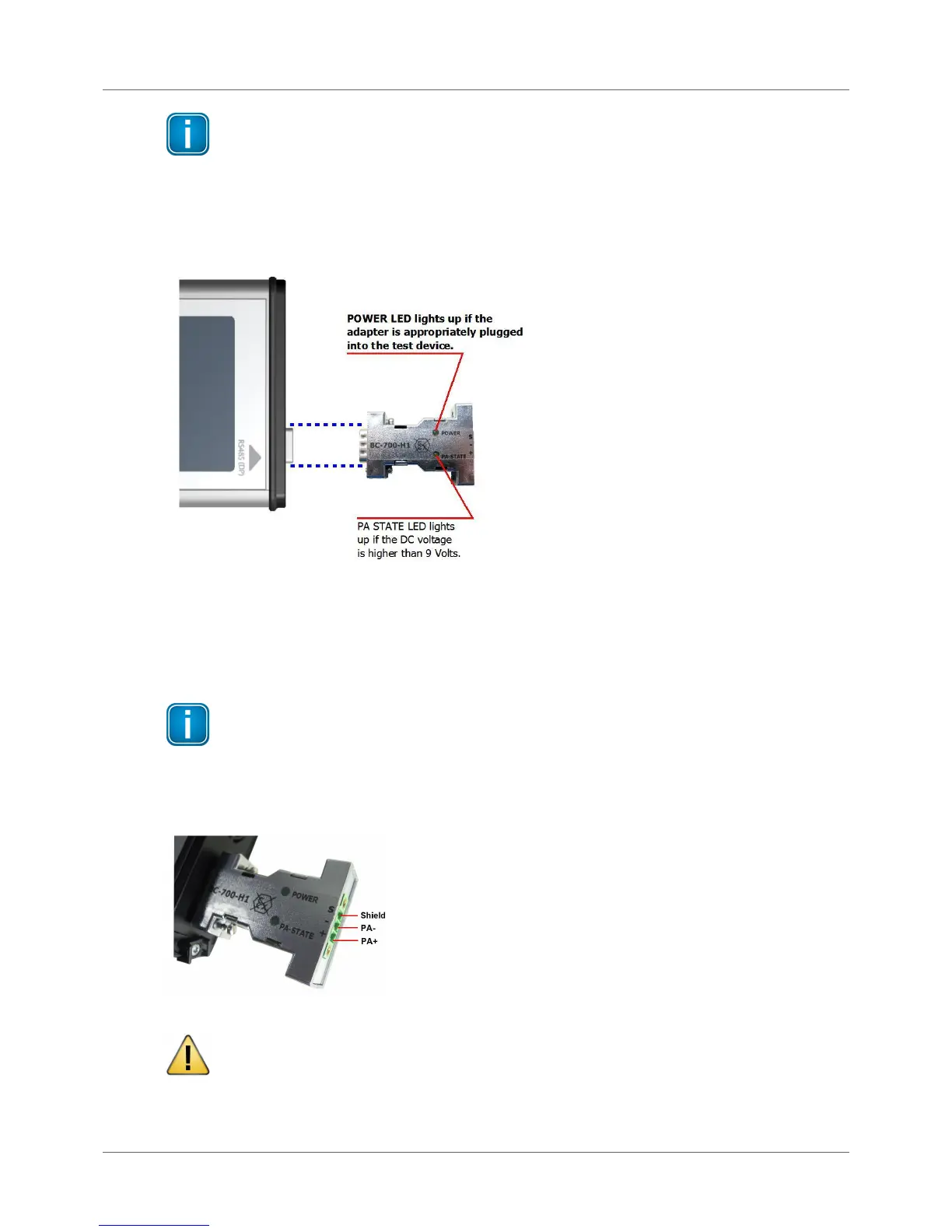

Figure 22: Connecting PA-adapter to test device
3.5.4 Bus connection
The supplied test equipment set allows to easily connect the BC-700-H1 adapter to the PROFIBUS PA
segment. Alternatively you can use a short length of PROFIBUS PA standard cable to connect the tool to
the bus.
In general it is sufficient to use PA+ and PA-
Protocol analysis, testing DC voltage level (supply voltage) and AC signal levels (MPB peak-
peak voltage) require only a proper connection to signal wires PA+ and PA-. To guard
against and prevent errors in test and parasitic coupling (EMC) it is additionally
recommended using cable shielding or interconnecting the shield connector.
Figure 23: PROFIBUS-PA pin assignment
Do not use in hazardous areas
The BC-700-PB and BC-700-H1 adapter must not be used in hazardous areas and must not
be connected to an intrinsically safe MBP-IS segment (blue terminals of fieldbus coupler; in
some cases blue bus cables).
