83
Procedure
1. Open the inverter as described in section 5.1.

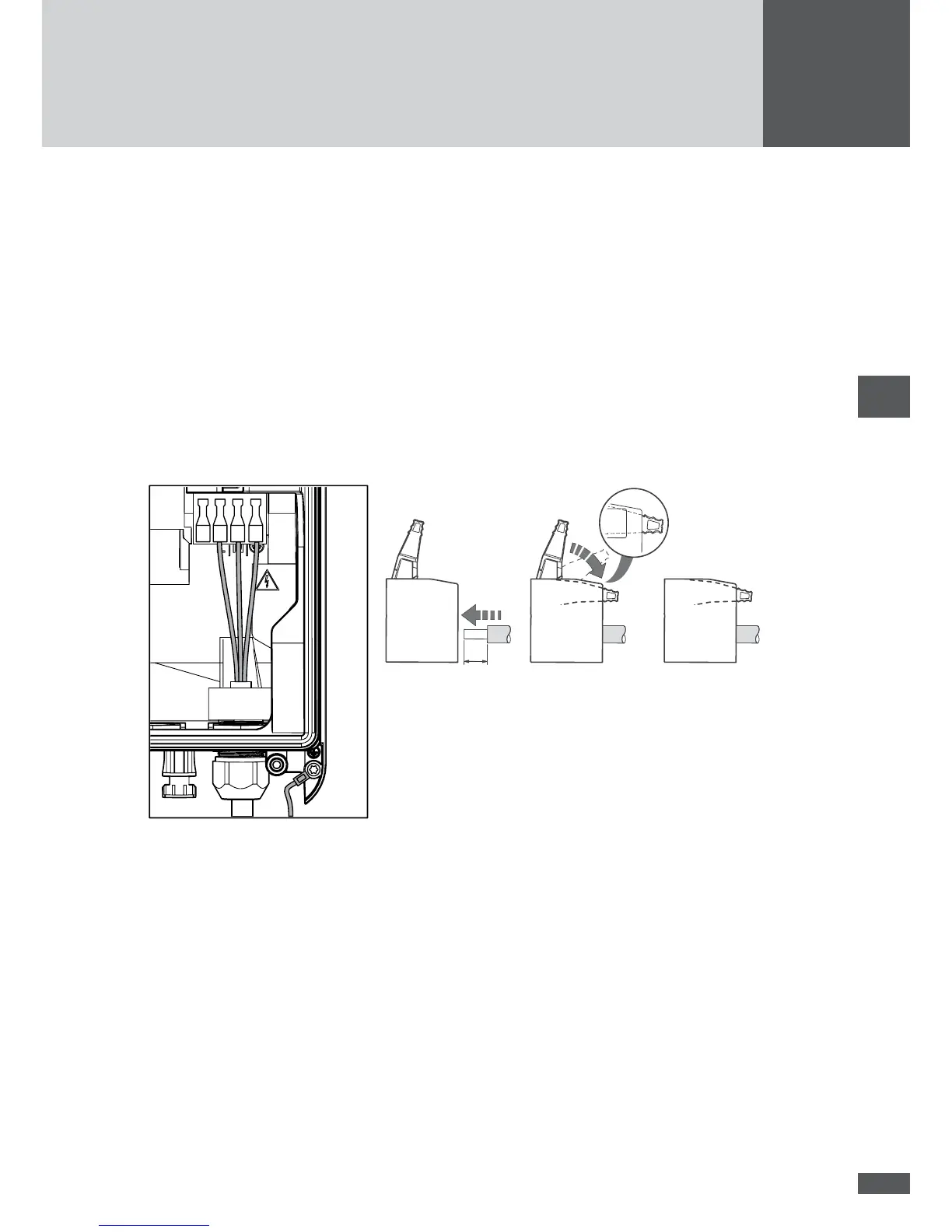

2. Route the AC conductor through the right-hand cable gland to the AC connection
terminals.
3. Remove an 18 mm length of conductor isolation (A).
4. Connect the wires in the following sequence:
– the protective conductor to the "PE" terminal
– the neutral conductor to the "N" terminal
– the live conductor (phase L) to the "L" terminal
– press and close the levers (B) and (C) completely. If a lever is not completely closed,
the conductor connection is not secured.
(C)
(D)
(B)(A)
[mm]
NPEL
18
Abbildungen Klemme: Phoenix Contact
5. Check the cable connections for rm seating.
6. Tighten the cable gland (wrench size: 34 mm).
7. Check the cable strain relief.
8. Connect the second protective conductor (D).
– Assembly sequence: toothed lock washer M5, lug, washer M5, spring washer M5,
Phillips head screw M5 x 12
9. Close the inverter:
– insert the contact protection until it engages;
– then tighten the cover.
