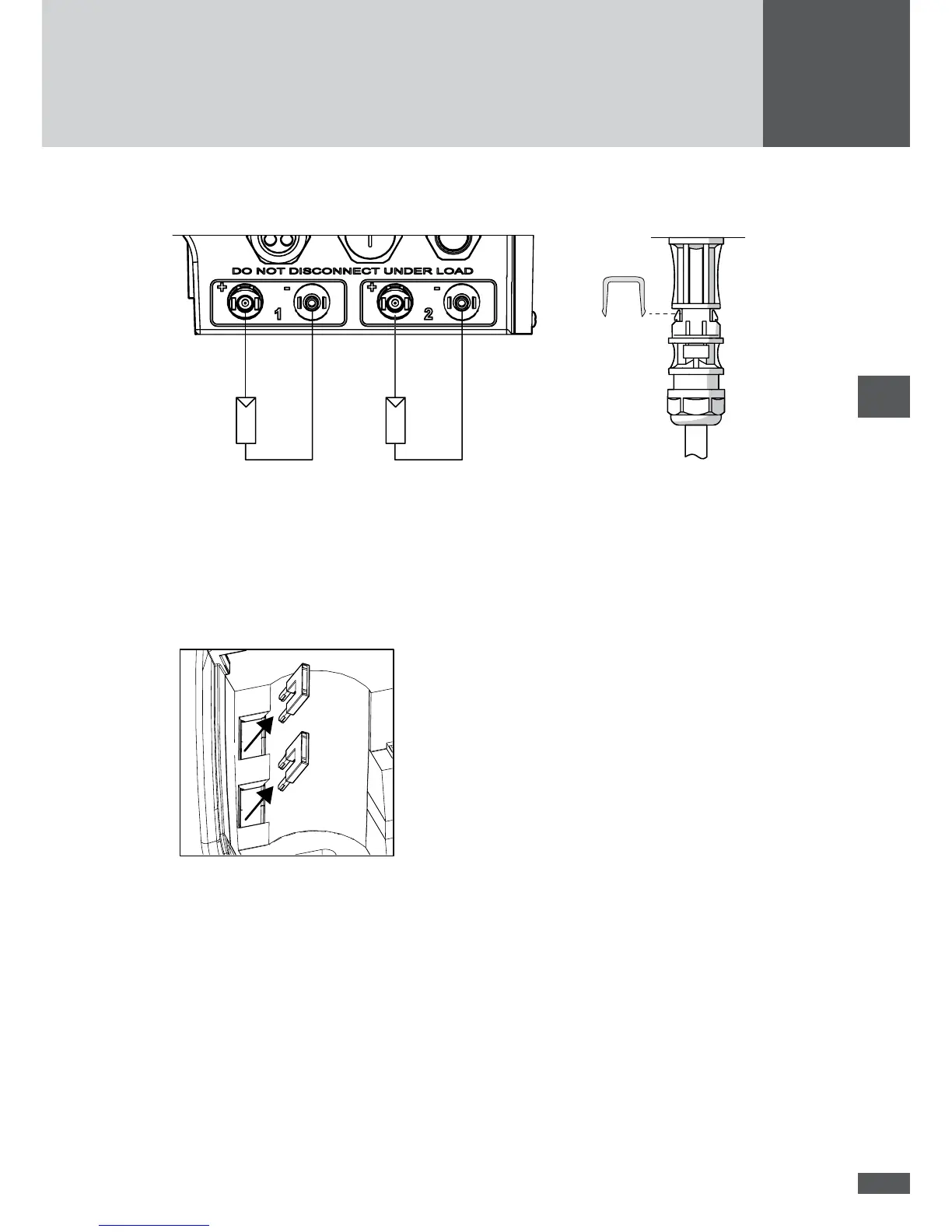

Configure the inverter for dual tracking operation
If necessary, congure the inverter for dual tracking operation (only SM4000P, SM4600P
and SM5000P).
4. Remove the cover as described in section 5.1.1.
5. Remove both DC bridges (see Section 5.2 / No.10) using a size 2 screwdriver.
6. Close the inverter by tting and tightening the cover.
Close off any unused DC connection points.
Any unused DC connection points must be closed off to ensure that the installation com-
plies with the IP65 protection rating requirements. Please use the following closing parts
made by Wieland (www.wieland-electric.com):
for plug components: order number 05.566.6380.0
for socket components: order number 05.566.6480.0
