3.1 Views of the unit

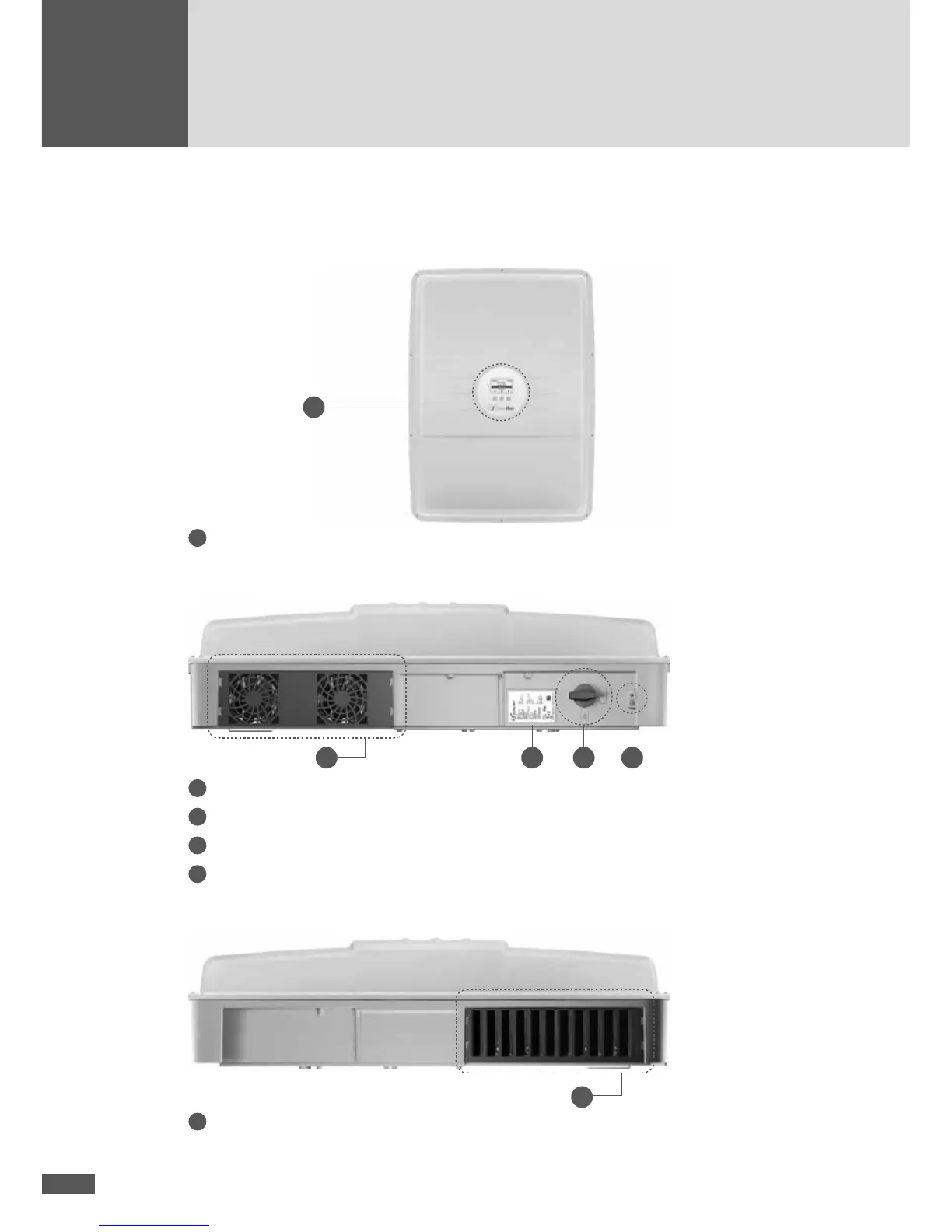

Front view
1
1
Graphics display with status LED and three buttons
Side view left
432 5
2
Fan cover (air intake)
3
Name plate
4
DC disconnector Q1
5
Connection option for external protective conductor
Side view right
6
6
Fan cover (air outlet)
