4.6.3 DC connection
The inverters are quipped with 2 (SolarMax 6MT2 / 8MT2 /10MT2 / 13MT2 / 15MT2)
resp. 3 (SolarMax 13MT3 / 15MT3) MPP trackers. Each tracker has two plus and minus
poles for the connection of two strings per tracker input. A string can be connected at
tracker 2 of each of the inverters SM6MT2 and SM8MT2.

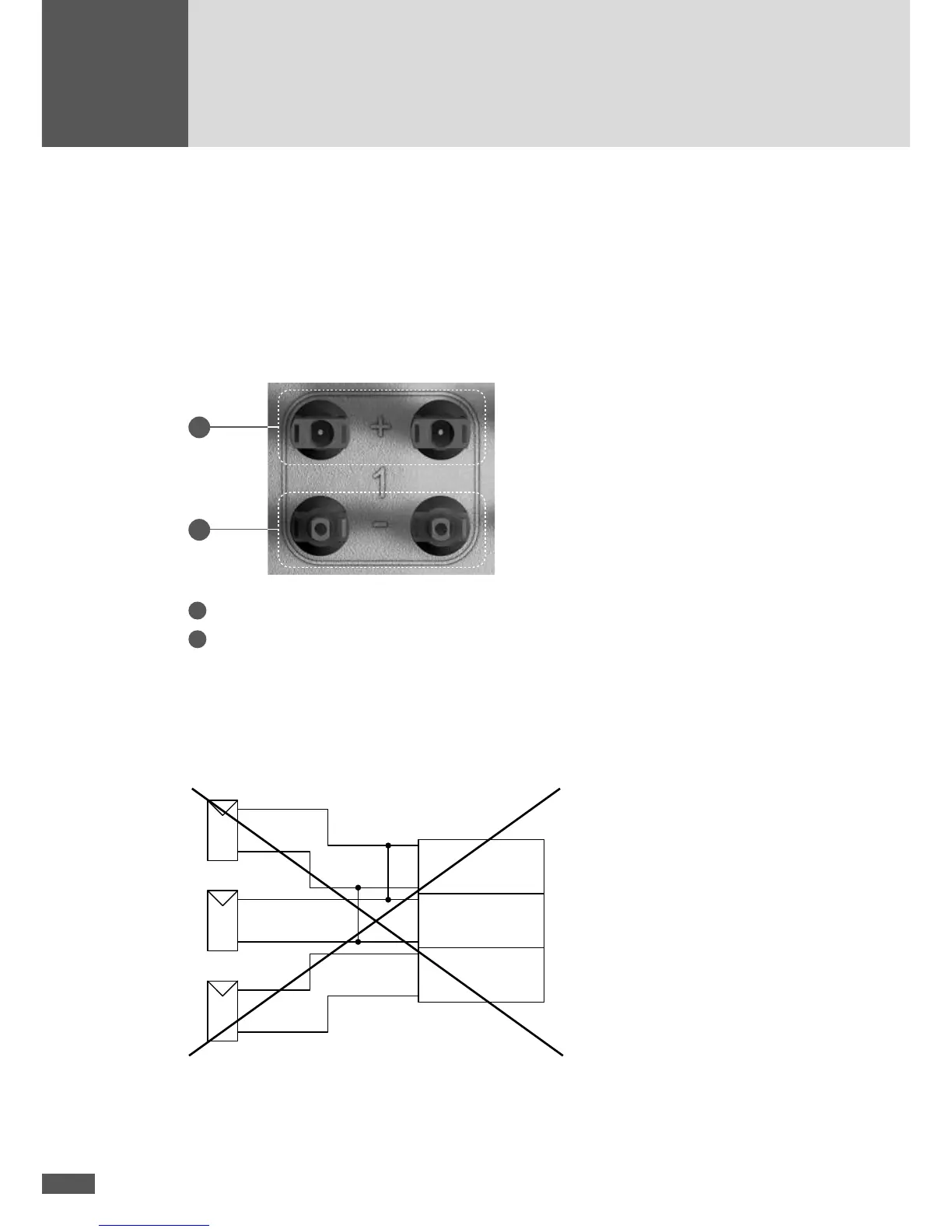

Detailed view of DC connections
1
2
1
Plus connections
2
Minus connections
The position of the plus and minus connections is identical for all DC inputs (1 to 3).
Trackers 1 to 3 operate independently of each other, thus enabling simultaneous con-
nection of strings with different characteristics (orientation, dimensioning, module type)
to a shared inverter. The plus and minus connections of different trackers must not be
connected to each other:
MPP Tracker 2
MPP Tracker 1
MPP Tracker 3
DC+
DC-
DC+
DC-
DC+
DC-
Wrong connection!
The plus and minus feed lines for trackers 1 to 3 must be run to the inverter separately
from each other:
