SolaX Power X3-ULT-15KP User Manual

156
Appendix
Parallel connection diagram
+
-
+
-
Meter/CT
Parallel 1 Parallel 1Parallel 2 Parallel 1Parallel 2
COM
Inverter
Master
Inverter
Slave
PV+ PV- Battery
PV+ PV- Battery
PE PE PE
PE
Meter
X3-
Parallel
EPS
BOX
R RS T N S T N
R S T N
R S T N
Grid EPS
Grid EPS
R
S
T
N
Three-phase
Normal Load
Three-phase
Normal Load
Single-phase
Normal Load
Single-phase
Normal Load
Single-phase
Normal Load
R
S
T
N
R
S
T
N
NLR S T N
NL
NL RSTN
Grid
R S T N
EPS
Grid

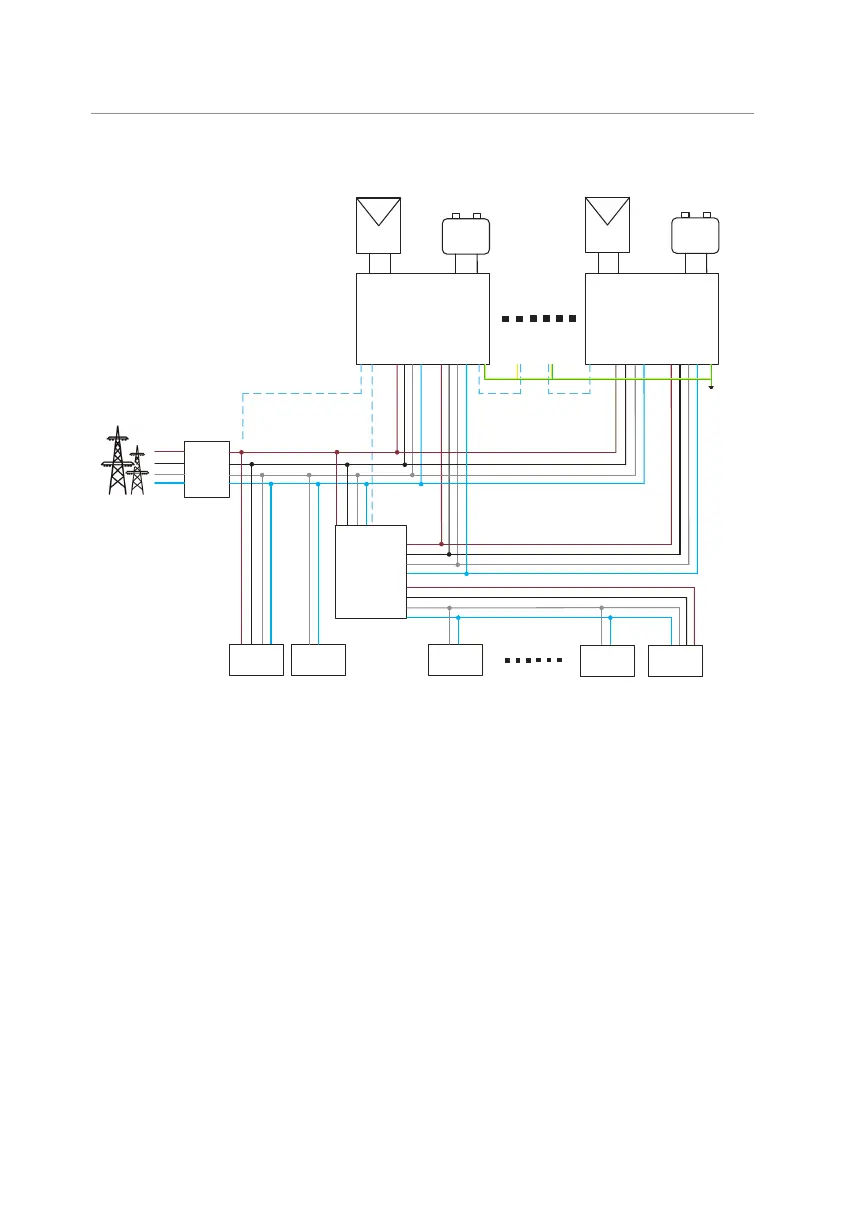

Figure 15-17 System diagram with SolaX X3-Parallel EPS BOX
