Electrical Connection
Table 7-3 EPS load information
Type of load
Equipment Start power
Resistive load
Lamp Equal to rated power
Fan Equal to rated power
Hairdryer Equal to rated power
Inductive load
Fridge 3-5 times rated power
Air conditioner 3-6 times rated power
Washing machine 3-5 times rated power
Microwave oven 3-5 times rated power
* Please refer to the nominal current of the equipment for the actual start current.
Wiring procedures
NOTICE!
• The wiring procedures will take Grid terminal connection as an example. The steps of
EPS terminal connection are the same.

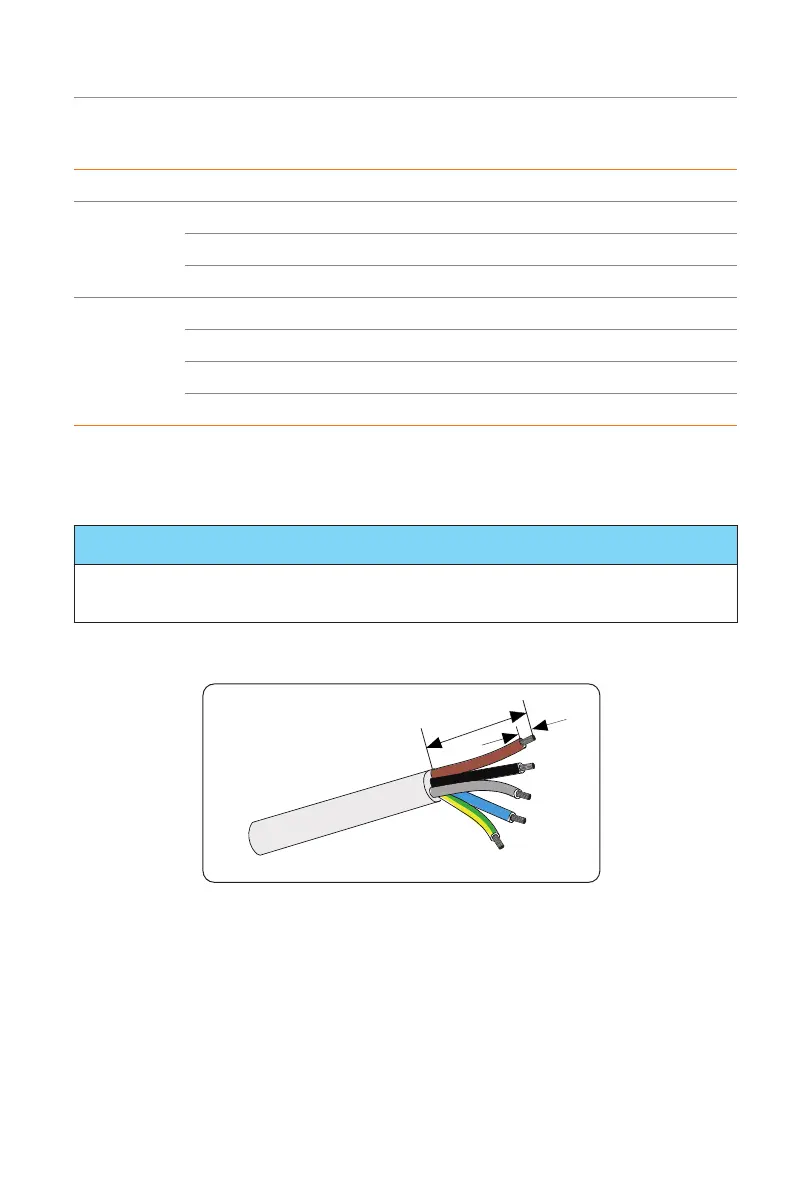

Step 1: Prepare a Grid cable (five-core wire) and strip the insulation of L1, L2, L3, N and
the grounding conductor as below.
10 mm five-core cable
58-62 mm
15-17 mm
Figure 7-8 Striping the Grid cable
Step 2: Disassemble the AC connector as below. Remove the waterproof plug which will
be no longer used.
To Next Page
