Electrical Connection
S TAT
SolaX Cloud
Router

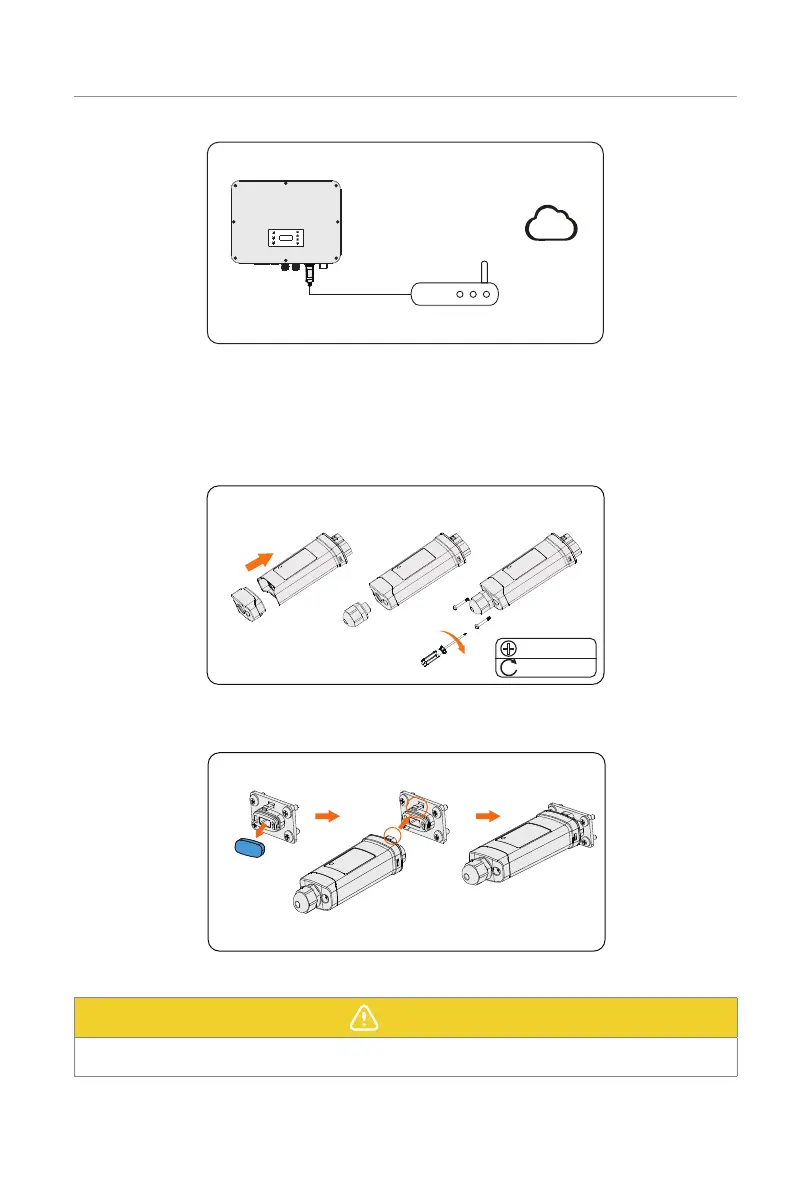

Figure 7-64 LAN mode connection diagram
Monitoring wiring procedure
Wi-Fi mode:
a. Assemble the dongle;
M2.5
0.8 ± 0.1 N·m
Figure 7-65 Assembling the dongle
b. Plug the dongle to the inverter.
Figure 7-66 Wi-Fi connection procedure
CAUTION!
• The buckles must be on the same side. Otherwise, the dongle may be damaged.
