3 Software Overview
3-6

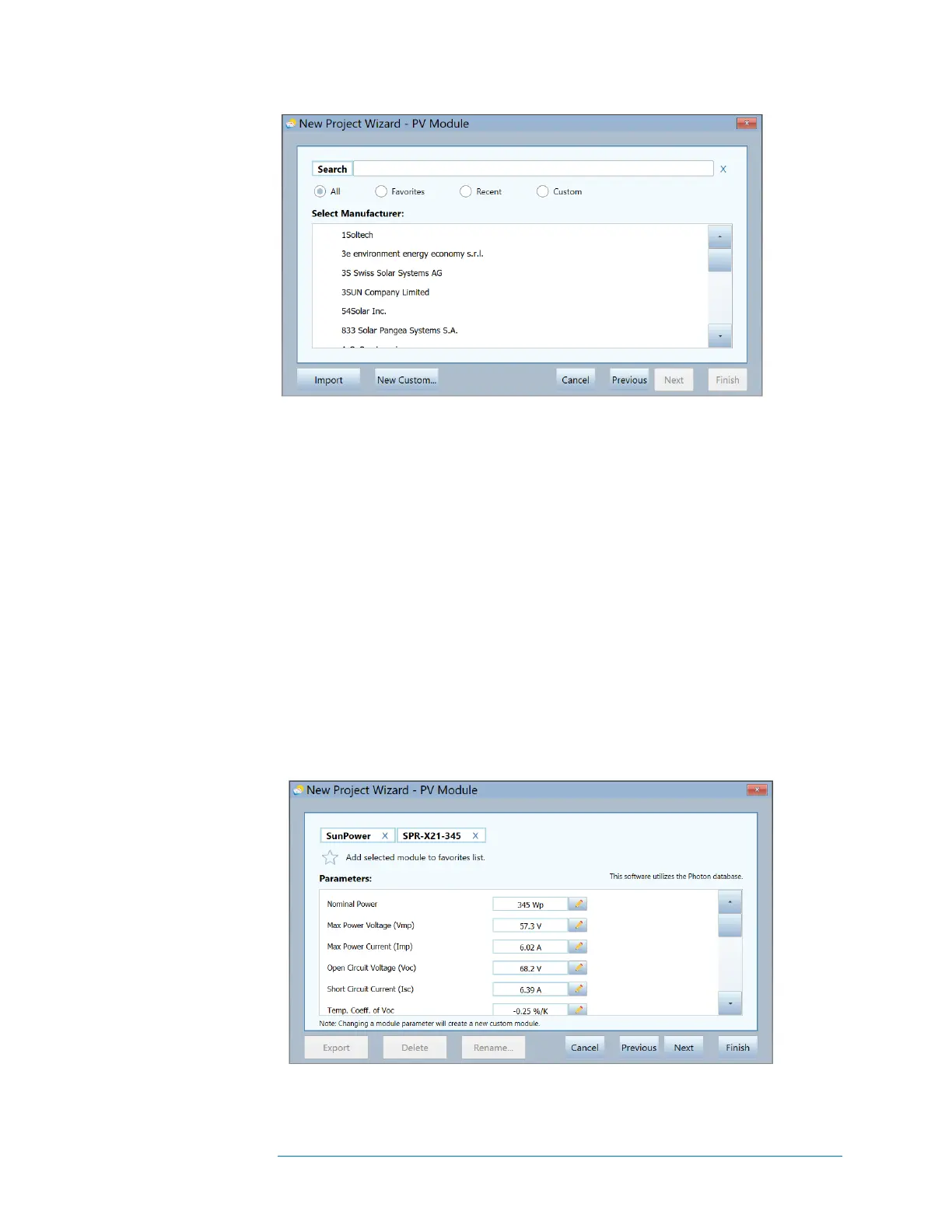

Figure 36. The PV Module screen of the New Project Wizard.
Selecting your PV Module
Selecting your PV module (Figure 36) makes the module's performance parameters
available to the Project so that the software can calculate the expected I-V curve and the
Performance Factor.
Start by typing the name of the manufacturer. When your manufacturer appears in the
short list, click on it to select it.
Then repeat that process for the model number of the PV module.
If you wish to add that module to your Favorites list, click the star icon.
After you have selected the model number, the performance parameters for that module
appear in the scrolling table, as shown in Figure 37.
Figure 37. Selection of the PV module’s manufacturer and model number, and
corresponding list of module performance parameters.
