3 Software Overview

3-23

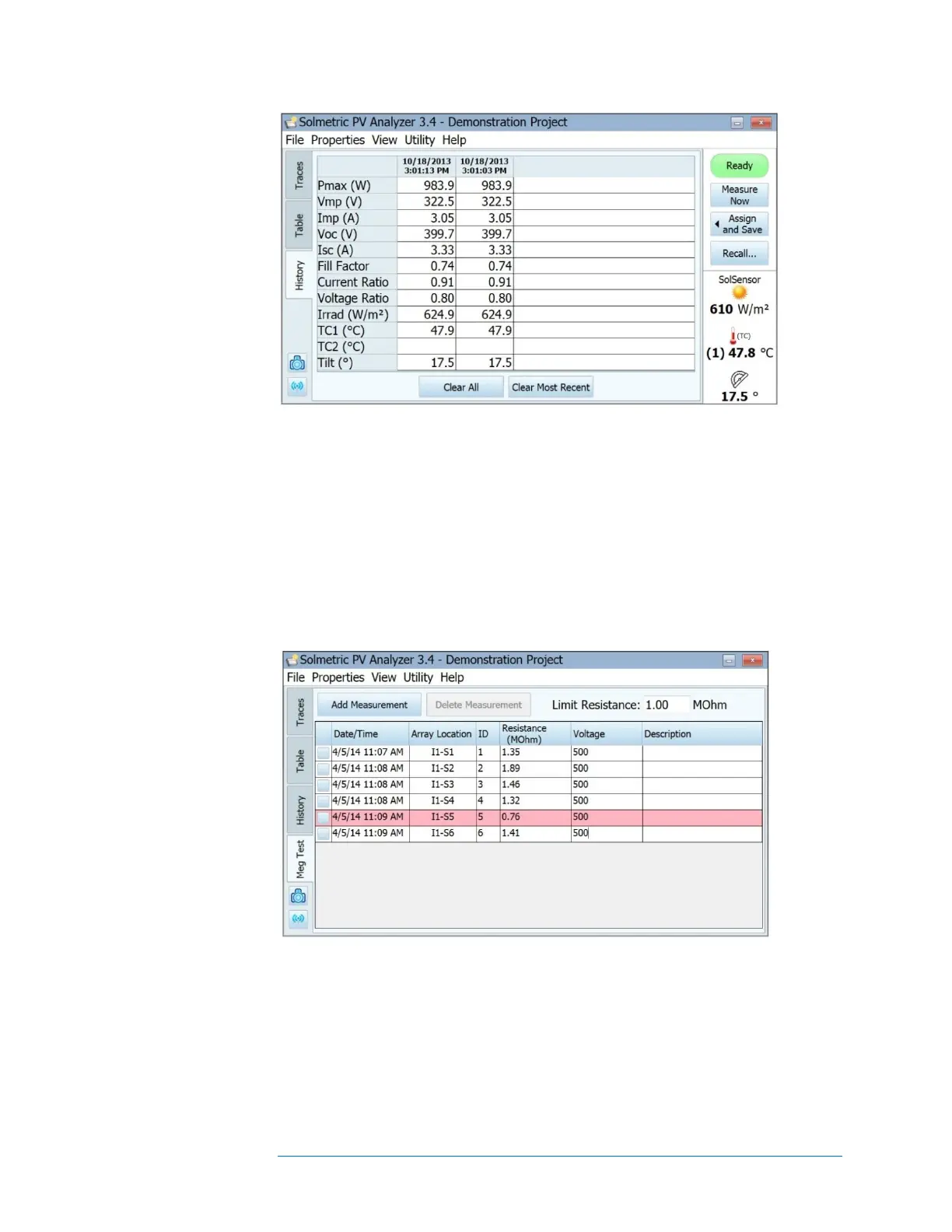

Figure 48. History tab

Meg Test Tab

This tab is used to record resistance measurement results obtained from a separate

instrument such as the Megger® MIT430 Insulation Resistance Tester. Data is entered

manually. The Meg Test tab is hidden by default. To enable this tab, use the control in the

View menu.

Figure 49. Meg Test tab
