MPI-
536
–
USER MANUAL
99
The
phase
sequence
is
incor-
rect
,
i.
e.
the
phase
s
equence
is
in
anticlockwise
direction.

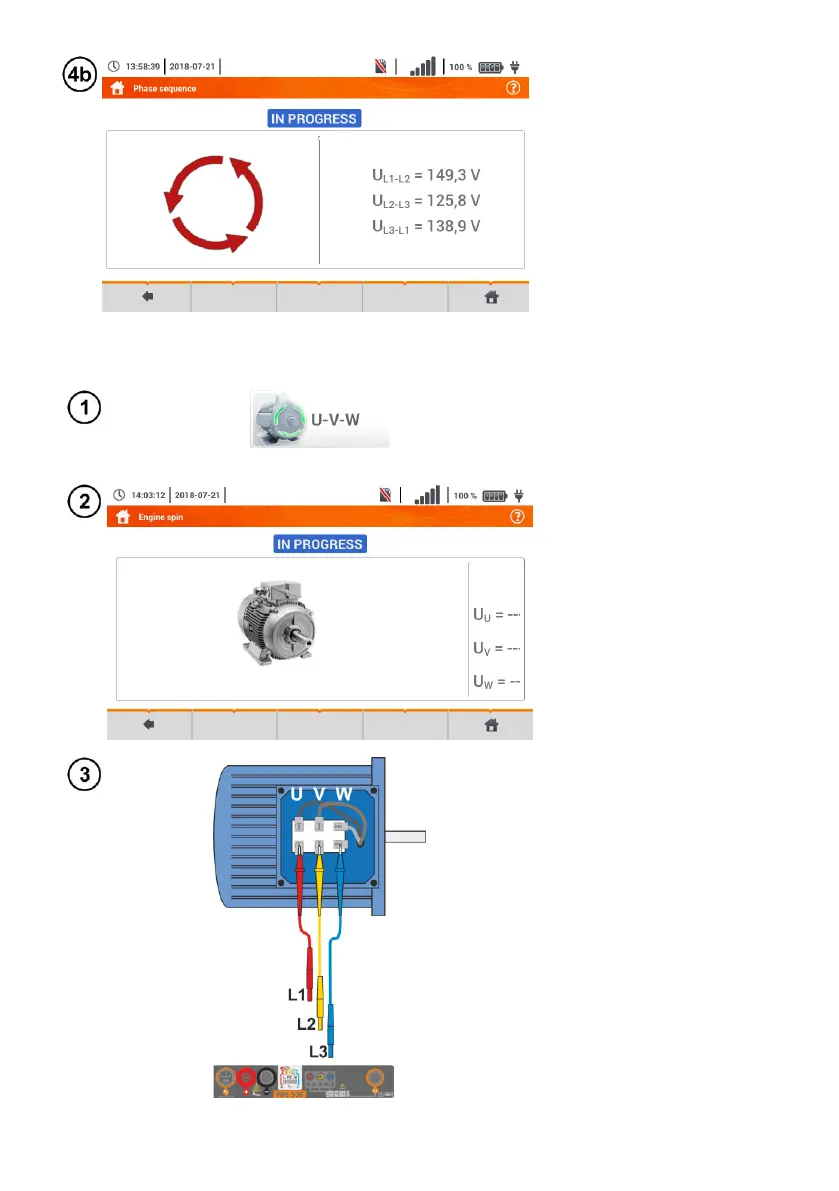

3.13
Motor rotati
on direction
Select
item
M
otor
rotations
,
to
call
up
the
measurement
screen.
The meter ready for testing.
Connect
the
meter
to
the
mo-
tor
according
to
the
drawing,
i.e.
U
terminal
do
input
L1,
V
to L2, W
to L3.
Vigorously
rotate
the
motor
shaft to the right.
100
102
Table of Contents
Table of Contents
5
Safety
8
Main Menu
9
Meter Settings
10
Setting Date and Time
11
Automatic Shutdown
12
Display Parameters
13
Settings of Measurements
14
Sub-Menu Measurement Settings
14
Sub-Menu Edit Fuses
16
Adding Fuse Characteristics
16
Adding Fuses
21
Communication
23
USB Communication
23
Connection to a Wi-Fi Network
23
E-Mail Settings
23
Update
24
Update Via USB
24
Update Via Wi-Fi
24
Regional Settings
25
Meter Information
25
Measurements
26
Diagnostics Performed by the Meter - Limits
27
Measurement of Alternating Voltage and Frequency
27
Checking the Correctness of PE (Protective Earth) Connections
28
Fault Loop Parameters
29
Settings of Measurements
29
Fault Loop Parameters in the L-N and L-L Circuits
31
Fault Loop Parameters in the L-PE Circuit
34
Fault Loop Impedance in L-PE Circuit Protected with a Residual Current Device (RCD)
37
Prospective Short-Circuit Current
40
Measurement of Fault Loop Impedance in IT Networks
41
Voltage Drop
42
Resistance-To-Earth
44
Settings of Measurements
44
Earth Resistance Measurement with 3-Pole Method (R 3P)
45
Earth Resistance Measurement with 4-Wire Method (R 4P)
49
Earth Resistance Measurement with 3-Pole Method with Additional Clamp (R E 4P)
49
Earth Resistance Measurement with 3-Pole Method with Additional Clamp (R 3P+C)
53
E 3P+C)
53
Earth Resistance Measurement with Two-Clamp Method (2C)
57
Soil Resistivity
60
Settings of Measurements
60
Main Elements of the Screen
61
Soil Resistivity Measurements (Ρ)
62
RCD Parameters
66
Settings of Measurements
66
RCD Tripping Current
69
RCD Tripping Time
72
Measurements in IT Networks
75
Automatic Measurements of RCD Parameters
76
Setting Automatic Measurements of RCD Parameters
76
Automatic Measurement of Rcds
77
Insulation Resistance
82
Settings of Measurements
82
Measurement Using Probes
85
Measurements Using UNI-Schuko Adapter (WS-03 and WS-04)
87
Measurements Using Autoiso-2500
90
Graph of Measured Quantities as a Function of Time
93
Low-Voltage Resistance Measurement
94
Resistance Measurement
94
Measurement of Resistance of Protective Conductors and Equipotential Bonding with ±200 Ma Current
96
Phase Sequence
100
Motor Rotation Direction
101
Illuminance
103
Auto Measurements
105
Proceeding Auto Measurements
105
Creating Measurement Procedures
107
Memory of the Meter
109
Memory Settings
109
Structure of the Memory
110
Fundamentals of Navigating the Memory Menu
111
Adding a New Measurements Tree
113
Entering the Measurement Result
118
Viewing Saved Measurements
119
Sharing Recorded Measurements
121
Searching the Meter Memory
122
Power Supply
123
Monitoring of the Battery Charge Status
123
Replacing Rechargeable Batteries
123
Charging the Rechargeable Batteries
124
General Rules for Using Li-Ion Rechargeable Batteries
125
Cleaning and Maintenance
126
Storage
126
Dismantling and Utilisation
126
Technical Data
127
Basic Data
127
Measurement of Alternating Voltages (True RMS)
127
Frequency Measurement
127
Measurement of Fault Loop Impedance Z
127
L-Pe , Z L-N , Z L-L
127
Measurement of Fault Loop Impedance Z
128
L-Pe[Rcd]
128
Measurement of Parameters of RCD
129
Measurement of Resistance-To-Earth R
132
Low-Voltage Measurement of Continuity of Circuit and Resistance
133
Measurement of Insulation Resistance
134
Light Measurements
135
Phase Sequence
136
Motor Rotation
136
Other Technical Data
137
Additional Data
138
Additional Uncertainties According to IEC 61557-2
138
Iso )
138
Additional Uncertainties According to IEC 61557-3 (Z)
138
Additional Uncertainties According to IEC 61557-4 (R ±200 Ma)
138
Additional Uncertainties of Earth Resistance Measurement
138
Additional Uncertainties According to IEC 61557-6 (RCD)
139
List of Reference Standards
140
Accessories
140
Positions of the Meter's Cover
141
Manufacturer
141
