MPI-536 – USER MANUAL
43
3.6.2 Earth resistance measurement with 3-pole method (R
E
3P)
The three-pole measuring method is the basic type of resistance-to-earth measurement.

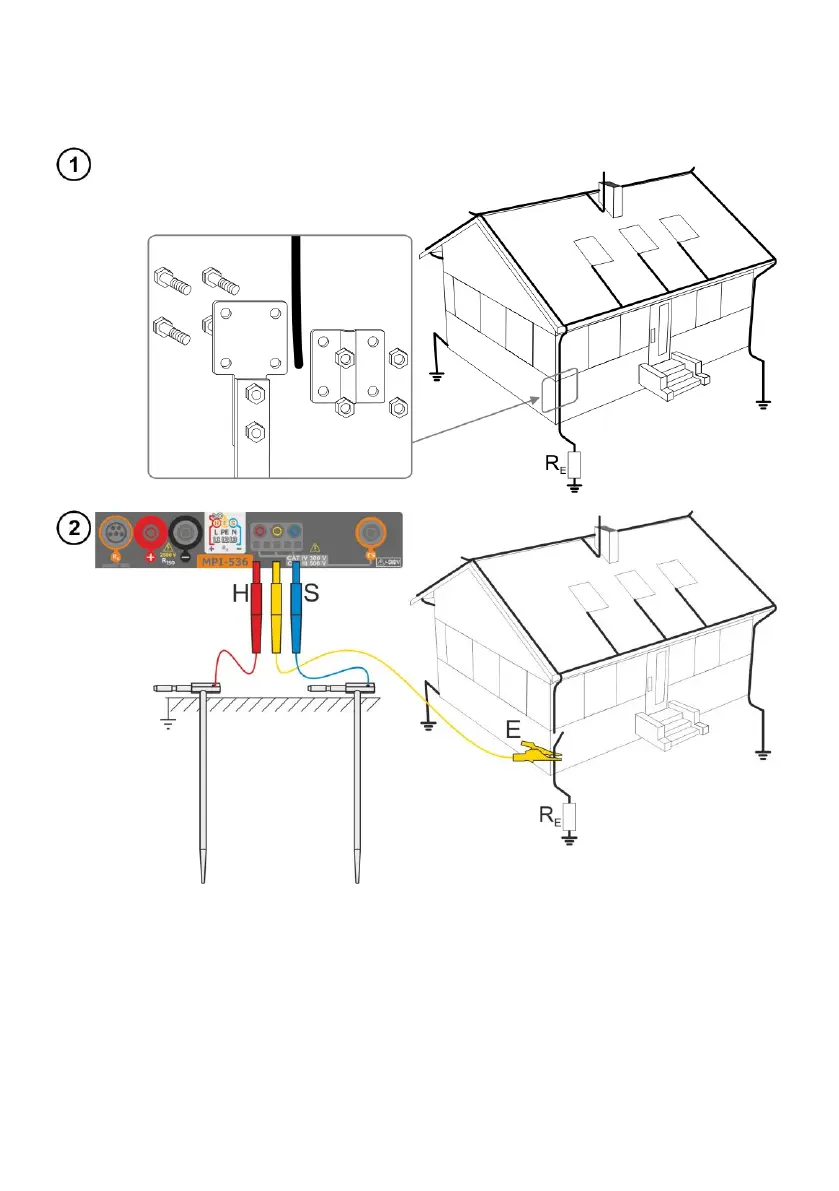

Disconnect the tested earth electrode from the installation of the facility.
 Drive the current electrode into the earth and connect to the H socket of the meter.
 Drive the voltage electrode into the earth and connect to the S socket of the meter.
 The earth electrode being tested should be connected to E socket of the meter.
 It is recommended that the tested earth electrode as well as H and S electrodes should be
located along one line and at relevant distances, in accordance with the rules of earth
measurements.
