MPI-536 – USER MANUAL
Additional information displayed by the meter
The meter is ready for measurement.
Too high voltage detected on terminals of the meter. Disconnects the ter-
minals from the test object.
Interference voltage occurs on the tested object. Measurement is possible
but may be burdened with additional uncertainty.
Current limit tripped. The symbol displayed during the measurement is ac-
companied by a continuous beep. If it is displayed after the measurement,
it means that the measurement result was obtained during operation with a
current limiting device (e.g. short circuit in the test object).

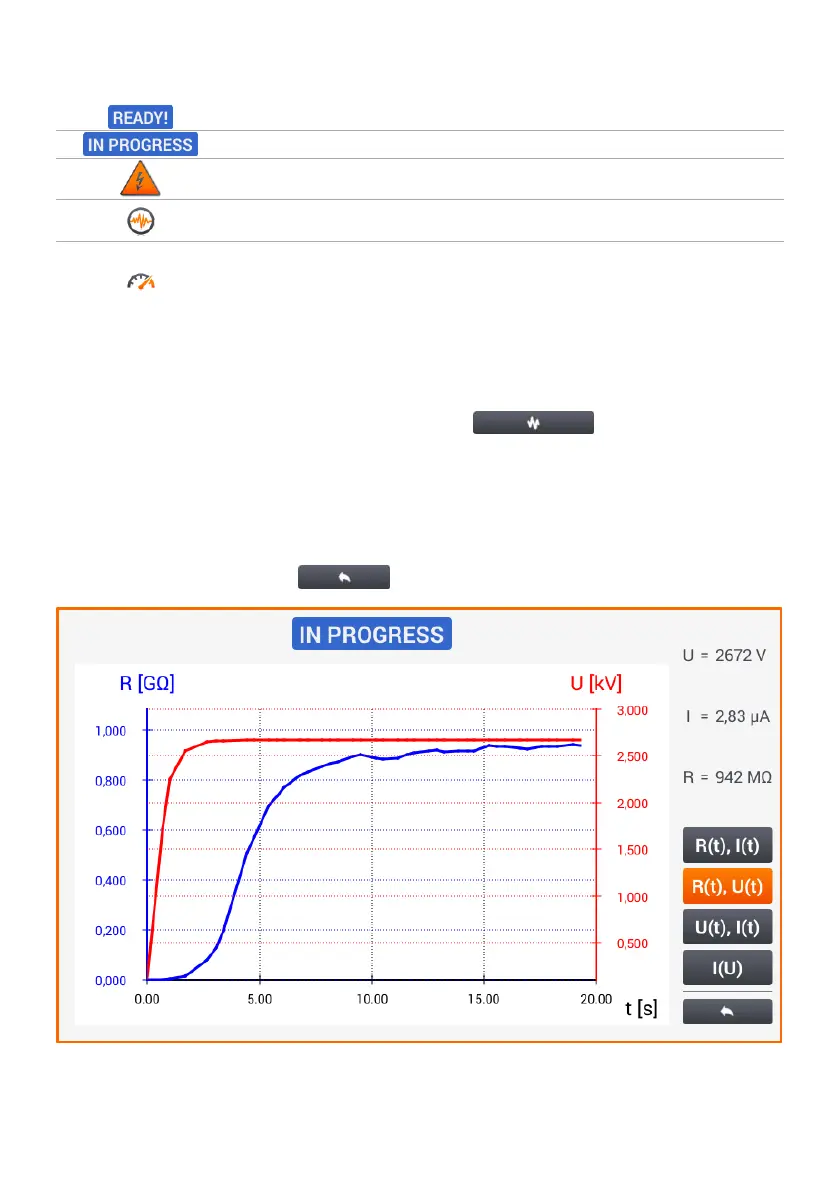

3.10.5 Graph of measured quantities as a function of time
During the measurement or after its completion, the icon may be used to open the
graph of the measured quantities as a function of time:
R(t), I(t) – resistance and current as a function of time,
R(t), U(t) – resistance and measuring voltage as a function of time,
U(t), I(t) – voltage and current as a function of time,
I(U) – current as a function of measuring voltage.
Icons displaying the waveforms of individual parameters are shown on the right side. Return to the
measurement menu with the icon .
