Read out the results.
graph
results converted to refer-
ence temperature, coeffi-
cients

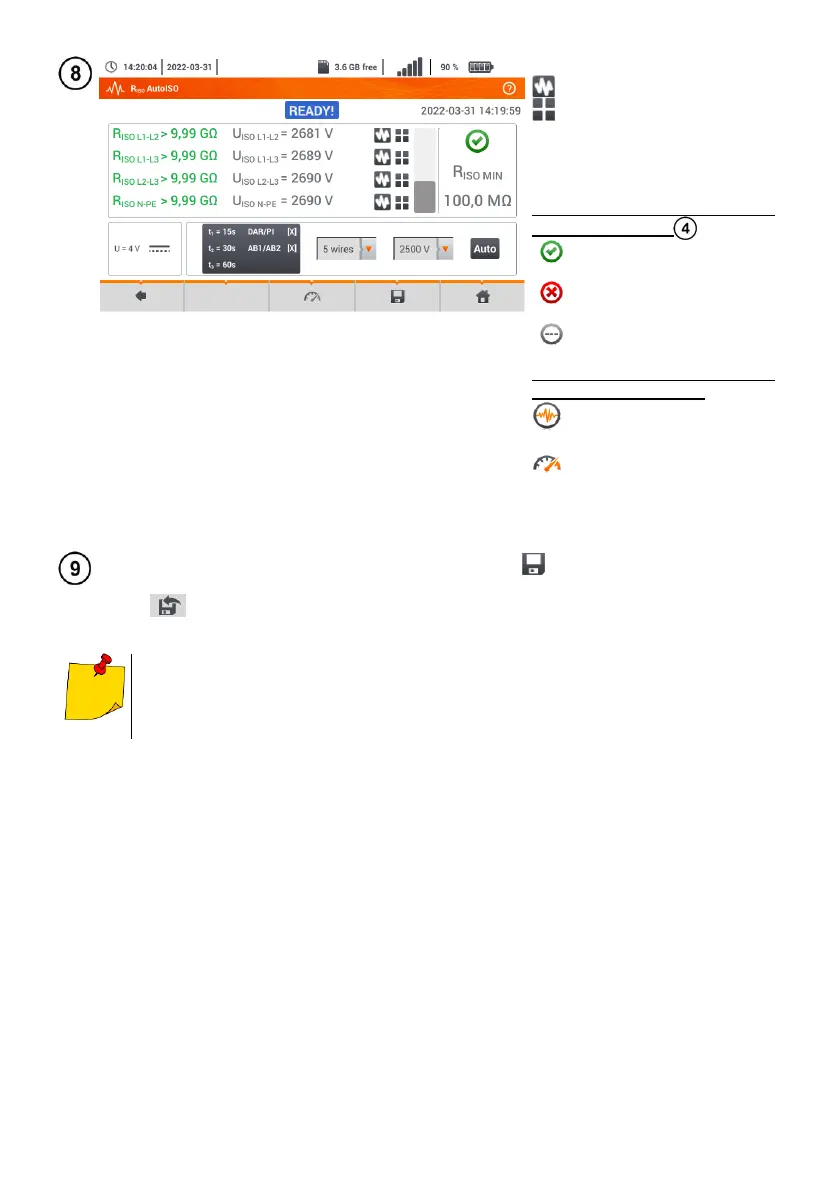

Signal lights for reaching the limit
(section 3.7.1 step )
the result is within the set
limit
the result is outside the set
limit
assessment not possible
Additional signal lights for each of
the measured lead pairs
noise – too strong interfer-
ence signal recorded
limit – measurement taken
at inverter current limit (e.g.
short circuit in the test ob-
ject)
Save the measurement to the meter memory using the icon. A detailed description of
memory management is contained in section 5.3. The last measurement can be recalled us-
ing the icon.
The meter emits a continuous audio signal until test voltage reaches 90% of the preset
value (and also when 110% of the preset value is exceeded).
After completion of measurement, the capacitance of the object tested is discharged by
shorting R
ISO
+ and R
ISO
– terminals with resistance of 100 kΩ.
