3.4.3 Fault loop parameters in the L-PE circuit
Connect test leads according to Fig. 3.1 or Fig. 3.2.

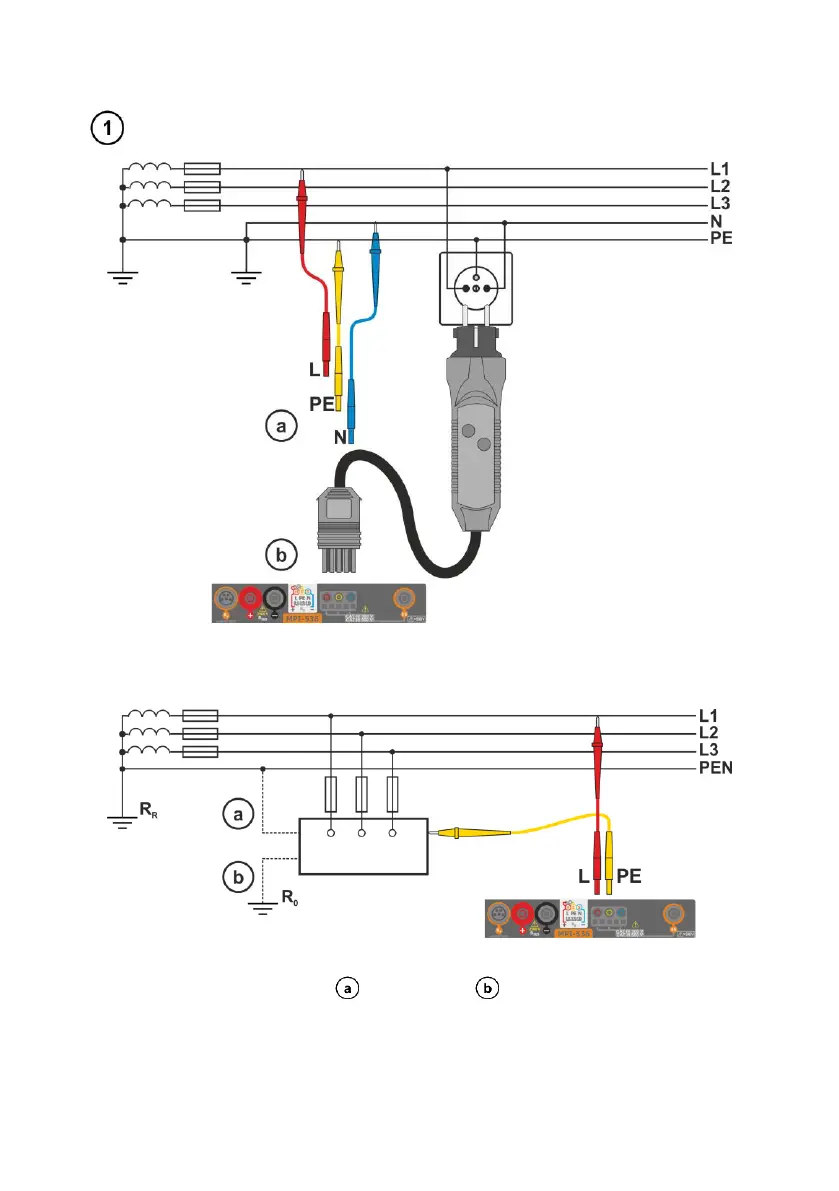

Fig. 3.1 Measurement in L-PE circuit
Fig. 3.2 Checking effectiveness of protection against electric shock of the meter housing
in case of: TN network or TT network
