3.6.3 Earth resistance measurement with 4-wire method (R
E
4P)
Four-pole method is recommended for use in the measurement of earth resistance of very small
values. It allows user to eliminate the influence of resistance of test leads on the measurement re-
sults. It is also suitable for determining the resistivity of the soil. However, it is recommended that the
dedicated function should be used for this measurement (section 3.7).

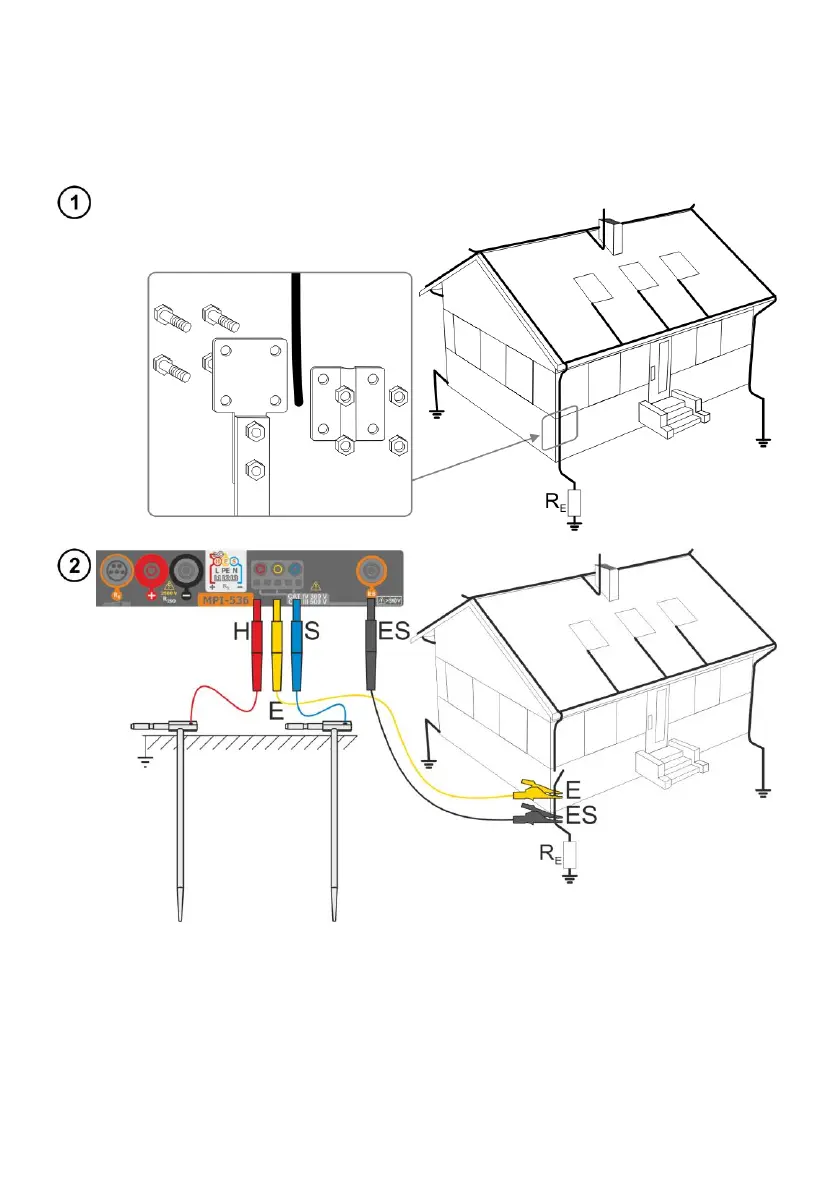

Disconnect the tested earth electrode from the installation of the facility.
 Drive the current electrode into the earth and connect to the H socket of the meter.
 Drive the voltage electrode into the earth and connect to the S socket of the meter.
 The earth electrode being tested should be connected to E socket of the meter with the lead.
 ES socket should be connected to the tested earth electrode below E lead.
 It is recommended that the tested earth electrode as well as H and S electrodes should be
located along one line and at relevant distances, in accordance with the rules of earth
measurements.
