MPI-536 – USER MANUAL
2 Main menu
The main screen is available:
after the meter has been turned on,
at any time after the icon has been selected on the display (does not apply to the re-
corder).

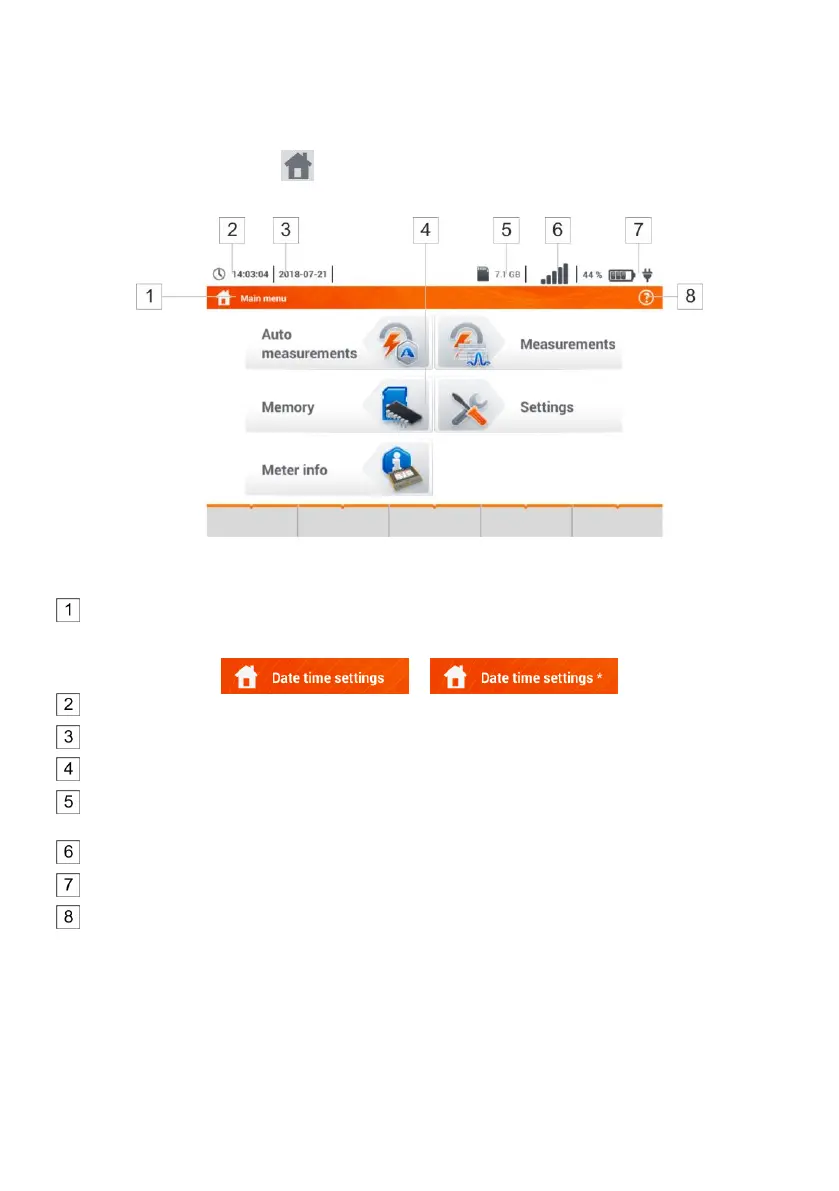

Fig. 2.1 Main elements of the screen
Name of the active menu
The fact of introducing a change that has not been saved yet is indicated by the * symbol in the
screen header.
Time
Date
Main screen
Free space on the memory card
If the card is not in the slot, the icon on the screen is crossed out.
Wireless network signal strength
Battery discharge indicator
Active menu help
Visualisation of connection systems
Explanation of icons
Touching a selected main menu item redirects to the sub-menu. Available options:
Settings – going to the settings of the main functions and parameters of the meter,
Measurements – Selecting the measurement function. The description of individual func-
tions is provided in section 3 ,
To Next Page
