3.6 Resistance-to-earth
3.6.1 Settings of measurements

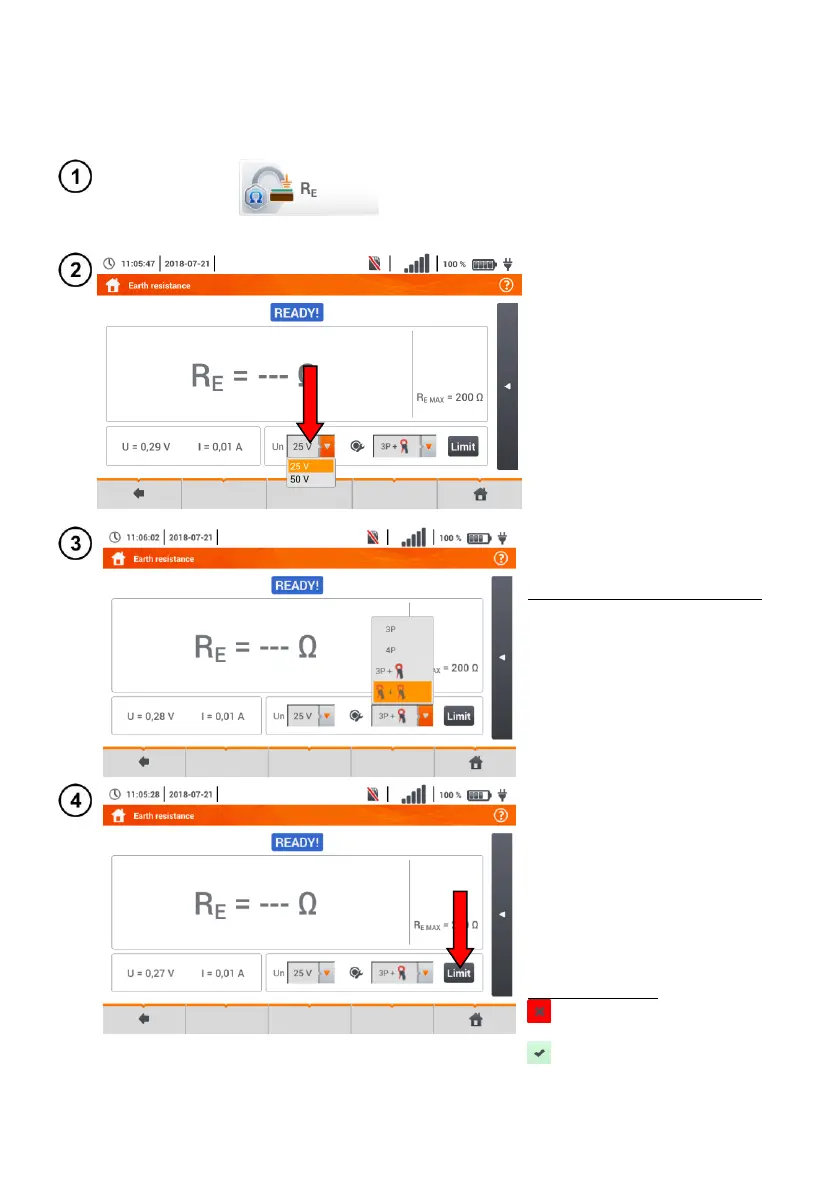

Select item R
E
.
Touch the parameter drop-down
menu Un (measuring voltage se-
lection).
Select the required measuring
voltage from the list.
Touch the drop-down menu of
measurement method selection.
Available measurement methods
 3-pole
 4-wire
 3-pole + receiving clamp
 2-clamp (transmitting + re-
ceiving clamp)
Select Limit to set the resistance
limit.
 Select unit.
 Enter the required resistance
limit value:
 0.00…1990 for Ω,
 0.00…2 for kΩ.
Functions of icons
reject changes and exit to the
previous screen
accept changes
