3.5 Voltage drop

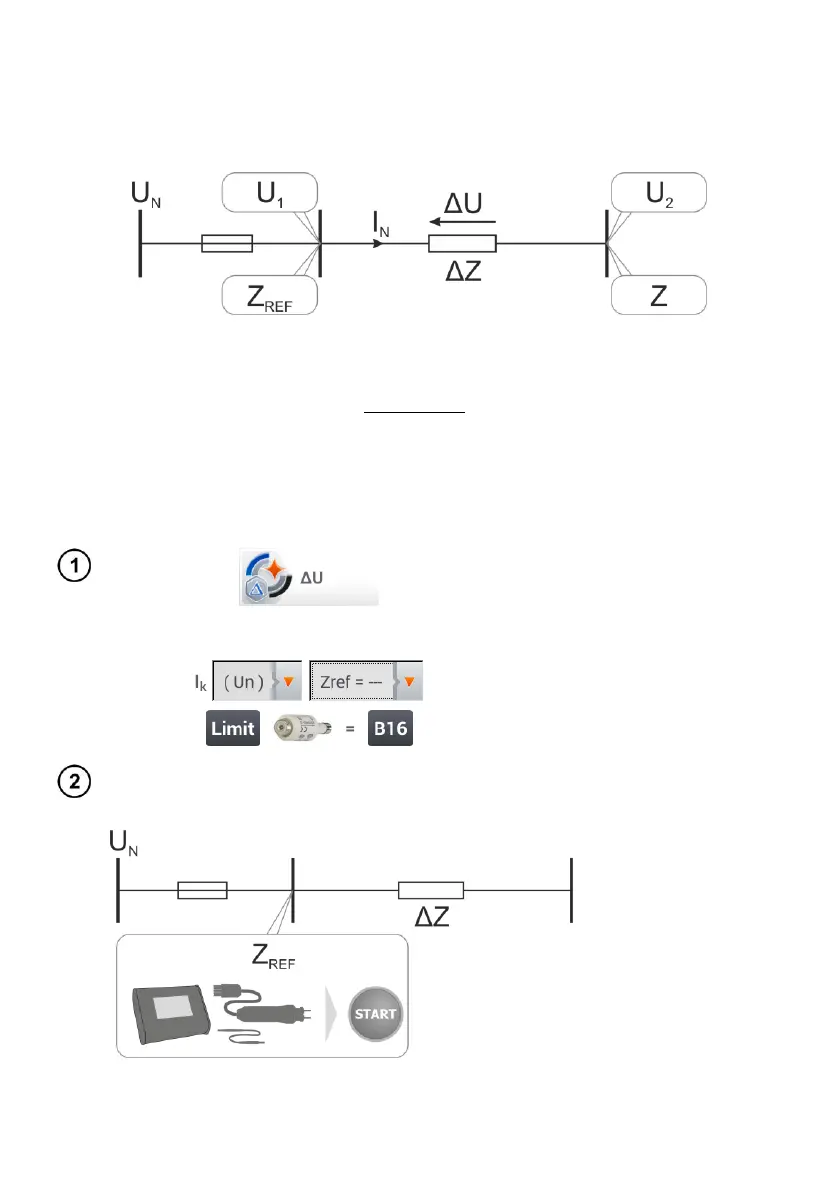

This function determines the voltage drop between two points of the tested network, selected by the
user. The test is based on measurement of fault loop impedance L-N at these points. In a standard
network, usually the voltage drop is tested between the socket and the switchgear (reference point).
The voltage drop is calculated according to the following formula:
 
%100


N
NREF
U
IZZ
U
where:
Z – fault loop impedance at the destination point,
Z
REF
– fault loop impedance at the reference point,
I
N
– rated fuse current
U
N
– rated mains voltage.
▼
 Select item ΔU.
 Use setting Zref= --- to reset
previous measurement, if it has
not been done yet.
 Enter the limit of voltage drop
ΔU
MAX
.
 Enter the fuse type, which pro-
tects the tested circuit.
 Connect the meter to the reference point of the tested network, as for Z
L-N
measurement
 Press START.
