MPI-536 – USER MANUAL

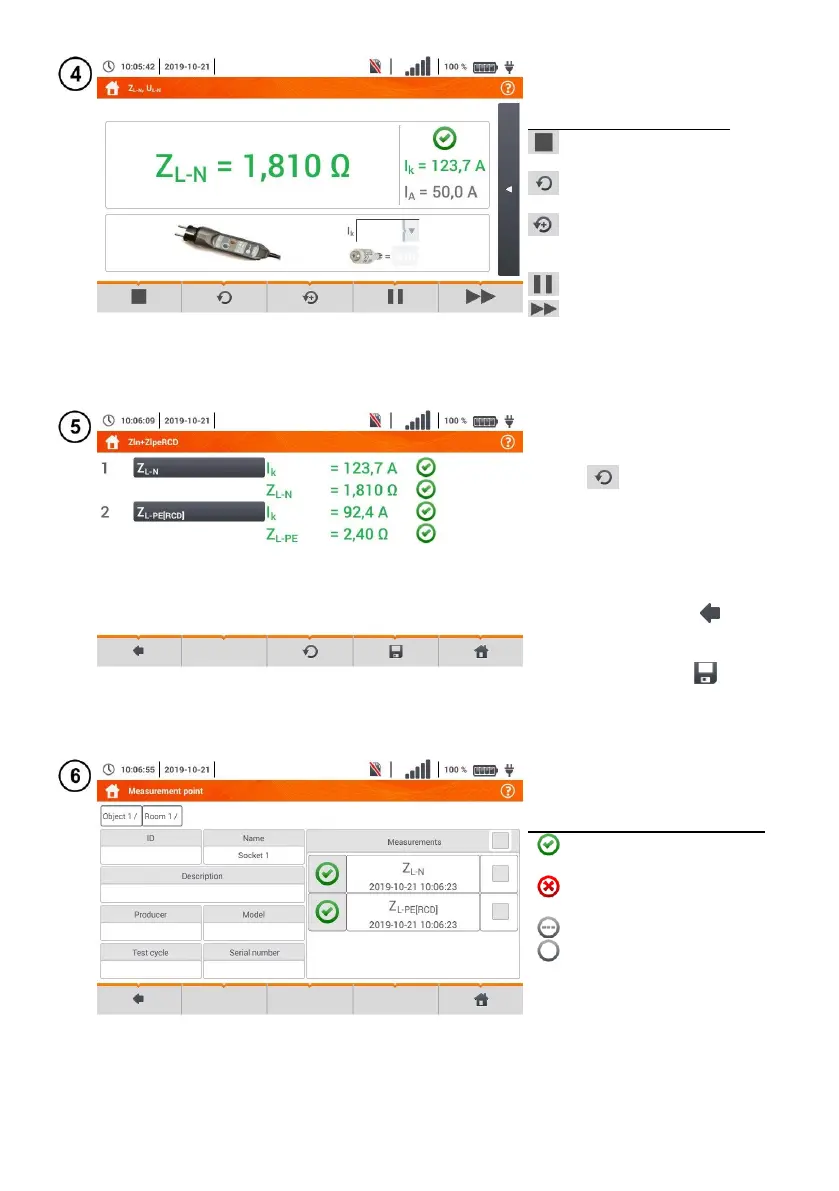

◄ The screen after completion of
one of sequence measurements.
Description of function icons
stopping the procedure and
going to summary
repeating the measurement
with overwriting its result
repeating the measurement
without losing its previous re-
sult
stopping the procedure
going to the next step of the
procedure or to the summary.
Time remaining to the next
step is set according to sec.
2.2.1.
◄ Summary screen.
The procedure can be restarted
with the icon.
Each measurement in a sequence
hides partial results. To call them,
touch the label of such meas-
urement. A window as for a single
measurement will be opened. En-
ter it with the use of the icon.
Save the measurement to the me-
ter memory using the icon. A
detailed description of memory
management is contained in sec-
tion 5.3.
All sequence measurements will
be saved in one measuring point.
Signal lights for reaching the limit
the result is within the set
limit
the result is outside the set
limit
assessment not possible
no measurement was made
