MPI-536 – USER MANUAL

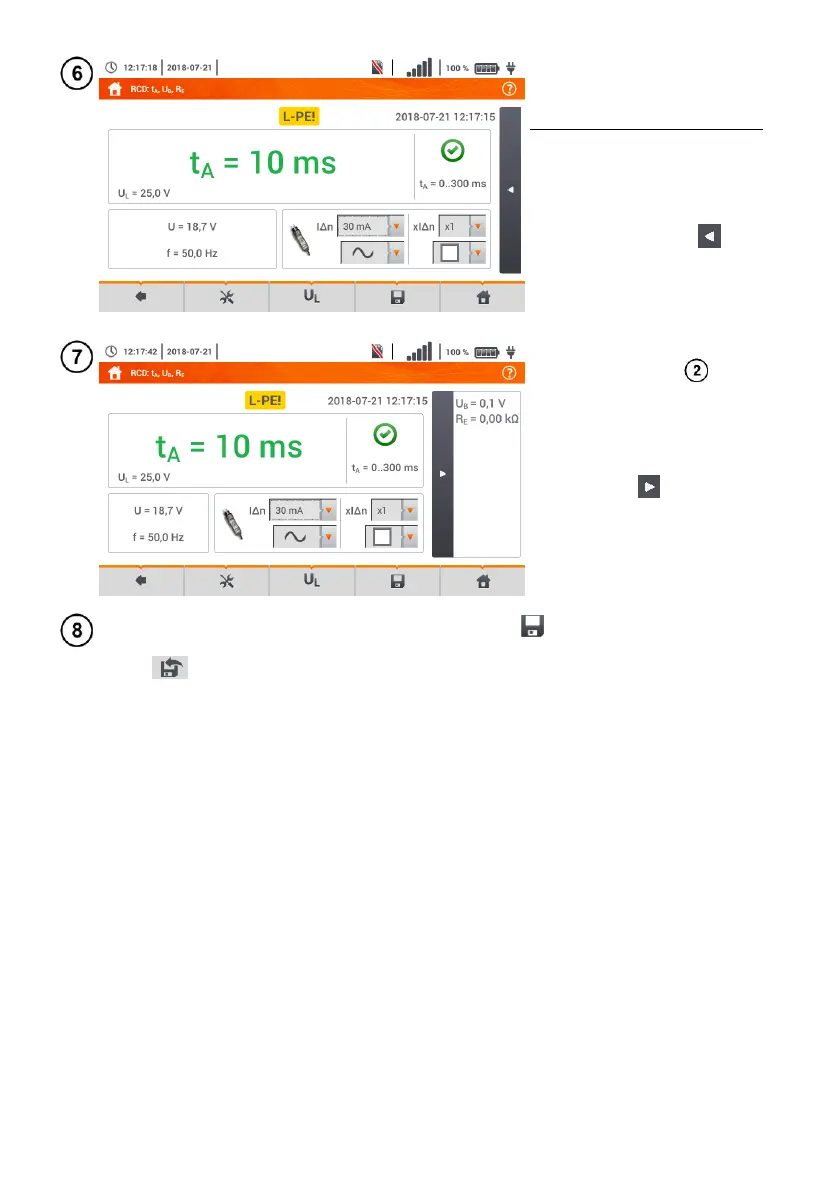

Read the result – RCD triggering
time t
A
.
Measurement result assessment
green:
t
A
≤ t
dop
red:
t
A
> t
dop
After selecting the bar on the
right side, a menu will slide out
with additional measurement re-
sults.
Depending on the selection made
in section 3.8.1 step some of
the parameters below will be dis-
played:
U
B
– voltage measured on PE,
R
E
– PE continuity.
Selecting the bar hides the
menu.
Save the measurement to the meter memory using the icon. A detailed description of
memory management is contained in section 5.3. The last measurement can be recalled us-
ing the icon.
